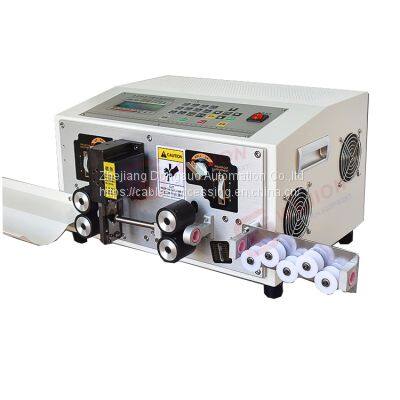

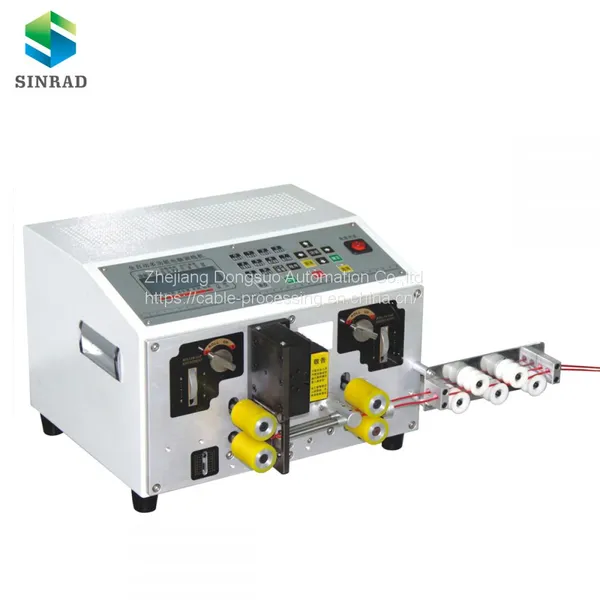

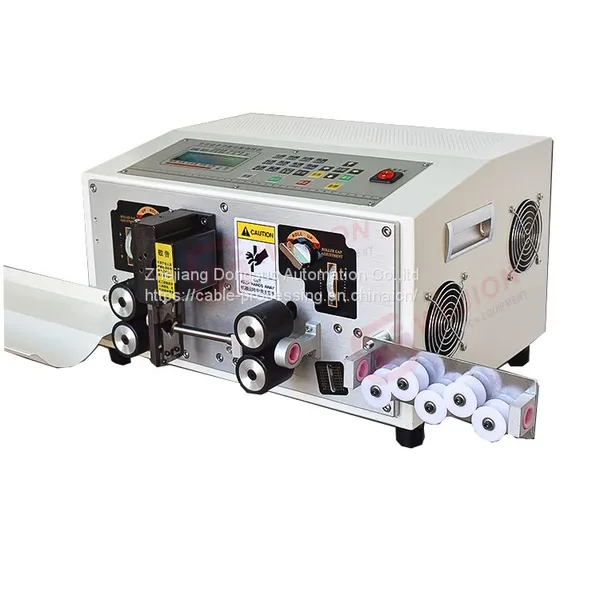

EW-05F Automatic Wire Cutter and Stripper Cable Stripping Machine

Zhejiang Dongsuo Automation Co.,ltd
EW-05F Automatic Wire Cutter and Stripper Cable Stripping Machine thumbnail-1
EW-05F Automatic Wire Cutter and Stripper Cable Stripping Machine thumbnail-2
EW-05F Automatic Wire Cutter and Stripper Cable Stripping Machine photo-1
EW-05F Automatic Wire Cutter and Stripper Cable Stripping Machine photo-2
US$ 100 - 5000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DONGSUO
Place of Origin:
China
Model Number:
EW-05F
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DONGSUO
Place of Origin China
Model Number EW-05F
Overview
Quick Details

  • Place of Origin:

  • China

  • Brand Name:

  • Eastontech

  • Model Number:

  • EW-05F

  • Usage:

  • Cutting and Stripping

  • Conductor cross-section:

  • 4 - 30 mm2 (inner conductor number ≤ 6)

  • Cutting length:

  • 1 - 99999.99 mm

  • Cutting length tolerance:

  • 0.002 * L (L = cutting length)

  • Stripping length (side I):

  • Cable jacket: 10 - 120 mm Conductor: 1 - 120 mm

  • Stripping length (side II):

  • Cable jacket: 10 - 120 mm Conductor: 1 - 80 mm

  • Maximum guide tube diameter:

  • 16 mm

  • Productivity:

  • 2300 pcs./h; 800 pcs./h (multi-conductor cable)

  • Blade material:

  • Imported high speed steel

  • Display mode:

  • 7-inch touch screen

  • Driving mode:

  • 16-wheel driving, servo tool holder
Packaging & Delivery

  • Packaging Details

  • Export Wooden Case

  • Lead Time:

  • Quantity(Sets)1 - 10>10
    Est. Time(days)7To be negotiated

  • EW-05F Automatic wire cutter and stripper cable stripping machineEW-05F Automatic wire cutter and stripper cable stripping machine

  • odel

    EW-05F

    EW-05F-1

    Conductor cross-section

    4 - 30 mm²

    4 - 30 mm²

    Core wire stripping

    2 - 7 cores

    Not available

    Cutting length

    1 - 99999.99 mm

    1 - 99999.99 mm

    Cutting length tolerance

    0.002 * L (L = cutting length)

    0.002 * L (L = cutting length)

    Stripping length (side I)

    Cable jacket: 1 - 120 mm

    Core wire: 1 - 120 mm

    1 - 120 mm

    Stripping length (side II)

    Cable jacket: 1 - 80 mm

    Core wire: 1 - 80 mm

    1 - 80 mm

    Maximum guide tube diameter

    16 mm

    16 mm

    Productivity

    600 pcs./h

    400 pcs./h (multi-conductor cable)

    700 - 750 pcs./h

    Blade material

    Imported high speed steel

    Imported high speed steel

    Display mode

    7-inch touch screen

    7-inch touch screen

    Driving mode

    16-wheel driving, servo tool holder

    16-wheel driving, servo tool holder

    Feeding mode

    By belts

    By belts

    Dimension

    795 * 490 * 500 mm

    795 * 490 * 500 mm
