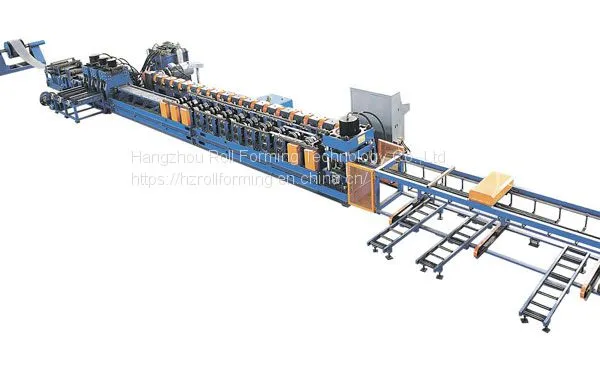

Crash Barrier Roll Forming Machine 202108
- 1000 Set / Sets per Month
Product Details
Brand Name: | HZ roll forming | Place of Origin: | China |
Product Description
The series of our crash barrier roll forming machine possess the following characteristics:
· Cassette-type machine base for multi-profile purposes: 2-wave barriers, 3-wave barriers, and standing posts for choice.
· Both underground pit and overground accumulating devices are available for choice.
· If the ground pit is not allowed, no problem! This crash barrier roll forming machine line can run without any foundations or underground pit accumulators.
· Forming Speed: 20m/min; line production speed 10-17m/min; 25-35 T/8 hours
· Certified with Multi-Patents; CE Certified, EUROPEAN quality standard
· Available prompt delivery
Suitable Coil Sheet Material for Crash Barrier Roll Forming Machine
Suitable material | hot Rolled Steel, Galvanized Steel |
Barrier Thickness | 3.0 (mm) |
Yield Strength | 230-300 (MPa) |
Width | 482/748mm as profile requests |
Production Line Components and Parameters of Crash Barrier Roll Forming Machine
1. Decoiler | 5T/8T/10T |
2. leveling device | |
3. Servo Feeding Device | |
4. Holes punching device | |
5. ground pit/ over ground accumulating unit | (optional) |
6. feeding and guiding device | |
7. Roll forming system | 10-30m/min (adjustable) |
8. post cutting device | |
9. Output Automatic Stacker: Lateral/Longitudinal | (optional) |
10. Electric control system | MITSUBISH/ SIEMENSE/AMS/Omron (optional or as requested) |
The Working Flow of Crash Barrier Roll Forming Machine
Uncoiler - Leveling device - Servo feeding device - Hole punching device - Ground pit/ over ground accumulating unit - Feeding and guiding unit - Roll Forming System - Post cutting to length - Output Automatic Stacker
How Do Crash Barriers Work?
As an integral part of the modern road system, crash barriers play an important role in keeping cars from going off the highway. On the basis of its manufacturing design, crash barriers can work at different places. Take the W-beam crash barriers as an example. The "W" shape of the crash barrier can effectively catch the bumper of the automotive and assist the vehicle in staying on the highway. As one of the mature guardrail machine manufacturers in China, Hangzhou Roll Forming Technology can provide you with high-quality crash barrier roll forming machines at reasonable prices.
Profile Drawings of Crash Barriers
Finished Crash Barrier by Crash Barrier Roll Forming Machines
Specifications of Crash Barrier Roll Forming Machine
Machine Condition | Fully New, A Grade quality |
Panel Shape | As profile drawing and customer’s requirements |
Operator needed | 1-2 people |
Power Supply | 220V/380V/415V/460V, 50/60Hz, 3P (as requests) |
Equipment Weight | About 35t |
Dimension | (L*W*H) about 30*6*2m |
LOADING SIZE | Normally need 3 x 40' (+1x20’) container. |
Equipment Color | Normally Blue/White, or as requests; |
Place of Origin | Zhejiang, China (Mainland) |
Packing | Standard and careful export packing |
