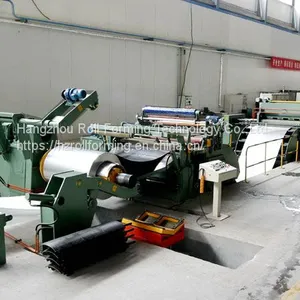

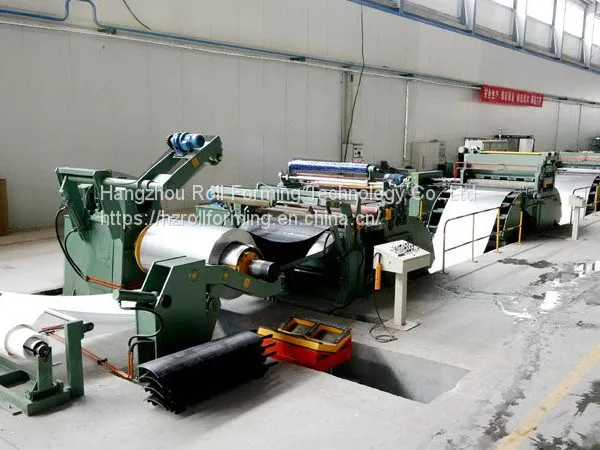

Function of Cut To Length Line
It is used for cutting steel coils into certain length sheets.
Technical parameter of Cut To Length Line
Suitable material |
Aluminum/Hot rolled/cold rolled/galvanized/stainless steel coils . |
Material thickness |
0.3-25 mm(as requests) |
Max. material width |
500-2000 mm |
Line speed |
10 – 50 m/min |
Shearing speed |
20－23 cuts/min.（length: 2000 mm） |
Shearing blade material |
Cr12MoV |
Hardness of shearing blade |
HRC 58 – 60 |
Production line Components of Cut To Length Line
· Coil car
· Decoiler
· Leading material device
· Leveling machine
· Storage structure
· Deviation-correcting device
· Servo transmission system
· Waste edge cutting device
· Re-coiler for waste strip
· Lateral cutting device
· Blowing device
· Stackmaster
· Hydraulic system and controlling system
Related information of Cut To Length Line
Machine Condition |
Fully New, A Grade quality |
Panel Shape |
As profile drawing and customer's requirements |
Operator Needed |
1-2 persons |
Power Supply |
220V/380V/415V/460V, 50/60Hz, 3P (as requests) |
Equipment Weight |
About 25 t |
Dimension |
(L*W*H) about 35*7*3m |
Loading Size |
Normally need 2-3x 40' (+ 1x 20') container |
Equipment Color |
Normally Blue/White, or as requests |
Place of Origin |
Zhejiang, China (Mainland) |
Packing |
Standard and careful export packing |
Related Products of Crash Barrier Roll Forming Machine
Related Articles
Hangzhou Roll Forming is a professional cut to length line manufacturers, we provide coil cut to length line, length cutting machine, cut to length machine for sale, roll forming machine line and etc. Want to know more? Please contact us.
