Metal Roofing Tile Former
- 100 Set / Sets per Month
- T/T
Product Description
Metal Roofing Tile Former Introduction
Metal roofing fabrication machines are used to make metal roofing tiles. This line includes a step pressing system. The system presses the panels formed by the roll forming system. The step length can be set up and the depth of each step is adjustable. Our roll forming equipment for sale is really cost-worthy.
1. The exquisite colored steel glazed tiles not only preserve the shape of traditional terracotta tiles, but also show an elegant beauty, rich and bright colors...
2. The material is light and high-strength. The weight of colored steel glazed tiles is only about one tenth of that of traditional terracotta tiles, and the strength is also unparalleled...
3. The surface of the long colored steel glazed tile has been treated with anti-corrosion and anti-rust for many times, and it is not easy to be easily oxidized, usually up to 30...
4. Water-proof color steel glazed tile slopes are seamlessly connected, the sealing performance is quite excellent, with other roof building materials unmatched...
5. Short construction time. The color steel glazed tiles are fast paved, the construction time is shortened, the price is relatively reduced, and there is no seasonal impact during construction.
Our products are of high quality among many metal roofing machines manufacturers and we have diversified metal roofing roll forming machines for sale, including the steel roof roll forming machine, metal sheet forming machine and roof rolling machine.
Features and Advantages of Metal Roofing Tile Former

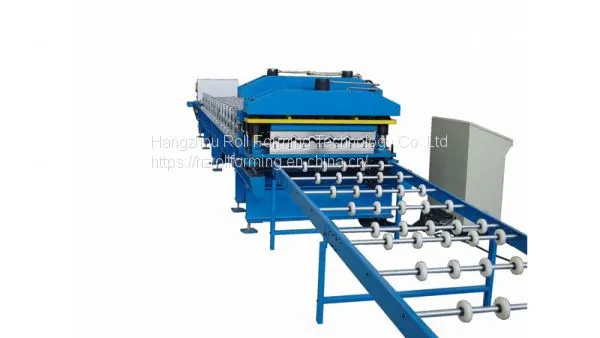

Metal roofing tile former (or metal sheet roof roll forming machine) is for continuously roll forming and pressing step tiles sheets. The step length can be set up and the depth of each step is adjustable.
Production speed: about 8 m/min.Certified with Multi-Patents; CE Certified, EUROPEAN quality standard
Most of the hot & popular profiles models, we have ready roof tile roll forming machines in stock for prompt delivery.
Sample Tile of Metal Roofing Tile Former
Popular Roofing Profile drawings of Metal Roofing Tile Former
Working Flow of Metal Roofing Tile Former
Coil Charging Car (optional)
Decoiler (passive/auto)
Front Shear(optional)
Feeding and Guiding Table
Filming Covering (optional)
Roll Forming System
Step Pressing System
Post-Cutting to length (Hydraulic)
Output Manual Supporter/Stackmaster(optional)
Step Roof Tile Line Layout
Metal Roofing Tile Former Application
Metal roof bending machine perform the elegant style of traditional roof tile and suits for every architecture design. What’s more, it is much more convenient and takes shorter time for installation.
Suitable Raw Material
Material type: Color coated Steel, Aluminum sheet
Thickness: 0.4-0.6(mm)
Yield Strength: 230-350MPa optional
Width: 1200/1220/1250(mm)
Production Line Components and Parameters
1. Decoiler | 5t/8t/10t/15t Motor/hydraulic motor/passive (optional) |
2. Filming covering device | optional |
3. Front shear | optional |
4. Lubricating device | no need |
5. Roll forming system | individual standing column structure |
6. Safety cover | optional |
7. Step pressing unit | Step length, depth, head & end length is adjustable |
8. Post cutting | hydraulic |
9. Output System | Manual supporter/ Automatic Stacker (optional) |
Stackmaster | (Output direction) Lateral/Longitudinal (optional) |
10. Hydraulic system | Power supply for decoiler /post-cutting system |
11. Electric control system | MITSUBISH/ SIEMENSE/AMS (optional or as requested) |
Related information
Machine Condition | Fully New, A Grade quality |
Panel Shape | As profile drawing and customer’s requirements |
Operator needed | 1-2 persons |
Power Supply | 220V/380V/415V/460V, 50/60Hz, 3P (as requests) |
Equipment Weight | About 15t |
Dimension | (L*W*H) about 25*3*2m |
LOADING SIZE | Normally need 1x 40' (+ 1x 20GP) container. |
Equipment Color | Normally Blue/White, or as requests; |
Place of Origin | Zhejiang, China (Mainland) |
Packing | Standard and careful export packing |
