US$ 0.1 - 50 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
China factory non brand/ SKF/ KOYO/ Timken/ INA/ NSK/ NTN
Place of Origin:
China
Model Number:
ER1038 ER1212 ER1458 ER1634 6700 6800 63800 6900 6701 6801 63801 6901 ET2015 ET2115 6702 6802 63802 6902 ET2216 ET2316 6703 6803 63803 6903 ET2418 ET2520 6704 6804 63804 6904 6705 6805 63805 6905 6706 6806 63806 6906 6707 6807 6907 6708 6808 6908 6709 6809 6909 6710 6810 6910 6811 6911 6812 6912 6813 6913 6914 6814 6915 6815 6816 6916 6817 6917 6818 6918
Contact Supplier Request Quote Chat Now
Tianjin DSR Bearing Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name China factory non brand/ SKF/ KOYO/ Timken/ INA/ NSK/ NTN
Place of Origin China
Model Number ER1038 ER1212 ER1458 ER1634 6700 6800 63800 6900 6701 6801 63801 6901 ET2015 ET2115 6702 6802 63802 6902 ET2216 ET2316 6703 6803 63803 6903 ET2418 ET2520 6704 6804 63804 6904 6705 6805 63805 6905 6706 6806 63806 6906 6707 6807 6907 6708 6808 6908 6709 6809 6909 6710 6810 6910 6811 6911 6812 6912 6813 6913 6914 6814 6915 6815 6816 6916 6817 6917 6818 6918
Number of Row Single Row
Seals Type Open/ ZZ/ RS
Precision Rating P0 P6 P5 P4
Outside Diameter 10, 150
Bore Size 5, 100

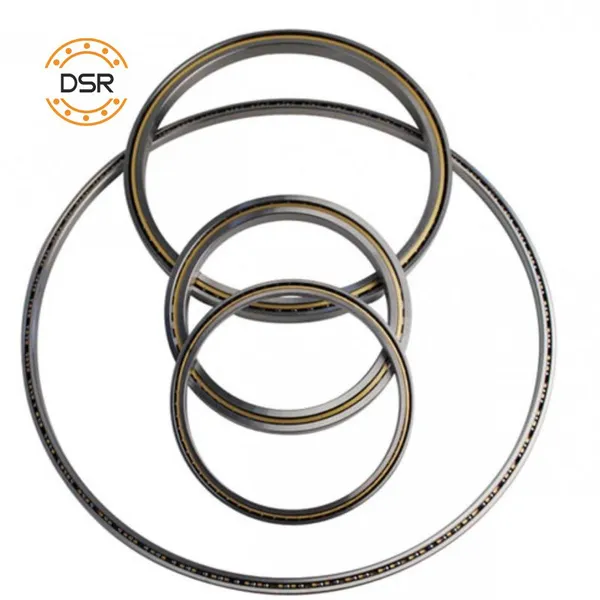

Thin Section Bearings

Some advantages of Thin-Section Ball Bearings are:

• Lightweight

• Space Saving

• High stiffness

• Accurate positioning

• Reduced overall design costs

• Can be successfully used in numerous bearing applications

• Easily modified or customized

• Multi-load capabilities

• Variety of cross-sections & sizes

• Thin-Section Ball Bearings are most often found where space limitations, combined loading, and weight restrictions pose unique design requirements.

• It also designs and manufactures special Thin-Section Ball Bearings tailored for specific applications.



Special Performance and Design Options

• ABEC 1,3,5, and 7 are available

• Race materials: 440C, 17-4PH, M50

• Ball materials: 440C, ceramic

• Separator options: Phenolic, nylon, toroid, formed wire, spacer balls, full complement, helical coil springs

• Thin Dense Chrome plating

• Special lubricants & coatings

• Special seal materials and designs for all cross-sections

• Metric sizes and extra thin cross sections available

• Duplex pairs



Bearing Model Seal type Inner diameter (d) Outer diameter (D) Width (B) Dynamic load Dynamic load Limit speed
(Cr) (Cor) (X1000 RPM)
(N) (N)
ER1038 Open 9.525mm 15.875mm 3.967mm 857 435 15
ER1212 Open 12.700mm 19.050mm 3.967mm 919 537 12
ER1458 Open 15.875mm 22.225mm 3.967mm 971 620 10
ER1634 Open 19.050mm 25.400mm 3.967mm 1010 691 8.5
6700 Open 10mm 15mm 3mm 857 435 15
6800 Open 10mm 19mm 5mm 1720 840 34
63800 Open 10mm 19mm 7mm 1720 840 34
6900 Open 10mm 22mm 6mm 2700 1270 31
6701 Open 12mm 18mm 4mm 928 532 13
6801 Open 12mm 21mm 5mm 1920 1040 30
63801 Open 12mm 21mm 7mm 1920 1040 30
6901 Open 12mm 24mm 6mm 2890 1460 28
ET2015 Open 15mm 20mm 3.5mm 943 583 11
ET2115 Open 15mm 21mm 3.5mm 937 581 11
6702 Open 15mm 21mm 4mm 937 581 11
6802 Open 15mm 24mm 5mm 2070 1260 26
63802 Open 15mm 24mm 7mm 2070 1260 26
6902 Open 15mm 28mm 7mm 4330 2550 24
ET2216 Open 16mm 22mm 4mm 971 620 10
ET2316 Open 16mm 23mm 4.5mm 971 620 10
6703 Open 17mm 23mm 4mm 999 657 9.5
6803 Open 17mm 26mm 5mm 2230 1460 24
63803 Open 17mm 26mm 7mm 2230 1460 24
6903 Open 17mm 30mm 7mm 4590 2560 22
ET2418 Open 18mm 24mm 4mm 988 654 18
ET2520 Open 20mm 25mm 4mm 1010 691 10
6704 Open 20mm 27mm 4mm 1010 722 8.5
6804 Open 20mm 32mm 7mm 4020 2460 21
63804 Open 20mm 32mm 10mm 4020 2460 21
6904 Open 20mm 37mm 9mm 6380 3680 19
6705 Open 25mm 32mm 4mm 1100 838 7
6805 Open 25mm 37mm 7mm 4300 2940 18
63805 Open 25mm 37mm 10mm 4300 2940 18
6905 Open 25mm 42mm 9mm 7010 4550 16
6706 Open 30mm 37mm 4mm 1140 947 5.5
6806 Open 30mm 42mm 7mm 4538 3402 15
63806 Open 30mm 42mm 10mm 4538 3402 15
6906 Open 30mm 47mm 9mm 7240 5010 14
6707 Open 35mm 44mm 5mm 1860 1630 4.9
6807 Open 35mm 47mm 7mm 4740 3820 13
6907 Open 35mm 55mm 10mm 10900 7750 12
6708 Open 40mm 50mm 6mm 2510 2230 4.3
6808 Open 40mm 52mm 7mm 4930 4180 12
6908 Open 40mm 62mm 12mm 13700 9920 11
6709 Open 45mm 55mm 6mm 2580 2397 4
6809 Open 45mm 58mm 7mm 6210 5380 11
6909 Open 45mm 68mm 12mm 14100 10900 10
6710 Open 50mm 62mm 6mm 2670 2650 3.5
6810 Open 50mm 65mm 7mm 6710 5760 9.5
6910 Open 50mm 72mm 12mm 14500 11700 9
6811 Open 55mm 72mm 9mm 8800 8080 8.6
6911 Open 55mm 80mm 13mm 16600 14100 8.1
6812 Open 60mm 78mm 10mm 11500 10600 7.9
6912 Open 60mm 85mm 13mm 20200 17300 7.5
6813 Open 65mm 85mm 10mm 11900 11500 7.3
6913 Open 65mm 90mm 13mm 17300 16000 7
6914 Open 70mm 100mm 16mm 23700 21200 6..4
6814 Open 70mm 90mm 10mm 11600 11800 6.8
6915 Open 75mm 105mm 16mm 24400 22600 6
6815 Open 75mm 95mm 10mm 12300 12800 6.4
6816 Open 80mm 100mm 10mm 12600 13300 6
6916 Open 80mm 110mm 16mm 24800 23900 5.7
6817 Open 85mm 110mm 13mm 18700 19000 5.6
6917 Open 85mm 120mm 16mm 31900 29600 5.3
6818 Open 90mm 115mm 13mm 18300 19500 5.3
6918 Open 90mm 125mm 18mm 32400 31600 5


Product Tags: thin section ball bearing , Pinion shaft , Stage lighting motor , bearing , ball bearing , roller bearing , bearings , ball bearings , roller bearings
