SMU-4040HA Automatic Video Measuring Machine with Keyence Laser

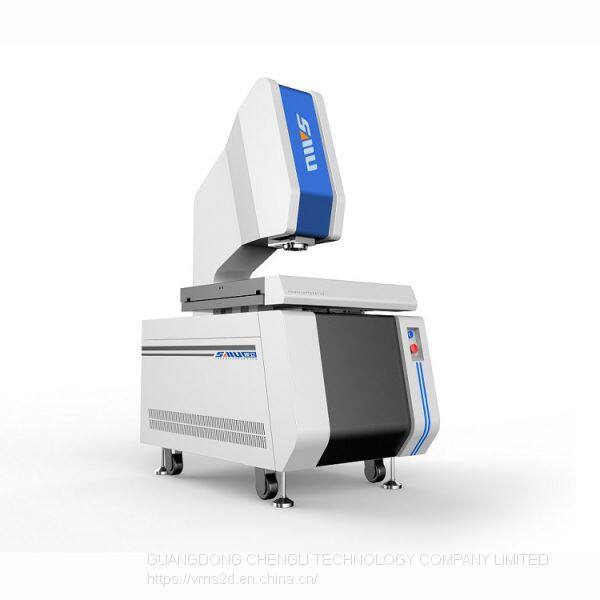

SMU-4040HA CNC Video Measuring Machine(H Series)

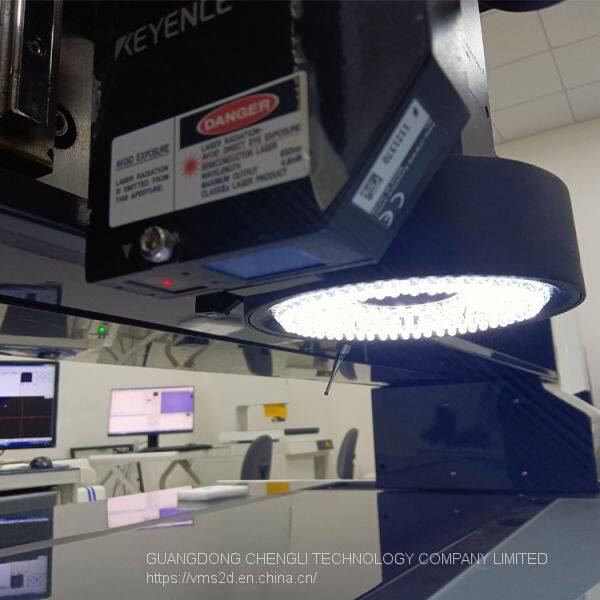

AutoScan is equipped with non-contact laser sensor to realize 3D measurement. It is widely used in non-contact measurement, and able to realize thickness, flatness and scan measurement.

Features:

* Independently research and development of full-automatic measurement software, automatic focusing, automatic edge detection, powerful programming and automatic measurement functions, easy to operate

* The machine can be operated by levers or by software programming

* Program controlled data processing is helpful for large-scale workpiece measurement

* The servo motor is controlled on the X, y and Z axes, with fast positioning speed, high accuracy and stable movement

* The self-developed embedded module control system integrates the advanced control system into the instrument to ensure a more stable operation

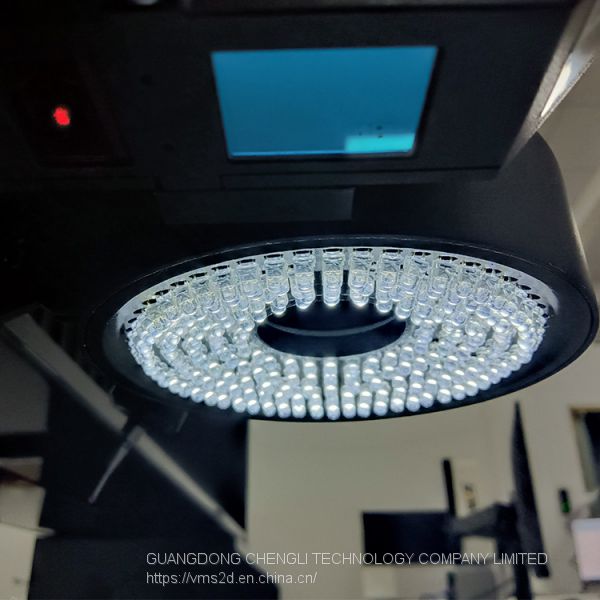

* 3 ring cold light source is suitable for the measurement of precision workpieces. The laser indicator can quickly locate the position of workpieces

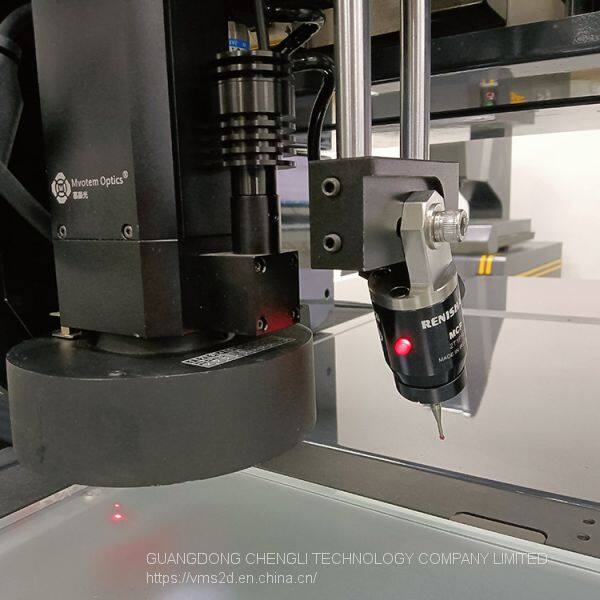

* Optional auto zoom lens, laser shifter, MCP probe for customers to choose

Application:

Widely used in mechanical, electronic, instrument, plastic and other fields of CNC video measurement system, especially in non-contact measurement, rapid batch measurement, precision workpiece measurement and other fields

Specifications:

Note: the above parameters are standard configuration. For non-standard configuration, please consult the customer service team

Note: the object view is equal to the length of the diagonal
