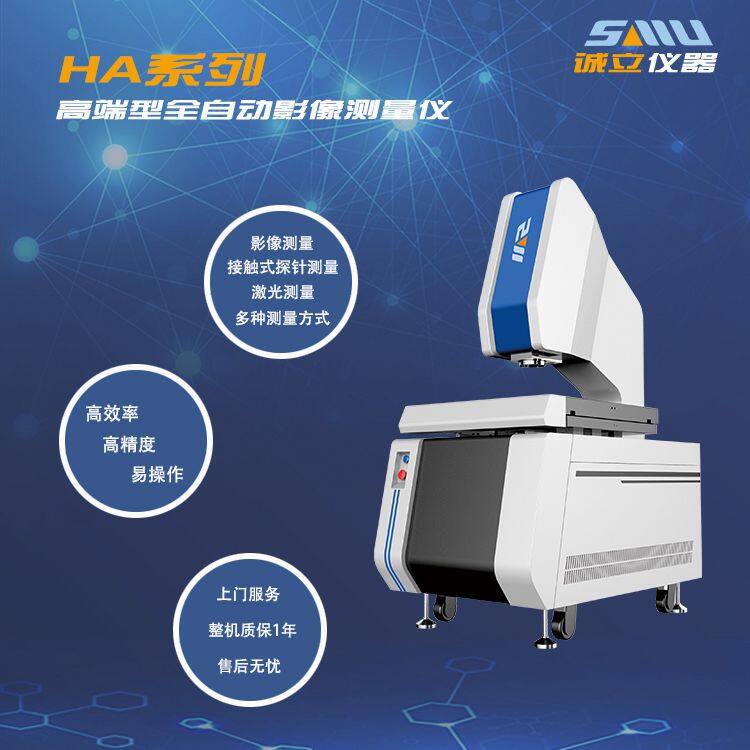

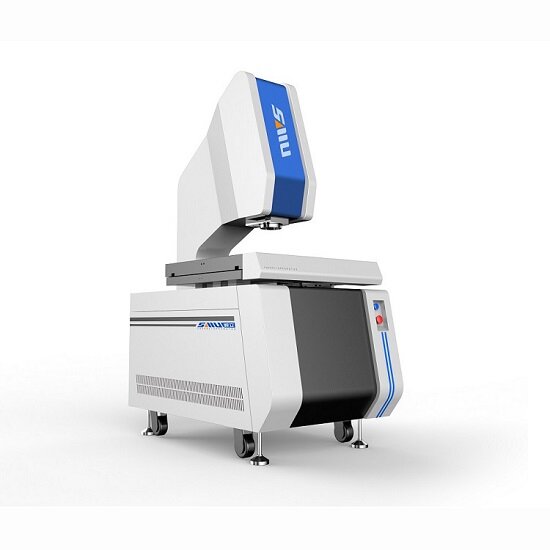

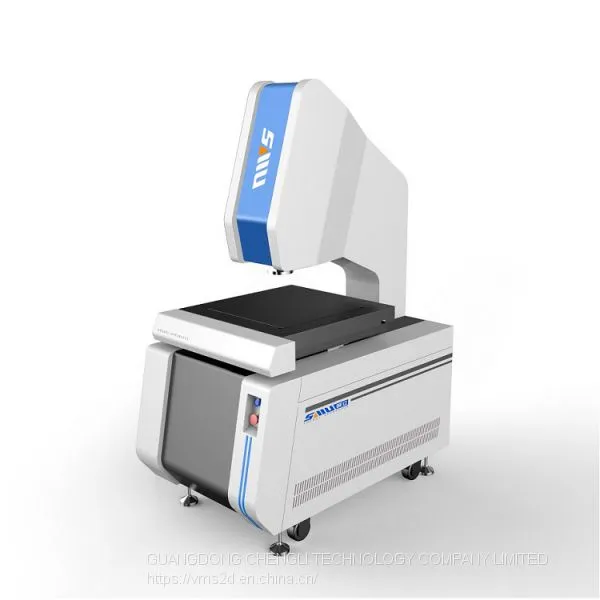

SMU-4040HA Fully automatic Vision Measuring Machine
Features:
* Independently research and development of full-automatic measurement software, automatic focusing, automatic edge detection, powerful programming and automatic measurement functions, easy to operate
* The machine can be operated by levers or by software programming
* Program controlled data processing is helpful for large-scale workpiece measurement
* The servo motor is controlled on the X, y and Z axes, with fast positioning speed, high accuracy and stable movement
* The self-developed embedded module control system integrates the advanced control system into the instrument to ensure a more stable operation

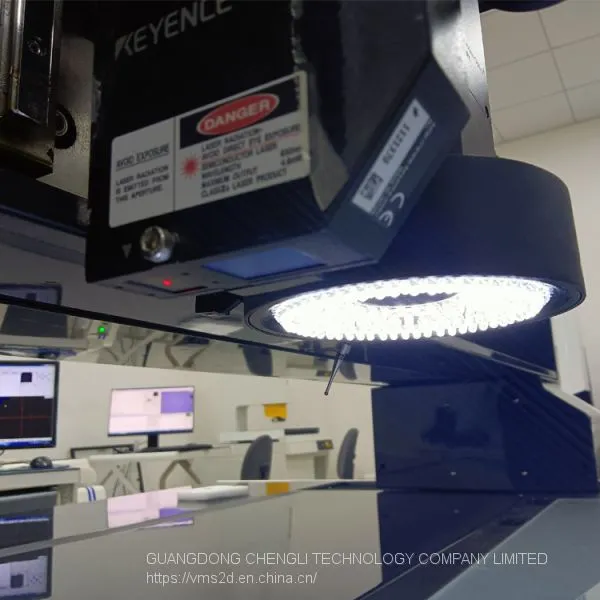

* 3 ring cold light source is suitable for the measurement of precision workpieces. The laser indicator can quickly locate the position of workpieces

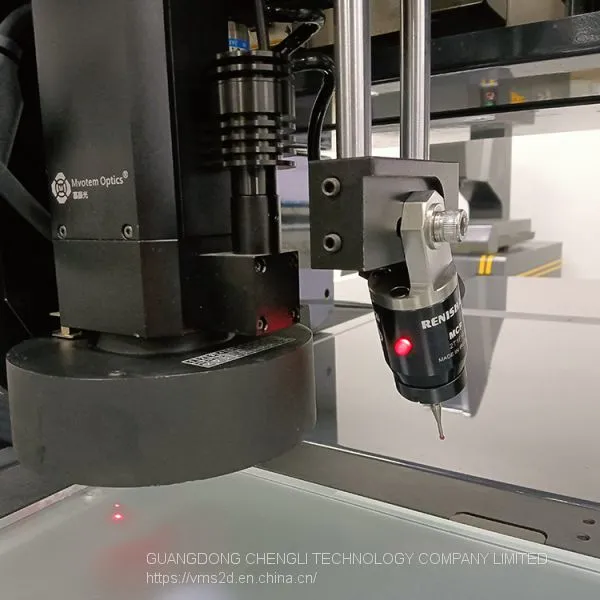

* Optional auto zoom lens, laser shifter, MCP probe for customers to choose
Application:
Widely used in mechanical, electronic, instrument, plastic and other fields of CNC video measurement system, especially in non-contact measurement, rapid batch measurement, precision workpiece measurement and other fields
Specifications:
Model |
SMU-3030HA |
SMU-4040HA |
SMU-5040HA |
|||||||
Worktable |
Marble top size (mm) |
460*460 |
560*560 |
660*560 |
||||||
Glass Worktable size (mm) |
380*380 |
480*480 |
580*480 |
|||||||
X/Y Travel (mm) |
300*300 |
400*400 |
500*400 |
|||||||
Bearing capacity of glass worktable(KG) |
25KG |
|||||||||
XY Base |
Grade 00 Ji'Nan Green Marble |
|||||||||
Weight(KG) |
300KG |
350KG |
400KG |
|||||||
Outline size(L*W*H)mm |
1230*820*1850 |
|||||||||
X,Y,Z Resolution(mm) |
0.0005(optional: 0.0001) |
|||||||||
Accuracy(μm) |
≤2.5+L/200 |
≤3+L/200 |
||||||||
Z axis Travel (mm) |
Effective stroke: 200mm, working distance: 90mm (Can be customized made to 400mm) |
|||||||||

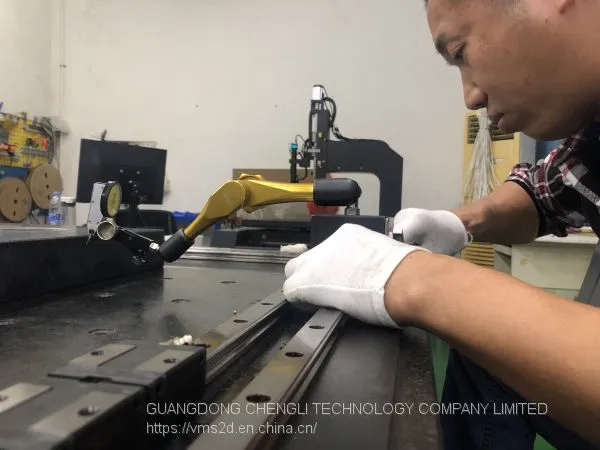

Transmission system |
P-grade precision linear guide / C5 grade grinding ball screw |
|||||||||
Driving motor |
servo motor |
|||||||||
Power Supply：AC220V/50HZ AC110V/60HZ | ||||||||||
Video system |
Camera: Gigabit Ethernet digital camera Zoom lens magnification (standard configuration): 0.7X-4.5X (optional 12:1 zoom lens magnification: 0.6X-7.2X) |
|||||||||
Image magnification: 20X-128X | ||||||||||
(optional 0.5X objective / 2X objective) | ||||||||||
Zoom lens |
0.7X～4.5X |
0.7X～4.5X |
Working distance (mm) Magnification |
|||||||
Additional lens |
Magnification |
Object view (mm) |
Magnification |
Additional lens |
||||||
0.5X(optional) |
10X～64X |
22～3.4 |
5X～32X |
0.5X(optional) |
10X～64X |
|||||
1X(standard) |
20X～128X |
11～1.7 |
10X～64X |
1X(standard) |
20X～128X |
|||||
2X(optional) |
40X～256X |
5.5～0.9 |
20X～128X |
2X(optional) |
40X～256X |
|||||
High-end industrial computer (standard configuration) |
Optional on-axis light,joystick,probe,laser shifter |
|||||||||
Note: the above parameters are standard configuration. For non-standard configuration, please consult the customer service team
Note: the object view is equal to the length of the diagonal
