SMU5040HA Precision Measuring Machine/3d Automated Image Measuring Instrument/vision Measuring System

FOB Price

US$ 139000 - 146000 / Set

1 Set(Min. Order)

Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SMU		Place of Origin	China
Model Number	SMU-5040HA

Product Description

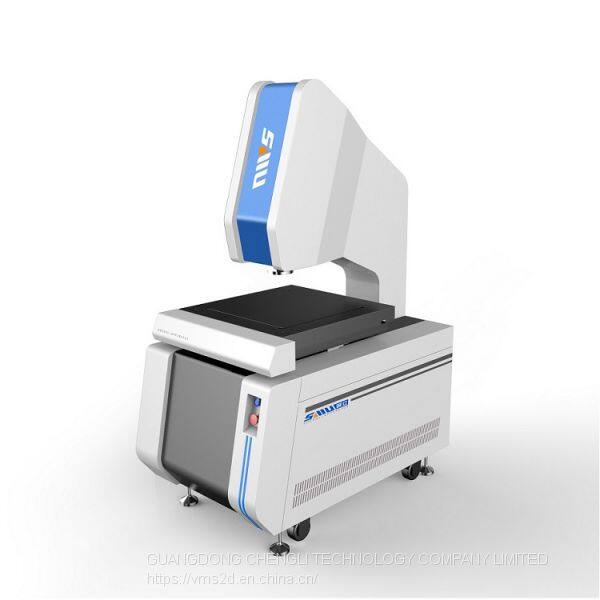

Fully automatic video measuring machine

SMU-5040HA CNC Video Measuring Machine(H Series)

Features:

* Independently research and development of full-automatic measurement software, automatic focusing, automatic edge detection, powerful programming and automatic measurement functions, easy to operate

* The machine can be operated by levers or by software programming

* Program controlled data processing is helpful for large-scale workpiece measurement

* The servo motor is controlled on the X, Y and Z axes, with fast positioning speed, high accuracy and stable movement

* The self-developed embedded module control system integrates the advanced control system into the instrument to ensure a more stable operation

* 3 ring cold light source is suitable for the measurement of precision workpieces. The laser indicator can quickly locate the position of workpieces

* Optional auto zoom lens, laser shifter, MCP probe for customers to choose

Application:

Widely used in mechanical, electronic, instrument, plastic and other fields of CNC video measurement system, especially in non-contact measurement, rapid batch measurement, precision workpiece measurement and other fields

Specifications:

Model					SMU-3030HA		SMU-4040HA		SMU-5040HA
Worktable	Marble top size (mm)				460*460		560*560		660*560
	Glass Worktable size (mm)				380*380		480*480		580*480
	X/Y Travel (mm)				300*300		400*400		500*400
Bearing capacity of glass worktable(KG)					25KG
XY Base					Grade 00 Ji'Nan Green Marble
Weight(KG)					300KG		350KG		400KG
Outline size(LWH)mm					12308201850
X,Y,Z Resolution(mm)					0.0005(optional: 0.0001)
Accuracy(μm)					≤2.5+L/200				≤3+L/200
Z axis Travel (mm)					Effective stroke: 200mm, working distance: 90mm (Can be customized made to 400mm)
Transmission system					P-grade precision linear guide / C5 grade grinding ball screw
Driving motor					servo motor
Power Supply：AC220V/50HZ AC110V/60HZ
Video system		Camera: Gigabit Ethernet digital camera Zoom lens magnification (standard configuration): 0.7X-4.5X (optional 12:1 zoom lens magnification: 0.6X-7.2X)
		Image magnification: 20X-128X
		(optional 0.5X objective / 2X objective)
Zoom lens			0.7X～4.5X			0.7X～4.5X				Working distance (mm) Magnification
Additional lens			Magnification	Object view (mm)		Magnification		Additional lens
0.5X(optional)			10X～64X	22～3.4		5X～32X		0.5X(optional)		10X～64X
1X(standard)			20X～128X	11～1.7		10X～64X		1X(standard)		20X～128X
2X(optional)			40X～256X	5.5～0.9		20X～128X		2X(optional)		40X～256X
High-end industrial computer (standard configuration)						Optional on-axis light,joystick,probe,laser shifter

Note: the above parameters are standard configuration. For non-standard configuration, please consult the customer service team

Note: the object view is equal to the length of the diagonal
