Home > Transportation > Train & Railway > Railway Supplies > Type WJ-7 RAI FASTENING SYSTEM(Rail Fastener) for High-Speed Railway Track Fixing

Type WJ-7 RAI FASTENING SYSTEM(Rail Fastener) for High-Speed Railway Track Fixing

Anyang Railway Equipment Co., Ltd

Type WJ-7 RAI FASTENING SYSTEM(Rail Fastener) for High-Speed Railway Track Fixing thumbnail-1

Type WJ-7 RAI FASTENING SYSTEM(Rail Fastener) for High-Speed Railway Track Fixing thumbnail-2

Type WJ-7 RAI FASTENING SYSTEM(Rail Fastener) for High-Speed Railway Track Fixing thumbnail-3

Type WJ-7 RAI FASTENING SYSTEM(Rail Fastener) for High-Speed Railway Track Fixing thumbnail-4

Type WJ-7 RAI FASTENING SYSTEM(Rail Fastener) for High-Speed Railway Track Fixing thumbnail-5

Type WJ-7 RAI FASTENING SYSTEM(Rail Fastener) for High-Speed Railway Track Fixing photo-1

Type WJ-7 RAI FASTENING SYSTEM(Rail Fastener) for High-Speed Railway Track Fixing photo-2

Type WJ-7 RAI FASTENING SYSTEM(Rail Fastener) for High-Speed Railway Track Fixing photo-3

Type WJ-7 RAI FASTENING SYSTEM(Rail Fastener) for High-Speed Railway Track Fixing photo-4

Type WJ-7 RAI FASTENING SYSTEM(Rail Fastener) for High-Speed Railway Track Fixing photo-5

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Place of Origin:

China

Model Number:

Type WJ-7 Rail Fastening System

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Any Chinese Seaport

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name AT

Place of Origin China

Model Number Type WJ-7 Rail Fastening System

Type Other

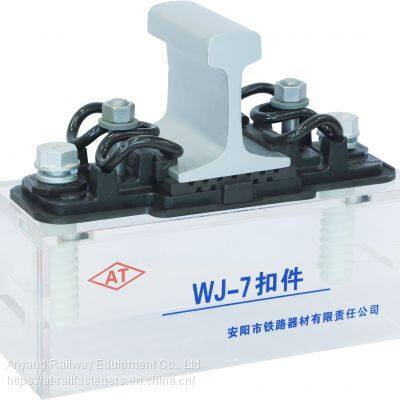

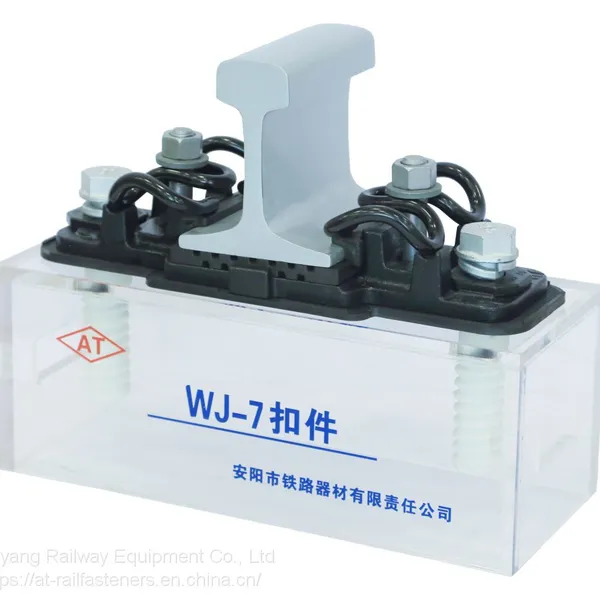

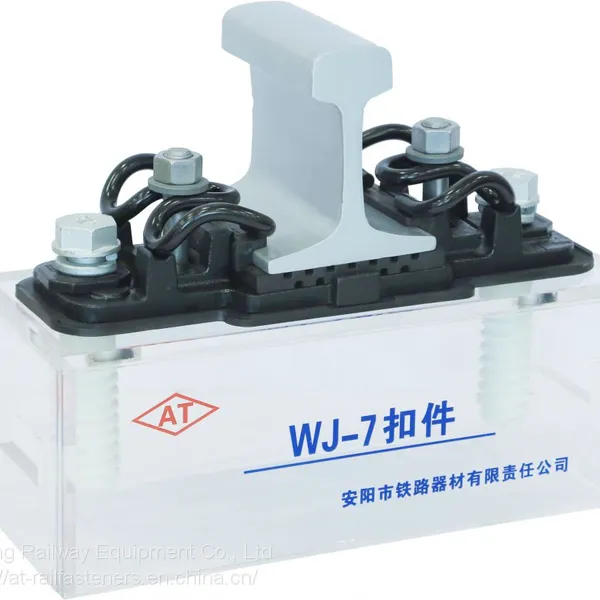

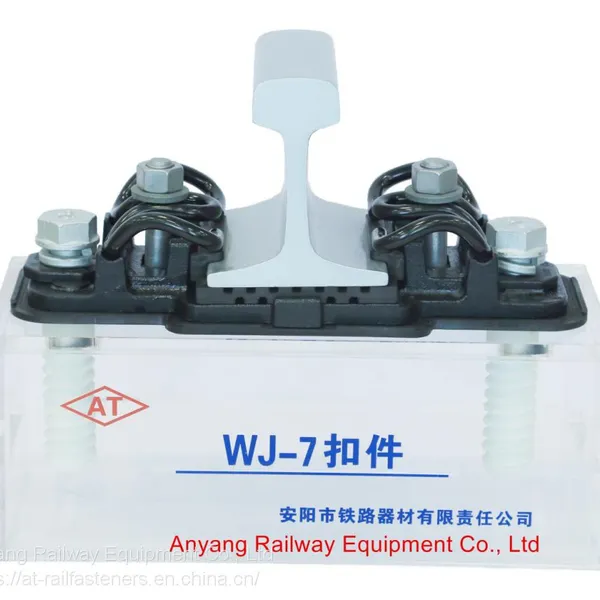

Type WJ-7 Rail Fastening System is a type of ballastless track fastener system developed to meet the technical requirements of the passenger dedicated line fastener system to adapt to the laying of various shoulderless and ballastless tracks. It is based on optimization of the original WJ-1 type and WJ-2 type ballastless track fastener system. The fastener system can be used in sleeper embedded (double-block sleepers and long sleepers) and slab ballastless tracks on bridges, tunnels and subgrades.

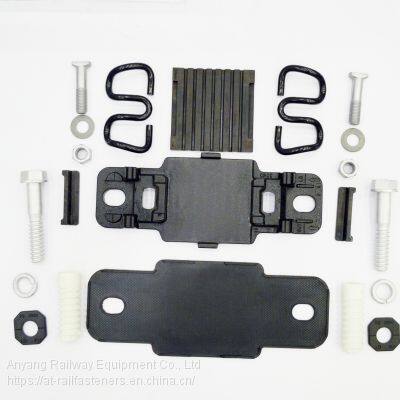

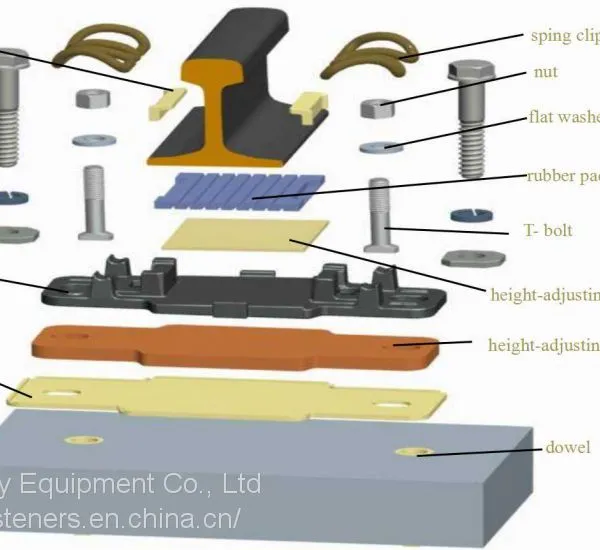

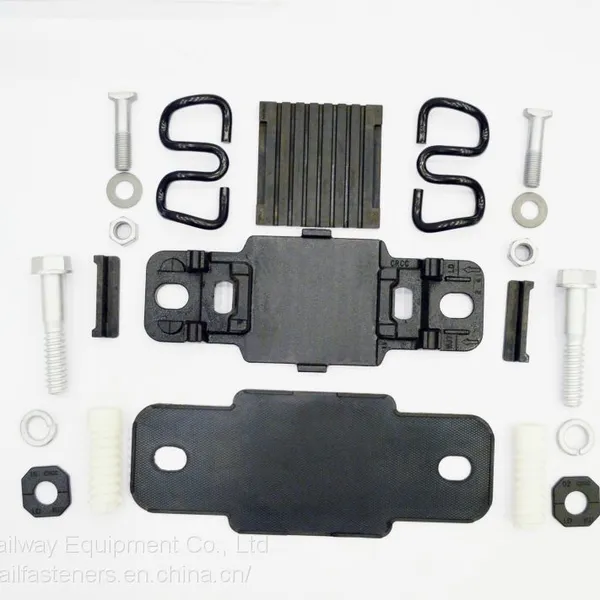

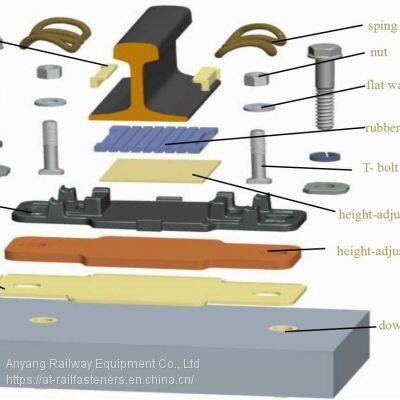

Type WJ-7 Rail Fastening System(also called Type WJ-7 elastic fastener), consists of T-bolts, nuts, flat washers, spring bars, insulating blocks, iron pad, insulation cushion pad, under-rail pad, anchor bolts, heavy spring washers, flat washers and it is composed of pre-embedded dowel positioned on concrete sleepers or track slabs. When adjusting the height of the rail, the height-adjusting pad (the adjusting height pad under rail adjusting height pad under iron pad) are used.

Design Parameter for Type WJ-7 Rail Fastening System

No.	Item	Performance
1	Suitable Rail type	Chinese 60kg/m steel rail
2	Gauge	1435mm
3	Rail bottom slope	sleeper or track slab with 1:40 rail bottom slope
4	Longitudinal resistance of rail	In general sections, the longitudinal resistance of each group of fastener rails is greater than 9 KN; in low resistance sections, the longitudinal resistance of each group of fastener rails is about 4 KN.
5	System flexibility	The static stiffness of type A pad is 30~40kN/mm, which is suitable for 250km/h passenger dedicated line (taking into account freight); the stiffness of type B pad is 20~26kN/mm, which is suitable for 350km/h passenger dedicated line; the ratio of dynamic and static stiffness is not more than 2.0
6	Dynamic and static stiffness ratio	≤2.0
7	Fatigue performance	The fastener system has no damage to all parts after 3 million load cycles, the gauge expansion is less than 6mm, and the buckling force change is ≤20%; the rail longitudinal resistance change is ≤20%; the joint static stiffness change is ≤25%
8	Insulation resistance	The fastener system is tested in accordance with EN13146-5, and the insulation resistance between the two rails is greater than 3Ωkm, and it meets the requirements for the insulation resistance of the rail circuit.
9	Harsh environmental conditions	The fastener system can be removed smoothly after the 300h salt spray test described in EN13146-5.
10	Adjustment amount of rail left and right position	Adjustment amount of left and right position of single strand rail: -6~+6mm; Gauge adjustment amount: -12~+12mm, the adjustment level is 1mm
11	Adjustment amount of rail height	Adjustable amount of rail height: 30mm
12	Buckle force and stroke	Commonly used elastic clips (W1 type): single elastic clip buckle pressure is greater than: 9kN, elastic range 14mm; small resistance elastic clip (X2 type); single elastic clip buckle pressure 6kN, elastic range 12mm
13	Pull-out resistance of embedded dowel in sleeper	≤100kN
