Home > Transportation > Train & Railway > Railway Supplies > Type II Rail Fastening System(Rail Fastener) for Railway Track Fixing

Type II Rail Fastening System(Rail Fastener) for Railway Track Fixing

Anyang Railway Equipment Co., Ltd

Type II Rail Fastening System(Rail Fastener) for Railway Track Fixing thumbnail-1

Type II Rail Fastening System(Rail Fastener) for Railway Track Fixing thumbnail-2

Type II Rail Fastening System(Rail Fastener) for Railway Track Fixing thumbnail-3

Type II Rail Fastening System(Rail Fastener) for Railway Track Fixing thumbnail-4

Type II Rail Fastening System(Rail Fastener) for Railway Track Fixing photo-1

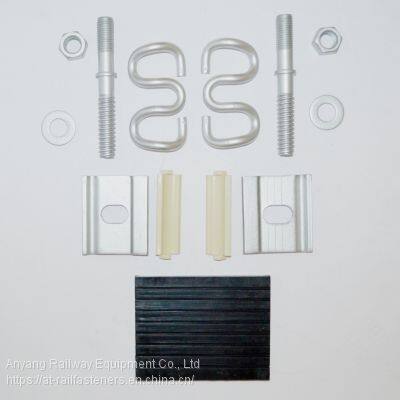

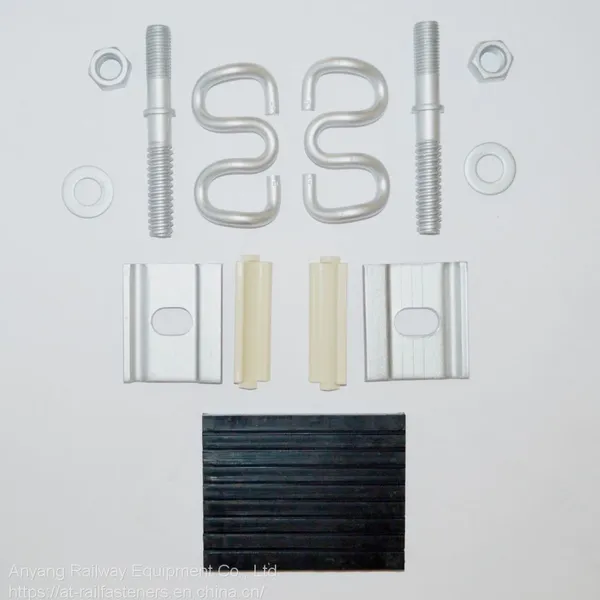

Type II Rail Fastening System(Rail Fastener) for Railway Track Fixing photo-2

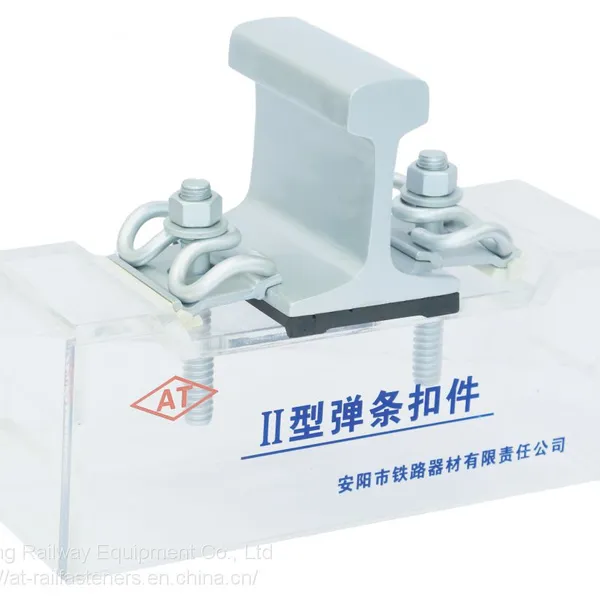

Type II Rail Fastening System(Rail Fastener) for Railway Track Fixing photo-3

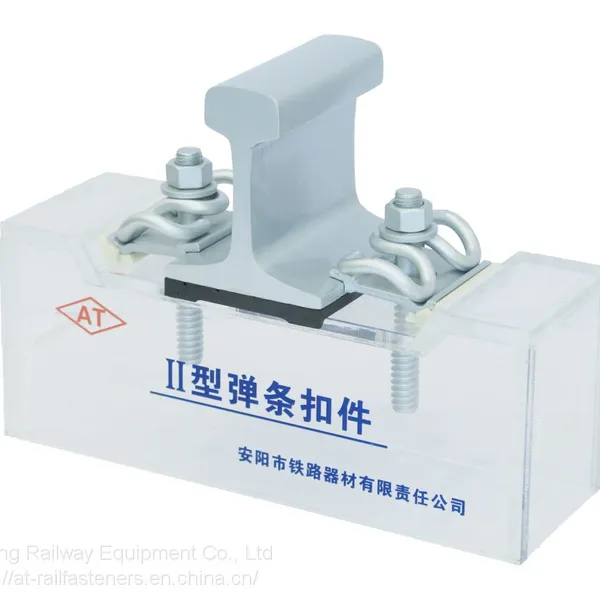

Type II Rail Fastening System(Rail Fastener) for Railway Track Fixing photo-4

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Place of Origin:

China

Model Number:

Type II rail fastening system

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Any Chinese Seaport

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name AT

Place of Origin China

Model Number Type II rail fastening system

Type Other

Type I rail fastening system is suitable for 50kg/m and 60kg/m rails that fixed on concrete shoulders, it’s unnecessary to be fixed with rail clamp, due to it has good elasticity, less force loss and better maintain the geometric shape of rail track, so I type rail fasteners have become the popular and main fasteners in Chinese railway with concrete sleepers.

There are two types of elastic rail clips, A and B, their shape like ω, so I type rail fasteners also called ω fastener or ω-shaped elastic clips.

A type E-clip or B type E-clip is made of 60Si2Mn or 55Si2Mn hot-rolled spring steel bar, HRC 41-46, rail under the pad's static stiffness of 90 ~ 120kN / mm

Fastening type		Type I Rail Clip		Type I Rail Clip adjusted	Type II Rail Clip
Application conditions		<120 km/h		120～200 km/h	Application conditions
		Conventional resistance section
Standard		TB/T 1495		TB 1911	TB/T 3065
Applicable Rail Sleeper Type		Type I and II concrete shoulders			Type Ⅲ concrete shoulders
Rail Clip	Type	Type A	Type B	Type A	Type II
	Clamping force	8 kN	9 kN	8 kN	10 kN
	Stretch range	9 mm	8 mm	9 mm	10 mm
	Fastening method	Rail Bolt Fasten
	Tightening torque	About 80 to 120 N.m about 120 to 150 N.m (small radius section)			about 100～140 N.m
Rail longitudinal resistance		>7.5 kN			>9 kN
Rail Pad	Set	Single-layer rubber rail pad between rail and sleeper
	Model	60-10-11			60-10-17 60-12-17
	Size	185×149×10			190×149×10（12）
		90～120 kN/mm			55～80 kN/mm
	Standard	TB/T2626
Steel Rail Height	Rail surface height	186mm
		10 mm		20 mm	10 mm
	Adjust position	Under the rails, adjust rail pad height
