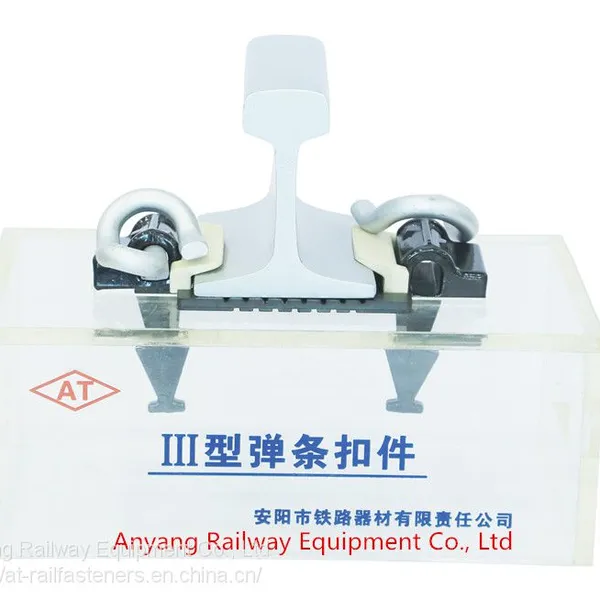

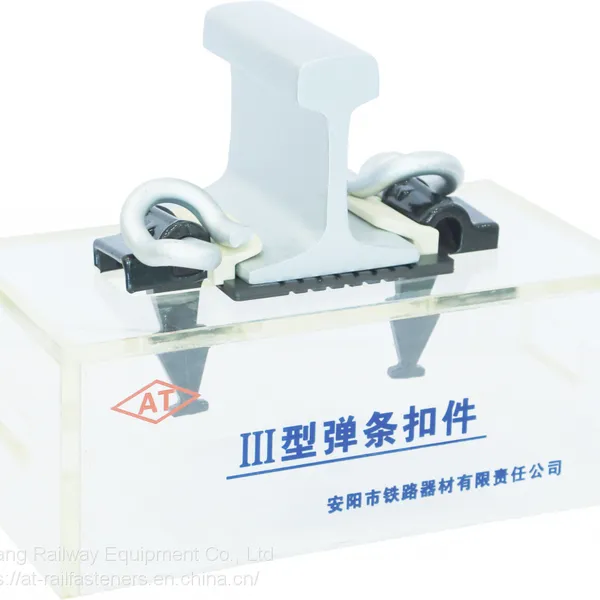

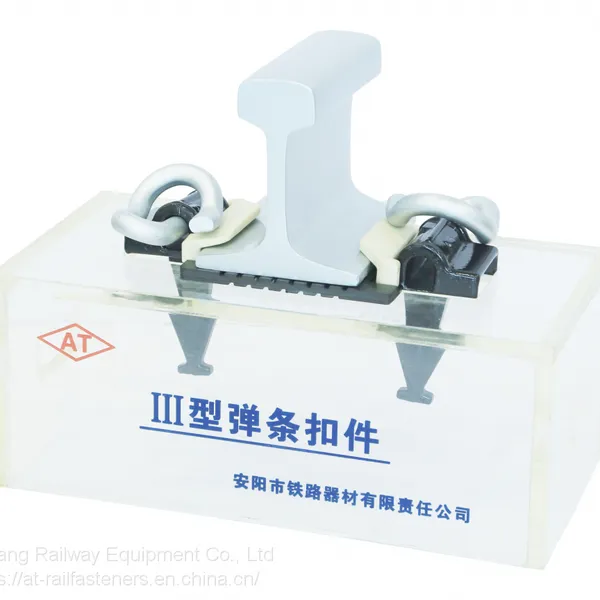

Type III Rail Fastening System(Rail Fastener) for Railway Track Fixing

Type III Rail Fastening System (also called Type III elastic fasteners) are fasteners without bolts and shoulders. Fasteners without bolts and shoulders are the development trend of sleeper fasteners all over the world and are especially suitable for heavy-load, large-volume, and high-density transportation conditions.

Features of Type III elastic fasteners

Type III Rail Fastening System has the advantages of large buckling force and good elasticity, especially the elimination of concrete sleeper shoulders, which eliminates the possibility of rail bottom lateral movement under the action of lateral force, which causes the gauge to expand, so strong ability to keep the gauge of fasteners, and because of the cancellation of the bolt connection, the workload of fastener maintenance is greatly reduced.

Design Parameters of Type III elastic fasteners

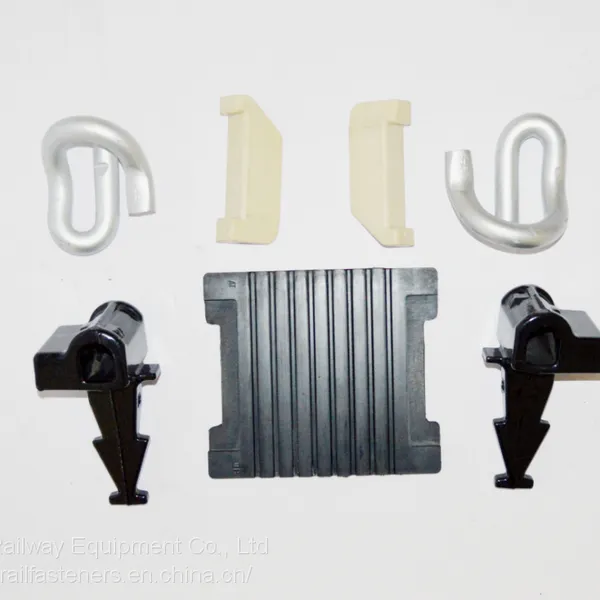

The initial buckle pressure of a single railway track fixing eclip(the minimum buckle pressure after assembly) is not less than 11kN, the working deformation of the rail spring clip is 13mm; the maximum lateral force resistance of the fastener is 70KN (fatigue load); the gauge adjustment +4-8mm. Type III spring fasteners use cast shoulders embedded in the concrete sleepers to maintain the gauge and bear the lateral force. The steel rails are clamped by elastic clips, and nylon blocks are used as insulating parts to adjust the gauge.
