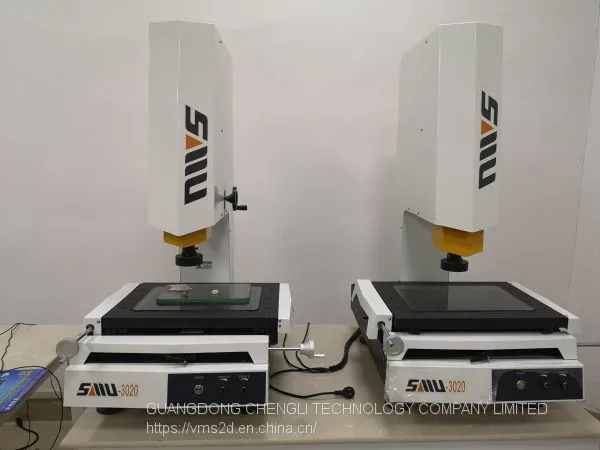

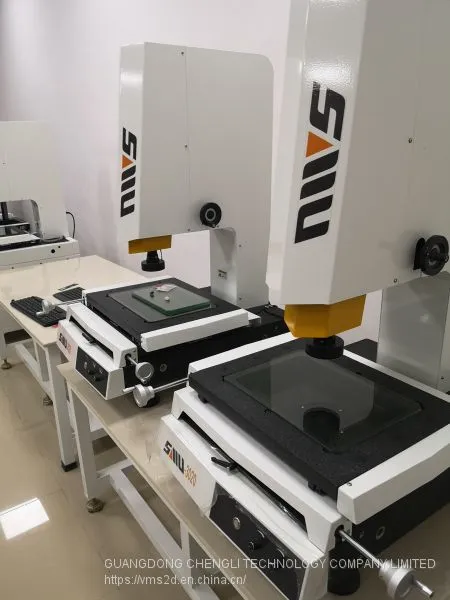

SMU-3020EM Manual type video measuring machine manufacturer
Features:
* Independently development of manual measurement software, high-resolution imported camera
* The user can know whether the light is saturated by using the auxiliary light path adjustment function of the software.
* The foot switch and software can facilitate the operation of the machine
* The laser indicator can be quickly positioned when functioning
* Optional MCP probe for customers to choose
Application:
Mechanical, electronic, instrument, plastic and other fields have been widely used, E-Series video measurement system is used for two-dimensional measurement
Specifications:
Model |
SMU-2010EM |
SMU-3020EM |
SMU-4030EM |
SMU-5040EM |
|||||||
Worktable |
Marble top size (mm) |
360*260 |
460*360 |
560*460 |
660*560 |
||||||
Glass Worktable size (mm) |
250*150 |
350*250 |
450*350 |
550*450 |
|||||||
X/Y Travel (mm) |
200*100 |
300*200 |
400*300 |
500*400 |
|||||||
Bearing capacity of glass worktable(KG) |
25KG |
||||||||||
XY Base |
Grade 00 Ji’Nan Green Marble |
||||||||||
Weight(KG) |
100KG |
150KG |
200KG |
280KG |
|||||||
Outline size(L*W*H)mm |
540*560*850 |
760*600*900 |
970*670*940 |
1050*750*1000 |
|||||||
X,Y,Z Resolution(mm) |
0.001 |
||||||||||
Accuracy(μm) |
≤3+L/200 |
||||||||||
Z axis Travel (mm) |
Effective stroke: 200mm, working distance: 90mm (Can be customized made to 400mm) |
||||||||||
Transmission system |
High precision transmission guide rail, precision polished rod |
||||||||||
Power Supply：AC220V/50HZ AC110V/60HZ | |||||||||||
Video system |
Camera: 1 / 3 "HD color industrial camera Zoom lens magnification: 0.7X-4.5X |
||||||||||
Image magnification: 20X-128X | |||||||||||
(optional 0.5X objective / 2X objective) | |||||||||||
Zoom lens |
0.7X～4.5X |
0.7X～4.5X |
Working distance (mm) |
||||||||
Additional lens |
Magnification |
Object view(mm) |
Magnification |
Object view(mm) |
|||||||
0.5X(optional) |
10X～64X |
22～3.4 |
5X～32X |
44～6.8 |
175 |
||||||
1X(standard) |
20X～128X |
11～1.7 |
10X～64X |
22～3.4 |
92 |
||||||
2x(optional) |
40X～256X |
5.5～0.9 |
20X～128X |
11～1.7 |
36 |
||||||
Industrial computer (standard configuration) |
Optional on-axis light,foot switch,prober |
||||||||||
Note: the above parameters are standard configuration. For non-standard configuration, please consult the customer service team
Note: the object view is equal to the length of the diagonal
