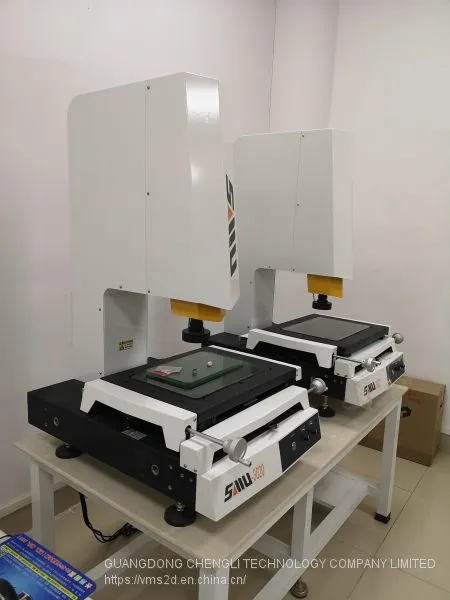

SMU4030EM vision measuring instrument/manual video measurement system/camera measuring system

Worktable

Marble top size (mm)

360*260

460*360

560*460

660*560

Glass Worktable size (mm)

250*150

350*250

450*350

550*450

X/Y Travel (mm)

200*100

300*200

400*300

500*400

Bearing capacity of glass worktable(KG)

25KG

XY Base

Grade 00 Ji’Nan Green Marble

Weight(KG)

100KG

150KG

200KG

280KG

Outline size(L*W*H)mm

540*560*850

760*600*900

970*670*940

1050*750*1000

X,Y,Z Resolution(mm)

0.001

Accuracy(μm)

≤3+L/200

Z axis Travel (mm)

Effective stroke: 200mm, working distance: 90mm

 (Can be customized made to 400mm)

Transmission system

High precision transmission guide rail, precision polished rod

Power Supply：AC220V/50HZ          AC110V/60HZ

Video system

Camera: 1 / 3 "HD color industrial camera               Zoom lens magnification: 0.7X-4.5X

Image magnification: 20X-128X

(optional 0.5X objective / 2X objective)

Zoom lens

0.7X～4.5X

0.7X～4.5X

Working distance

(mm)

Additional lens

Magnification

Object view(mm)

Magnification

Object view(mm)

0.5X(optional)

10X～64X

22～3.4

5X～32X

44～6.8

175

1X(standard)

20X～128X

11～1.7

10X～64X

22～3.4

92

2x(optional)

40X～256X

5.5～0.9

20X～128X

11～1.7

36

Industrial computer (standard configuration)

Optional on-axis light,foot switch,prober
