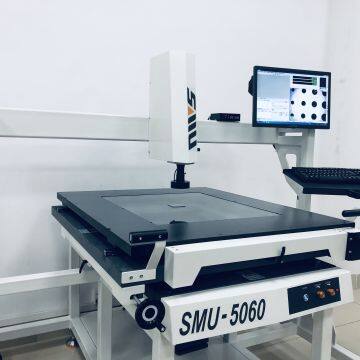

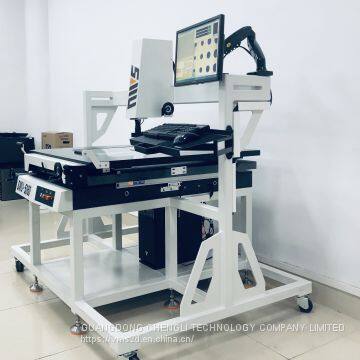

SMU-5060EM Manual bridge-type video measuring machine
Features:
* Independently development of manual measurement software, high-resolution imported camera
* The user can know whether the light is saturated by using the auxiliary light path adjustment function of the software.
* The foot switch and software can facilitate the operation of the machine
* The laser indicator can be quickly positioned when functioning
* Optional MCP probe for customers to choose
Application:
Mechanical, electronic, instrument, plastic and other fields have been widely used, E-Series video measurement system is used for two-dimensional measurement
Specifications:
Model | SMU-5060EM | SMU-6080EM | SMU-8010EM | |||||||||
Worktable | Marble top size (mm) | 660*760 | 760*960 | 960*1160 | ||||||||
Glass Worktable size (mm) | 550*650 | 650*850 | 850*1050 | |||||||||
X/Y Travel (mm) | 500*600 | 600*800 | 800*1000 | |||||||||
Bearing capacity of glass worktable(KG) | 25KG | |||||||||||
XY Base | Grade 00 Ji’Nan Green Marble | |||||||||||
Weight(KG) | 380KG | 500KG | 700KG | |||||||||
Outline size(L*W*H)mm | 1400*1250*1650 | 1500*1450*1650 | 1600*1650*1650 | |||||||||
X,Y,Z Resolution(mm) | 0.001 | |||||||||||
Accuracy(μm) | ≤3+L/200 | ≤4+L/200 | ≤5+L/200 | |||||||||
Z axis Travel (mm) | Effective stroke: 200mm, working distance: 90mm (Can be customized made to 400mm) | |||||||||||
Transmission system | High precision transmission guide rail, precision polished rod | |||||||||||
Power Supply：AC220V/50HZ AC110V/60HZ | ||||||||||||
Video system | Camera: 1 / 3 "HD color industrial camera Zoom lens magnification: 0.7X-4.5X | |||||||||||
Image magnification: 20X-128X | ||||||||||||
(optional 0.5X objective / 2X objective) | ||||||||||||
Zoom lens | 0.7X～4.5X | 0.7X～4.5X | Working distance (mm) | |||||||||
Additional lens | Magnification | Object view(mm) | Magnification | Object view(mm) | ||||||||
0.5X(optional) | 10X～64X | 22～3.4 | 5X～32X | 44～6.8 | 175 | |||||||
1X(standard) | 20X～128X | 11～1.7 | 10X～64X | 22～3.4 | 92 | |||||||
2x(optional) | 40X～256X | 5.5～0.9 | 20X～128X | 11～1.7 | 36 | |||||||
Industrial computer (standard configuration) | Optional on-axis light,foot switch,prober | |||||||||||
Note: the above parameters are standard configuration. For non-standard configuration, please consult the customer service team
Note: the object view is equal to the length of the diagonal
