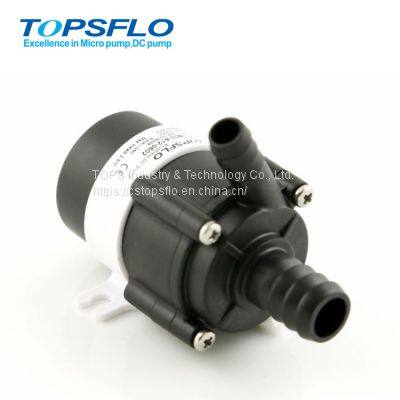

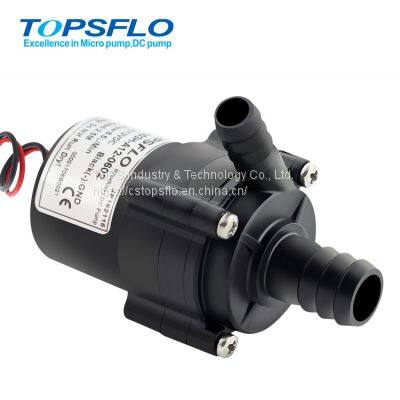

TOPSFLO High Temperature Brushless DC Food grade Pump kichen under sink instant Hot water drink water pump
- 1000 Piece / Pieces per Month
- shenzhen
- T/T L/C PayPal
- 7 days
- TOPSFLO 12V Mini Quiet Water Heater Mattress Pump
- DC mini water pump 24v dc water pump
- TOPSFLO High Performance Silent FoodSaver vacuum pump
- TOPSFLO 12V Water Pump for EV Circulating DC Water Pump
- Brushless DC Water Circulation Pump
- Mini high pressure high temperature brushless dc centrifugal circulation heater solar water pump
Product Details
Brand Name: | topsflo | Place of Origin: | China | Model Number: | TL-B03 |
Application: | Other, under sink instant Hot water drink water pump | Power: | Electric | Usage: | Water |
Theory: | Centrifugal Pump | Standard or Nonstandard: | Standard | Structure: | Single-stage Pump |
Pressure: | Low Pressure |
Product Description
TOPSFLO High Temperature Brushless DC Food grade Pump kichen under sink instant Hot water drink water pump
Application:
Instant filtered boiling ,Chilled and sparkling water systems
Instant filtered drinking water systems
Coffee maker/coffee machine, Water cooler/water dispenser, Beverage dispenser
Water purifier/water dispenser, Tea maker, Milk dispenser, Laboratory
Medical treatment, Fountain, aquariums,Computer CPU cooling circulation,Water heating mattress
Product Features:
•.High efficiency brushless DC motor with long lifetime 20,000hours
•.Heavy duty work,can sustain continuous 24hours work
•.Special designed high efficiency closed-impeller for low power consumption
•.Motor widely voltage designed suitable for battery,Power supplying with peak-low voltage damply
•.All wetted materials Food grade approved to be safety usage
•.Durable permanent magnetic rotor/impeller and fine ceramic shaft
•.Low or no maintenance
•.IP protection level: IP68
•.Blocked protection
Product Specification:
Model | Product Code | Max Water Flow (L/Min) | Rated Voltage(DC) | Rated Current (A) | Max Water Head(M) | Rated Power(W) |
B03 | TL-B03-A12-0602 | 6.5 | 12 | 0.43 | 2.5 | 5.16 |
TL-B03-A24-0602 | 6 | 24 | 0.22 | 2 | 5.28 | |
Customization: 1. /S Submersible, liquid ≤50°C 2. /FG (RPM) signal wire 3. /PWM or /5V speed control |
Product Characteristics:
Max Flow Rate | 6.5L/MIN |
Max Water Head | 2.5 M |
Rated Voltage | 12V/24V |
Working Voltage Range | 6V-18V /12V-28V |
Motor Type | Brushless DC motor |
Liquid Temperature | -40-105°C |
Noise Class form 0.3M | 37dB /Max |
Ideal Life Time | 20000 Hours |
Working Mode | Continuous |
OD of Inlet/Outlet | 14 mm/9.4mm |
Max pressure / Continue work Pressure | 1.8Mpa / 0.5Mpa |
Working liquid | Pure Water,antifreeze,etc |
Power Supply | DC power supply, battery |
Remarks | Can’t dry-running, not Self-priming |
Usage Note:
Dry-running is prohibited.
Reverse polarity is not allowed (except customized).
The pump if dropped or with heavy vibration do not use.
Liquid contain impurities or magnetic particles are not allowed.
Liquid temperature over 80°C is not allowed (except high temperature models).
Acidic or alkaline liquid is prohibited (except customized).
Get more Technical data, please click here
