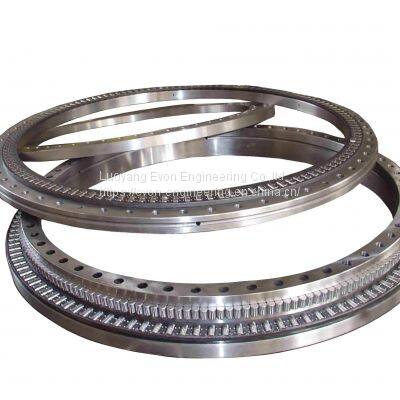

QW.630.20A Customized Slewing Bearing Turntable Bearing Slewing Ring

Luoyang Evon Engineering Co.,ltd
QW.630.20A Customized Slewing Bearing Turntable Bearing Slewing Ring thumbnail-1
QW.630.20A Customized Slewing Bearing Turntable Bearing Slewing Ring thumbnail-2
QW.630.20A Customized Slewing Bearing Turntable Bearing Slewing Ring photo-1
QW.630.20A Customized Slewing Bearing Turntable Bearing Slewing Ring photo-2
US$ 100 - 500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
EVON
Place of Origin:
China
Model Number:
QW.630.20A
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
25 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name EVON
Place of Origin China
Model Number QW.630.20A
Feature Four Point Contact
Seals Type Rubber Sealed
Outside Diameter 70, 755
Bore Size 50, 534
Gear Options External Gear Only
Overview
Quick Details

  • Type:

  • Slewing Bearing

  • Applicable Industries:

  • Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Crane industry

  • Brand Name:

  • HGB

  • Model Number:

  • QW.630.20A

  • Feature:

  • Four Point Contact

  • Gear Options:

  • External Gear Only

  • Seals Type:

  • NBR

  • Place of Origin:

  • Henan, China

  • Application:

  • slewing ring

  • Precision:

  • ABEC3-5-7-9

  • Gear:

  • external Gear

  • Rolling element:

  • GCr5

  • Material:

  • 50Mn/42CrMo/Customized

  • Operating tempereature:

  • -40°C +150°C

  • Load direction:

  • Radial bearing

  • RACEWAY hardness:

  • 55~62HRC

  • Inner and outer ring modulation hardness:

  • 229-268HB

  • High operational efficiency:

  • compact design
Supply Ability

  • Supply Ability

  • 1500 Set/Sets per Month

Packaging & Delivery

  • Packaging Details

  • The oil is lubricated to prevent the drying from being sealed with a nylon plastic bag and stored in a wooden box.

  • Port

  • China any Port

  • Picture Example:

  • package-img
    package-img

  • Lead Time:

  • Quantity(Sets)1 - 1>1
    Est. Time(days)30To be negotiated
Double Row
Ball slewing bearing


Three row
roller slewing bearing


Roller/Ball Combination
Slewing bearing
Type
• Single row four point contact ball slewing bearing
• Single row crossed cylindrical roller slewing bearings
• Double row ball slewing bearings
•Double row Roller/ball combination slewing bearing
•Three-Row Roller Slew Ring Bearing
Rollng elements
Steel ball / Cylinder Roller
Rollng elements Material
GCr5/GCr15SiMn/Customized
Bearing Material
50Mn/42CrMo/42CrMo4V /Customized
Cage Material
Nylon/ steel /copper
Structure
taper pin , Mounting holes,Inner ring ,grease fitting,load plug, seals , roller ,spacer balls or separators
Outer diameter
50-10000mm
Bore size
50-10000mm
Mounting hole
Through hole/Tapped hole
Raceway hardness
55-62HRC
Inner and outer ring
modulation hardness
229-269HB/Customized
Gear type
No gear ,Internal gear , External gear.
Embellish grease
EP2 lithium lubricating grease
Certificate
ABS.BV,DNV,ISO9001,GL
Application area
Ladle turret,Stacker crane,Bucket wheel machine,Solar heliostat Tracking System,port crane, Cabling machine,tower crane , offshore platform,ferris wheel, Palletizing robot,Rotary metallurgical furnace,can packing machine,Wind blade transporter,shield tunneling machine,tube push bench,excavator
Brand Name
HGB
Place of Origin
Luoyang Henan
Warranty
12 months
Payment term
T/T is our first choice
Packing details
1,Filling with anti-rust oil
2.Corved with Plastic paper
3.Corved with kraft paper
4.Corved with Blue tie
5.Put in wooden box

Three row roller slewing bearing

It have three seat rings, the upper and lower raceways and the radial raceways are separated, so that the load of each row of roller can be determined accurately. Being able to bear all kinds of loads at the same time, it is the largest one of the four structural products with large axle and radial dimensions and firm structure. It is especially suitable for heavy machinery requiring larger diameter, such as bucket wheel stacker and reclaimer, wheel crane, marine crane, port crane, ladle turret and large tonnage truck crane. Heavy machinery and so on.

Single row four point contact ball slewing bearing.

It is composed of two seat rings. It has compact structure, light weight, and four-point contact between steel ball and arc raceway. It can bear axial force, radial force and overturning moment at the same time. The construction machinery of rotary conveyor, welding manipulator, small and medium-sized crane and excavator can be selected.

Product Tags: Slewing bearing , Slewing ring
