Cantilever Swing Arm Hoisting 2 3 5 10 Ton 1 Ton Portable Wall Mounted Mobile Slewing Bearing Jib Crane

Luoyang Evon Engineering Co.,ltd
Cantilever Swing Arm Hoisting 2 3 5 10 Ton 1 Ton Portable Wall Mounted Mobile Slewing Bearing Jib Crane thumbnail-1
Cantilever Swing Arm Hoisting 2 3 5 10 Ton 1 Ton Portable Wall Mounted Mobile Slewing Bearing Jib Crane thumbnail-2
Cantilever Swing Arm Hoisting 2 3 5 10 Ton 1 Ton Portable Wall Mounted Mobile Slewing Bearing Jib Crane photo-1
Cantilever Swing Arm Hoisting 2 3 5 10 Ton 1 Ton Portable Wall Mounted Mobile Slewing Bearing Jib Crane photo-2
US$ 100 - 500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
EVON
Place of Origin:
China
Model Number:
OEM
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
25 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name EVON
Place of Origin China
Model Number OEM

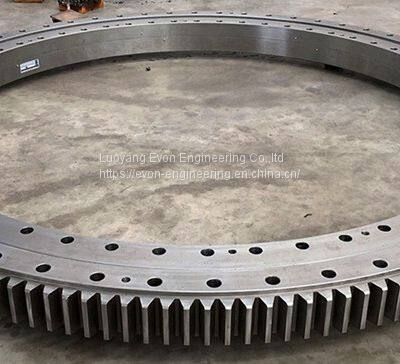

Feature Four Point Contact
Seals Type Rubber Sealed
Outside Diameter 200, 2000
Bore Size 150, 1500
Gear Options External Gear Only
Overview
Quick Details

  • Feature:

  • Jib Crane

  • Applicable Industries:

  • Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

  • After Warranty Service:

  • Video technical support, Online support, Spare parts

  • Local Service Location:

  • Turkey, France, Peru, Mexico, Malaysia

  • Showroom Location:

  • Turkey, France, Peru, Mexico, Kenya, Colombia

  • Video outgoing-inspection:

  • Provided

  • Machinery Test Report:

  • Provided

  • Marketing Type:

  • Hot Product 2019

  • Warranty of core components:

  • 1 Year

  • Core Components:

  • Motor, Gear

  • Condition:

  • New

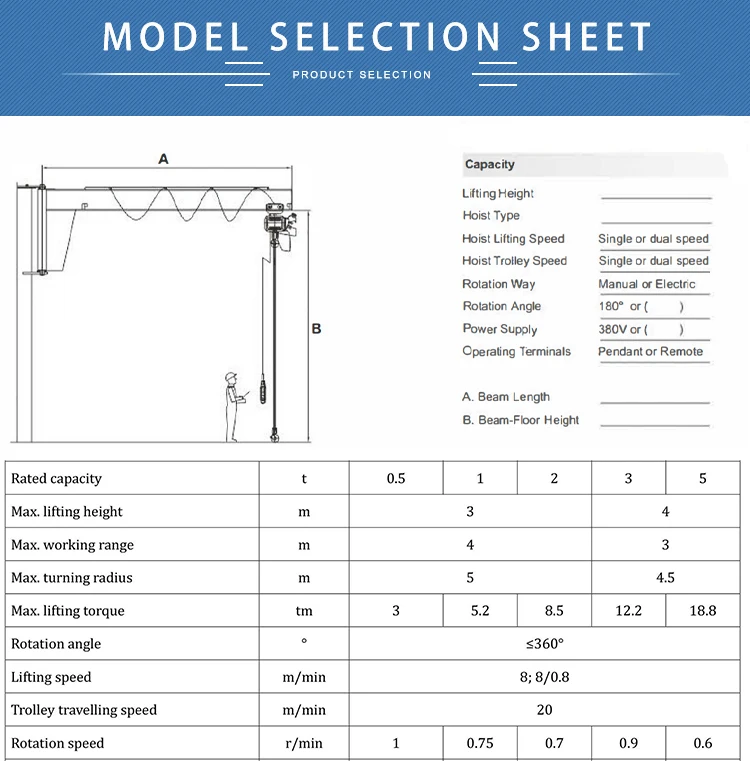

  • Rated Loading Capacity:

  • 0-0.5 TON

  • Max. Lifting Height:

  • 2-6 m

  • Span:

  • 1.5-6 m

  • Place of Origin:

  • Beijing, China

  • Brand Name:

  • KLD

  • Certification:

  • CE ISO, ISO CE

  • Warranty:

  • 1 Year, 1 Year

  • After-sales Service Provided:

  • Video technical support, Online support, Free spare parts

  • Capacity:

  • 1-5 TON

  • Product name:

  • Cantilever Jib Crane

  • Color:

  • Customized Color Acceptable

  • Slewing angle:

  • 180/270/360 Degree

  • Driven mode:

  • Manually/Electrically

  • Control method:

  • Manual Operated/Remote Control

  • Length:

  • 1.5 m- 6 m
Supply Ability

  • Supply Ability

  • 10 Set/Sets per Day

Packaging & Delivery

  • Packaging Details

  • 1.Electric parts are packed by high quality plywood crate, to reduce distortion in conveying.

    2.Main beams, end beams and trolley/winch are packed by plastic woven cloth.

    3. If the size are suitable for container ship, usually by container.

    4.Big size, usually by bulk ship or by container after truncation.

    5.Transport ways are based on reducing cost & keep safety.

Features：
(1) Uses wide-flange beam or I-beam for the boom and a wide-flange beam for the column.
(2) The top assembly has self-aligning spherical bearings.

(3) The bottom assembly has bronze bearings and bronze thrust washers.

(4) Both bearing assemblies are provided with grease fittings for lubrication to aid rotation.

Options：
(1) Festoon (or electric power lines)

(2) Motorized rotation.

(3) Taglines.

(4) Special control enclosures (to match your environment).

(5) Specialty paint finishes or hot dip galvanizing
