Home > Industrial Equipment & Components > Bearing > Slewing Bearing > 2100 Slewing Ring Bearings Without Gear Teeth Four Point Contact Ball Bearing With Flange Inner and Outer Rings.

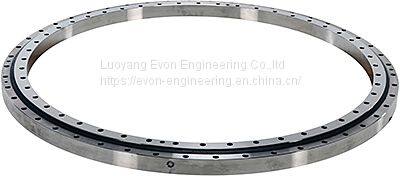

2100 Slewing Ring Bearings Without Gear Teeth Four Point Contact Ball Bearing With Flange Inner and Outer Rings.

Luoyang Evon Engineering Co.,ltd
2100 Slewing Ring Bearings Without Gear Teeth Four Point Contact Ball Bearing With Flange Inner and Outer Rings. thumbnail-1
2100 Slewing Ring Bearings Without Gear Teeth Four Point Contact Ball Bearing With Flange Inner and Outer Rings. thumbnail-2
2100 Slewing Ring Bearings Without Gear Teeth Four Point Contact Ball Bearing With Flange Inner and Outer Rings. photo-1
2100 Slewing Ring Bearings Without Gear Teeth Four Point Contact Ball Bearing With Flange Inner and Outer Rings. photo-2
US$ 100 - 500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
EVON
Place of Origin:
China
Model Number:
230.20.0400.013
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
25 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name EVON
Place of Origin China
Model Number 230.20.0400.013
Feature Cross Roller
Seals Type No sealed
Outside Diameter 50, 518
Bore Size 30, 304
Gear Options Nongeared
Quick Details

  • Type:

  • Slewing Bearing

  • Applicable Industries:

  • Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Crane industry

  • Brand Name:

  • hgb

  • Model Number:

  • 230.20.0400.013

  • Feature:

  • CROSS ROLLER

  • Gear Options:

  • Nongeared

  • Seals Type:

  • NBR

  • Place of Origin:

  • Henan, China

  • Application:

  • slewing ring

  • Precision:

  • ABEC3-5-7-9

  • Gear:

  • No Gear

  • Rolling element:

  • GCr5

  • Material:

  • 50Mn/42CrMo/Customized

  • Operating tempereature:

  • -40°C +150°C

  • Load direction:

  • Radial bearing

  • RACEWAY hardness:

  • 55~62HRC

  • nner and outer ring modulation hardness:

  • 229-268HB

  • High operational efficiency:

  • compact design
Supply Ability

  • Supply Ability

  • 1500 Set/Sets per Month

Packaging & Delivery

  • Packaging Details

  • The oil is lubricated to prevent the drying from being sealed with a nylon plastic bag and stored in a wooden box.

  • Port

  • China any Port

  • Picture Example:

  • package-img
    package-img

  • Lead Time:

  • Quantity(Sets)1 - 1>1
    Est. Time(days)50To be negotiated
ype
• Single row four point contact ball slewing bearing
• Single row crossed cylindrical roller slewing bearings
• Double row ball slewing bearings
•Double row Roller/ball combination slewing bearing
•Three-Row Roller Slew Ring Bearing
Rollng elements
Steel ball / Cylinder Roller
Rollng elements Material
GCr5/GCr15SiMn/Customized
Bearing Material
50Mn/42CrMo/42CrMo4V /Customized
Cage Material
Nylon/ steel /copper
Structure
taper pin , Mounting holes,Inner ring ,grease fitting,load plug, seals , roller ,spacer balls or separators
Outer diameter
50-10000mm
Bore size
50-10000mm
Mounting hole
Through hole/Tapped hole
Raceway hardness
55-62HRC
Inner and outer ring
modulation hardness
229-269HB/Customized
Gear type
No gear ,Internal gear , External gear.
Embellish grease
EP2 lithium lubricating grease
Certificate
ABS.BV,DNV,ISO9001,GL
Application area
Ladle turret,Stacker crane,Bucket wheel machine,Solar heliostat Tracking System,port crane, Cabling machine,tower crane , offshore platform,ferris wheel, Palletizing robot,Rotary metallurgical furnace,can packing machine,Wind blade transporter,shield tunneling machine,tube push bench,excavator
Brand Name
HGB
Place of Origin
Luoyang Henan


Product Tags: Slewing bearing , Slewing ring

Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
Luoyang Evon Engineering Co.,ltd
Business Type
Manufacturer
Year Established
2011
Factory Size
1,000-3,000 square meters
Annual Export Value
US$1 Million - US$1.5 Million
Contact Supplier Request Quote Chat Now
