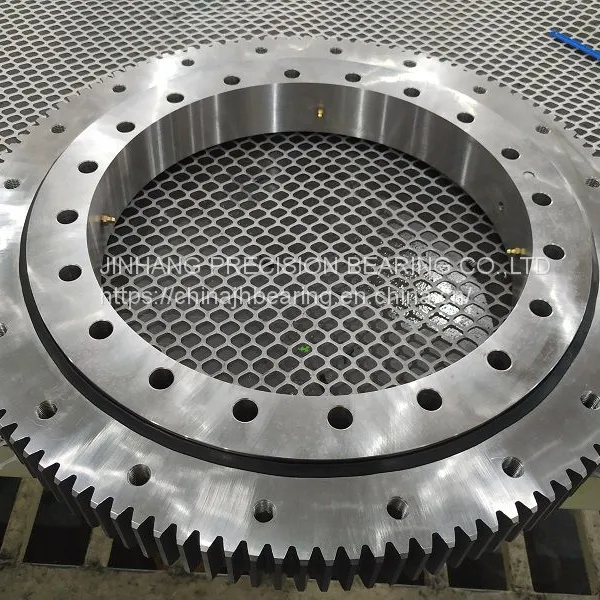

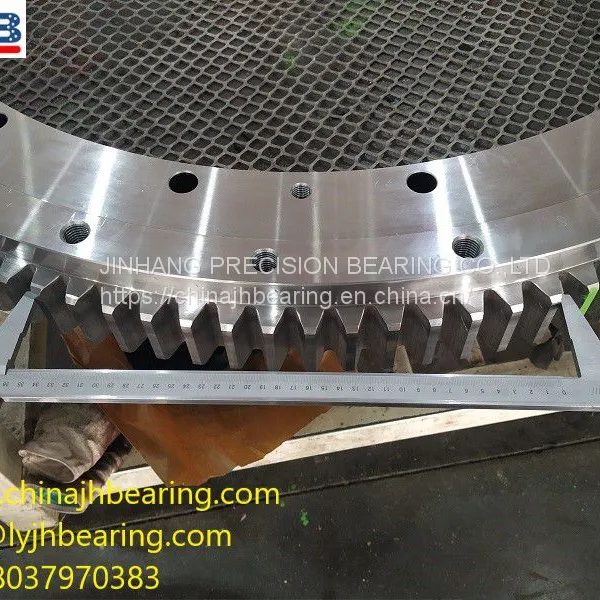

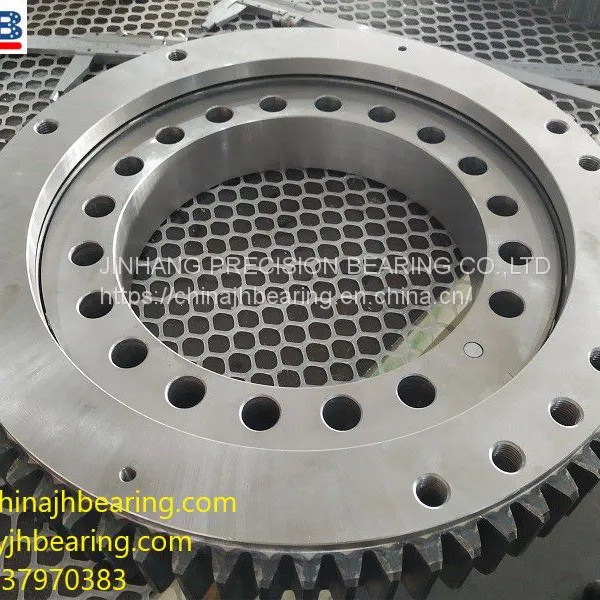

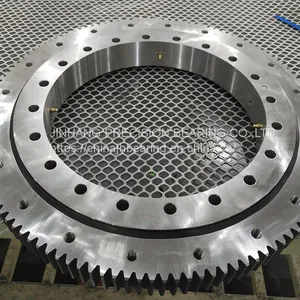

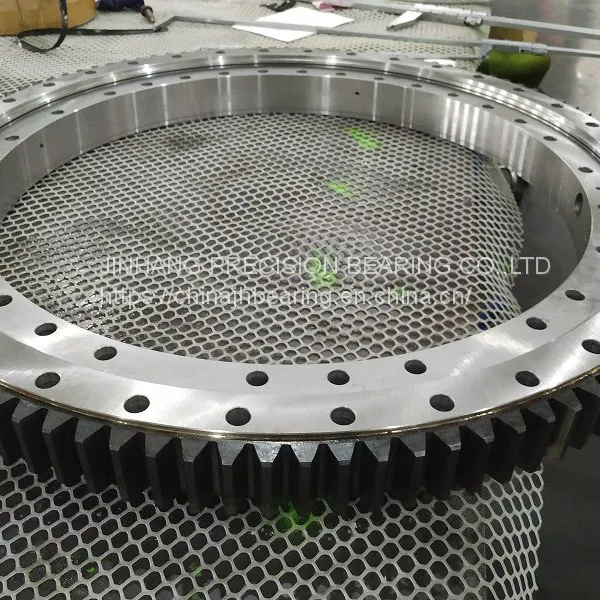

Handling systems use VSA 200944 N 1046.1x872x56mm slewing ball bearing
these slewing rings without preload are robust and proven under very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction.They are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in simple metalworking machines, wind power equipment and construction machinery The VSA 200944 N bearing outer diameter:1046.1mm,Inner diameter:872mm,Height:56mm, It is the light series bearing structure with internal teeth.
Description |
VSA 200944 N slewing ball bearing |
Dimension(ODXIDXH) |
1046.1x872x56mm |
Outer diameter(OD) |
1046.1 mm |
Inner diameter(ID) |
872 mm |
Width/Height/(H) |
56 mm |
weight |
77kgs |
Material |
42CrMo, 50Mn |
Rolling |
LYC ball |
Teeth data | |
do |
1032mm |
m |
8 |
Teeth number |
129 |
Package |
Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case. |
