Axial AV131 Panasonic insertion

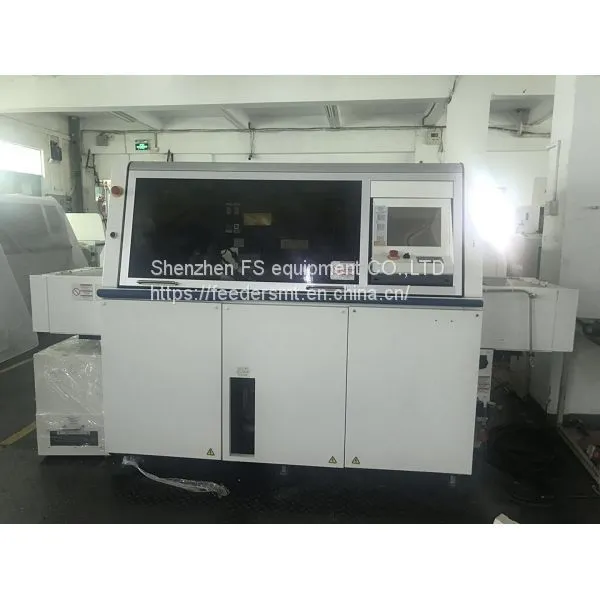

Horizontal Panasonic plug-in machine AV131(NM-EJA3A-NM-EJA2A): AV131 uses 0.12s/point high-speed plug-in and an axial component plug-in machine that increases productivity within the expansion speed. The equipment runs stably and does not require an external transformer.

Substrate size: L50mm*W50mm-L508mm*W381mm

Plug-in speed: 0.12s/point

Number of components: 60+60+JW (JW option)/60+JW

Target components: resistance 1/8W, 1/6W, 1/4W, 1/2W, jumper wire (tin pin wire) two * tube, cylindrical ceramic capacitor

Substrate replacement time: about 2.0s

Component insertion direction: 4 directions (0 degrees, 90 degrees, 180 degrees, 270 degrees)

Power supply: three-phase AC200V, 4KVA

Air pressure source: 0.5MPA, 150L/min (A.N.R)

Equipment size: W4070mm*D1910mm*H1610mm W2810mm*D1910mm*H1610mm

Equipment weight: 2520KG, 1750KG

AVK PISTON

cutter AVP/RH3 CUTTER X050927T/X050927

Blade AV/RH CUTTER X004-250-S94

Cut tool AVP CUTTER 1020719356

Blade tool AVP CUTTER 20718814

Panasonic cutter blade fixed AV-RH FIXED BLADE X018553
