General Purpose Hot-dipped Galvanized Welded Wire Mesh Panels and Rolls
- 500000 Piece / Pieces per Month
- Tianjin
- T/T L/C
- Factory BBQ mesh Perforated crimped wire mesh for barbecue with best price and quality
- Hot Selling!High Quality Cheap Chain Link Fence top barbed wire/cyclone fence
- Alibaba Verified China Factory Popular Perimeter fence/Chain Link Fence top barbed wire/cyclone fence
- China Hot Sale High Quality Perimeter fence/Chain Link Fence top barbed wire/cyclone fence
- Alibaba.com Golden Supplier High Quality Perimeter fence/Chain Link Fence top barbed wire/cyclone fence
- Alibaba Made In China Anping Perimeter fence/Chain Link Fence top barbed wire/cyclone fence
Product Details
Brand Name: | FuHua | Place of Origin: | China | Model Number: | Welded Wire Mesh |
Material: | Galvanized Steel Wire | Type: | Welded Mesh | Application: | Other, Construction, Farming, Fencing, etc. |
Technique: | Welded Mesh | Wire Diameter: | 0.5mm-4.0mm | Weave Style: | Plain Weave |
Product Description
Welded wire mesh is widely used in the construction field. The wires are crossed horizontally and vertically to form the warp and weft, welded directly into formed mesh by automatic welded wire mesh machine, then through a series of surface treatment processes such as rust removal, pickling, hot dip galvanizing, passivation, optional plastic coating, etc. to become the end-use form of the product.
Applications:Welded wire mesh has a simple structure, fully automated processing, and can be used as:
Construction wall anti-cracking plastering mesh
Ground concrete reinforcing mesh
Fencing for farming
Fruit and vegetable baskets, animal cages
Various styles of isolation and protection fences, etc.
Hot-dip galvanizing is the most common anti-corrosion process used for welded wire mesh. After hot-dip galvanizing, the corrosion resistance of welded wire mesh is greatly enhanced. Galvanized welded wire mesh can be divided into two types according to the sequence of the production process: galvanized steel wire mesh and post-hot-dip galvanized welded wire mesh. The former uses galvanized steel wire as the raw material for welded wire mesh, while the latter uses bright steel wire as the raw material for welded wire mesh, and then hot-dip galvanized as a whole.
Specifications:The common specifications of welded wire mesh are as follows:
Specifications | ||||
No. | Mesh Size | Wire Diameter | Exposure | |
Size | Tolerance | |||
40×40 | 101.6×101.6 | 2.50~4.00 | ±0.08 | ≤2.50 |
30×40 | 76.2×101.6 | |||
30×30 | 76.2×76.2 | |||
20×30 | 50.8×76.2 | |||
20×20 | 50.8×50.8 | 1.80~2.50 | ±0.04 | ≤2.00 |
10×20 | 25.4×50.8 | |||
10×10 | 25.4×25.4 | |||
04×10 | 12.7×25.4 | 1.00~1.80 | ≤1.50 | |
06×06 | 19.05×19.05 | |||
04×04 | 12.7×12.7 | 0.50~0.90 | ||
03×03 | 9.53×9.53 | |||
02×02 | 6.35×6.35 |
The main specification parameters of welded wire mesh, which need to be indicated by customers when ordering:
Wire diameter: The diameter of the wire varies greatly from application to application.
Mesh size: determined according to the role it should play.
Mesh size: including mesh width and length.
Surface treatment: hot-dip galvanized, electro-galvanized, plastic coated or not.
Other requirements.

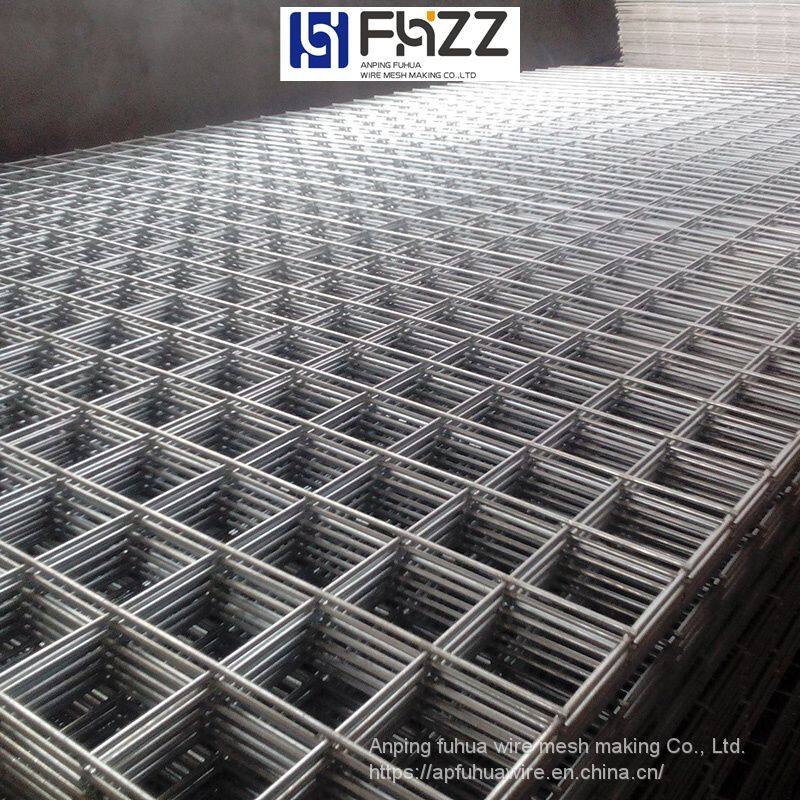

Galvanized Welded Wire Mesh Panels:

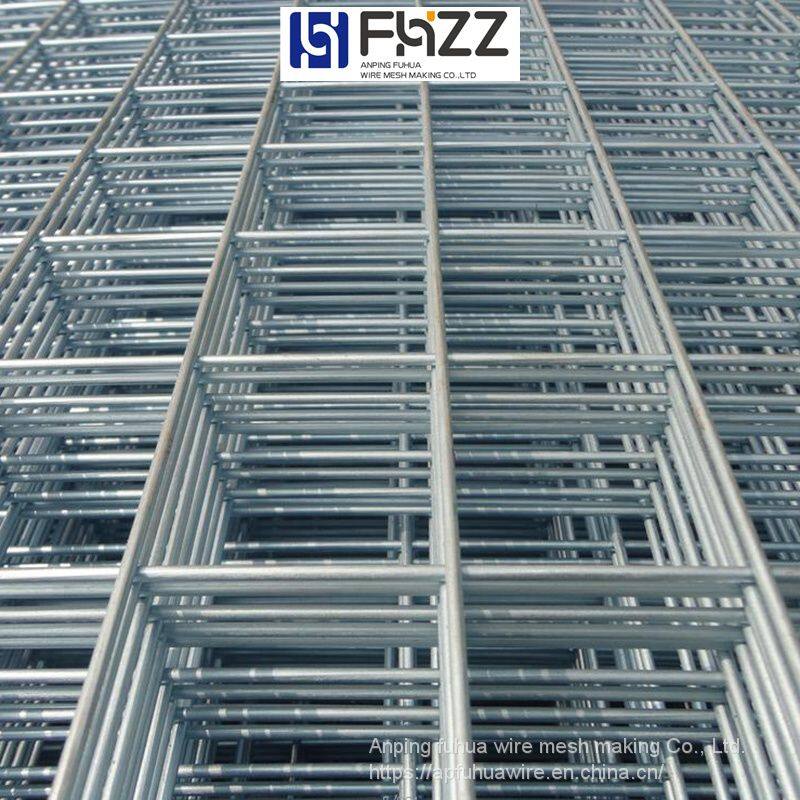

Round Bar Welded Wire Mesh for Concrete Reinforcement:

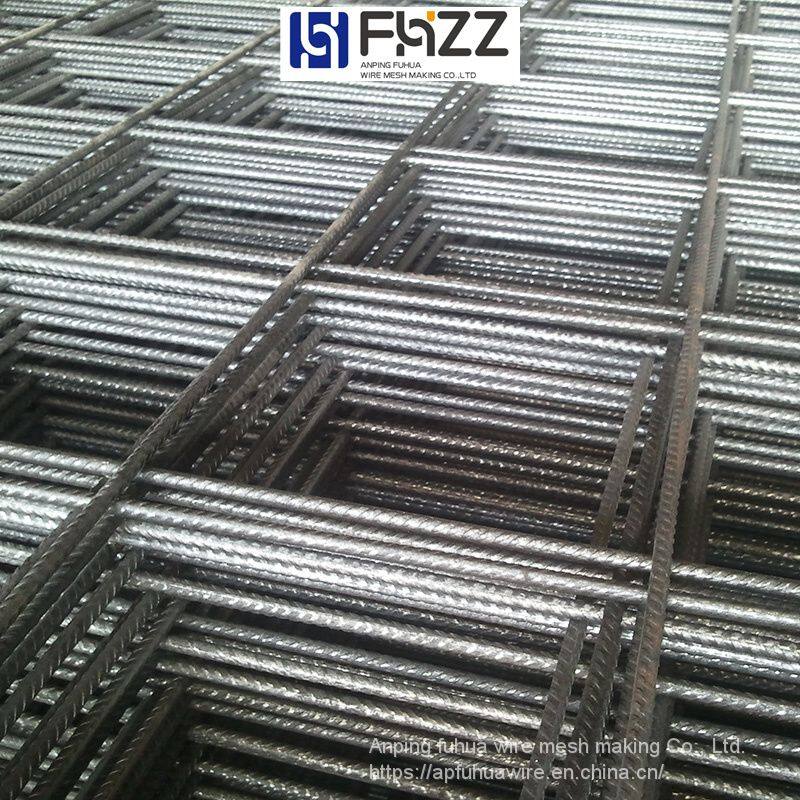

Ribbed Bar Welded Wire Mesh for Concrete Reinforcement:

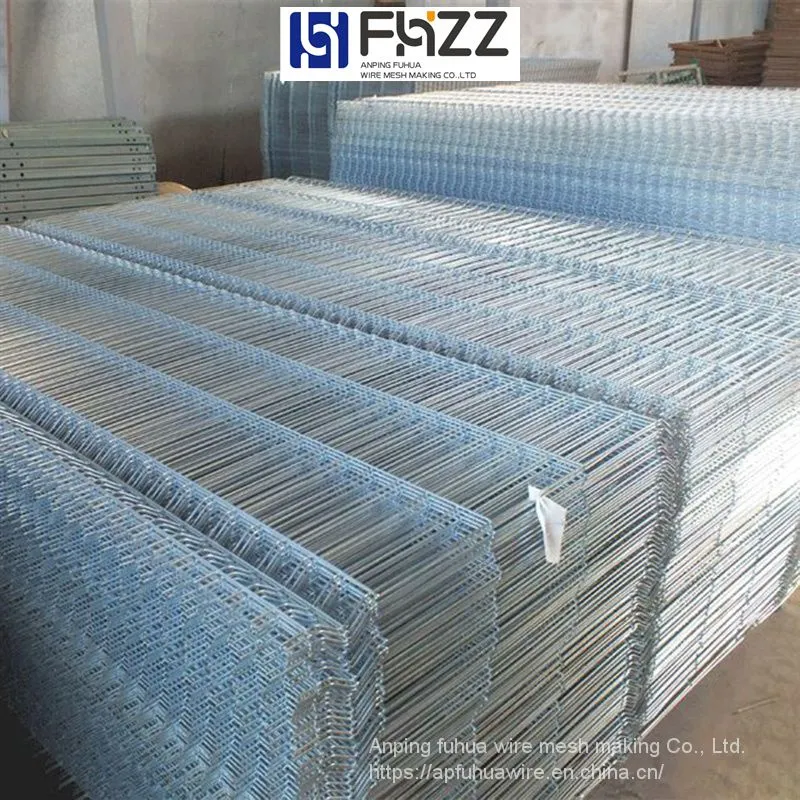

Galvanized Welded Wire Mesh Sheets for Fencing:

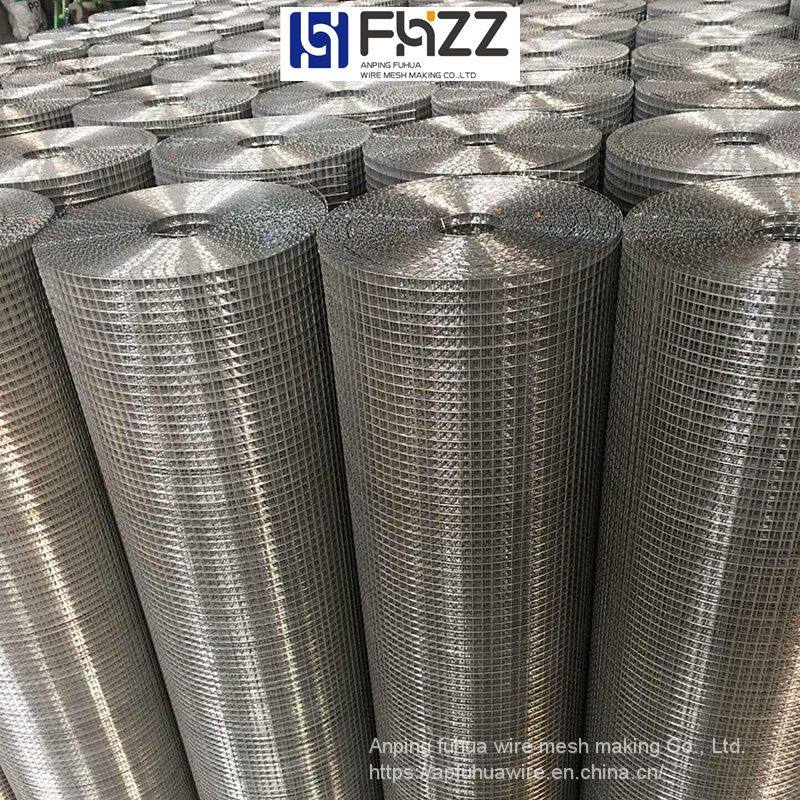

Stainless Steel Welded Wire Mesh Rolls:

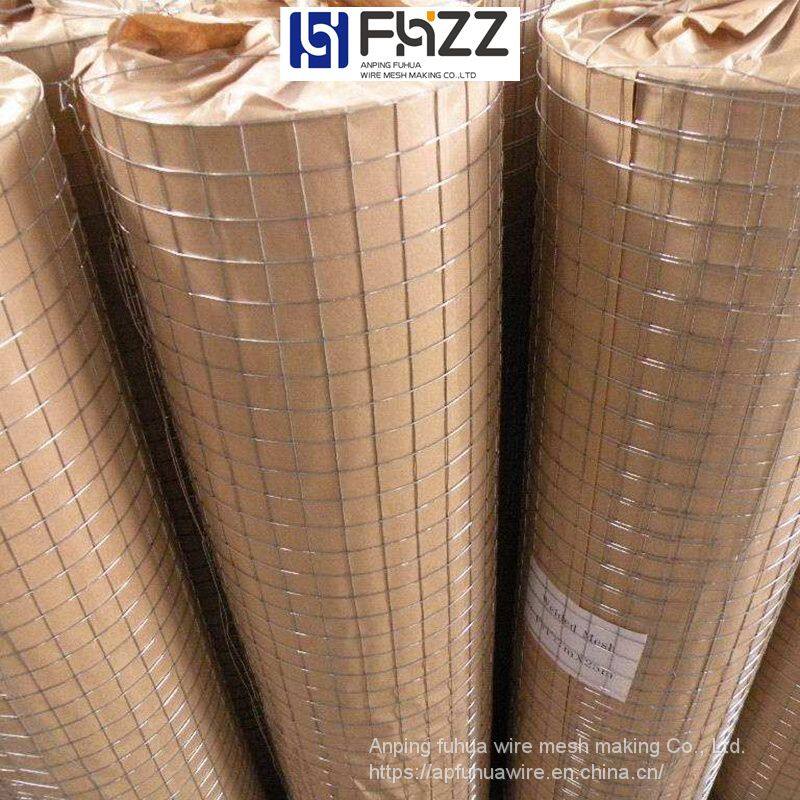

Galvanized Welded Wire Mesh Rolls for Farming:
