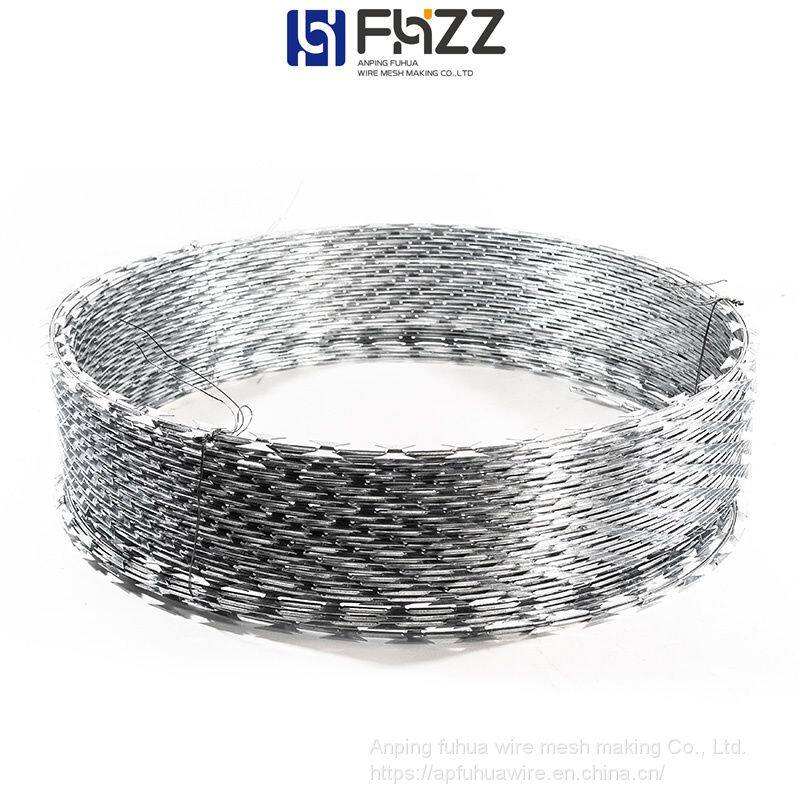

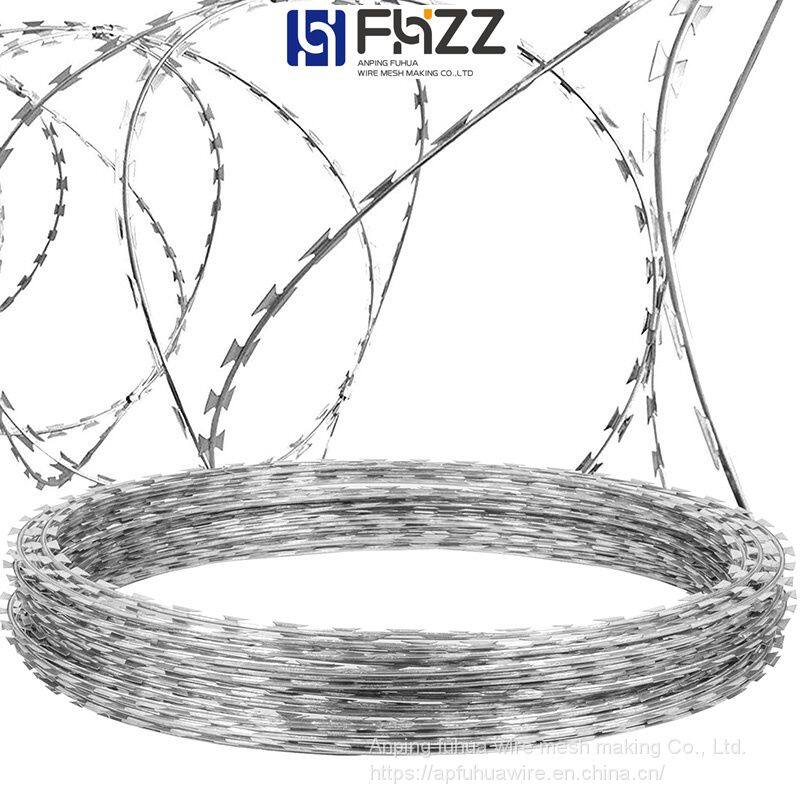

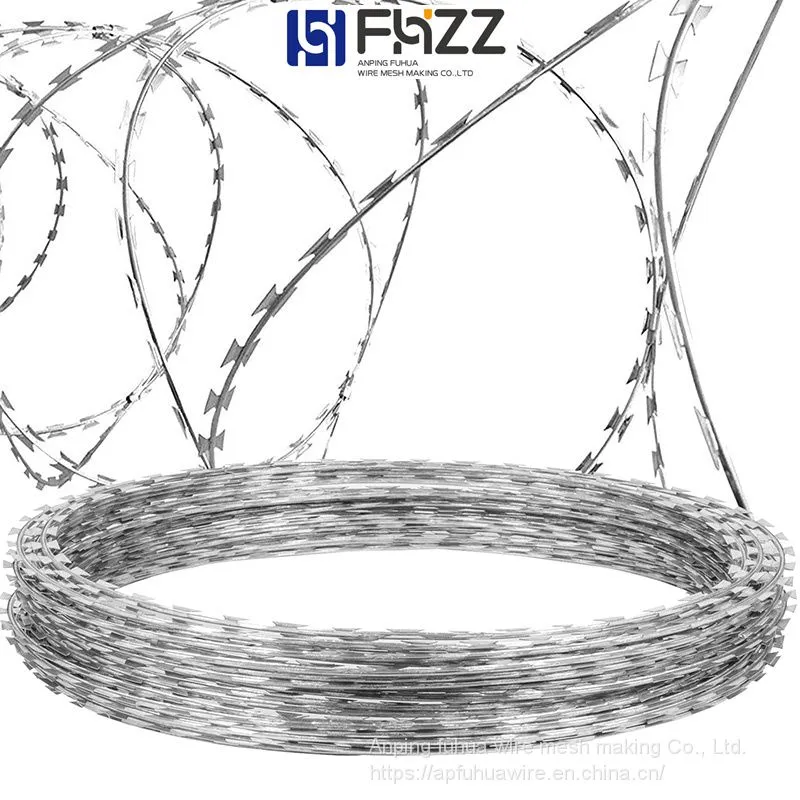

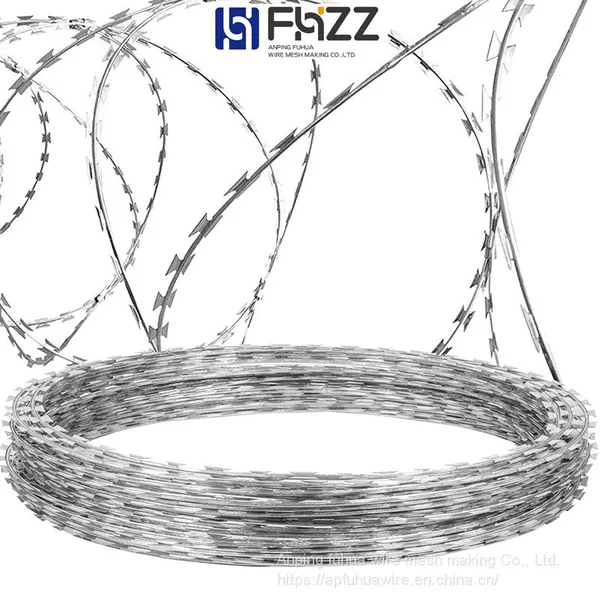

Double Spiral Cross Razor Barbed Wire Barrier with Concertina Coil for Border Line
A country's borderline area is usually sparsely populated and in a weak area of government supervision, but often has a military defense focus. The political, economic and military environment of neighboring countries usually have a direct impact on the lives of their own military and civilians near the border. Therefore, the borderline area is a country needs to focus on the supervision and protection of the area.
The razor barbed wire fence is widely used in the border line to prevent overturning isolation protection barrier. Its outstanding advantages are good protection effect through reasonable design, simple and fast deployment, long service life after surface anti-corrosion technology treatment, easy maintenance and replacement, especially suitable for the occasion of long border line.

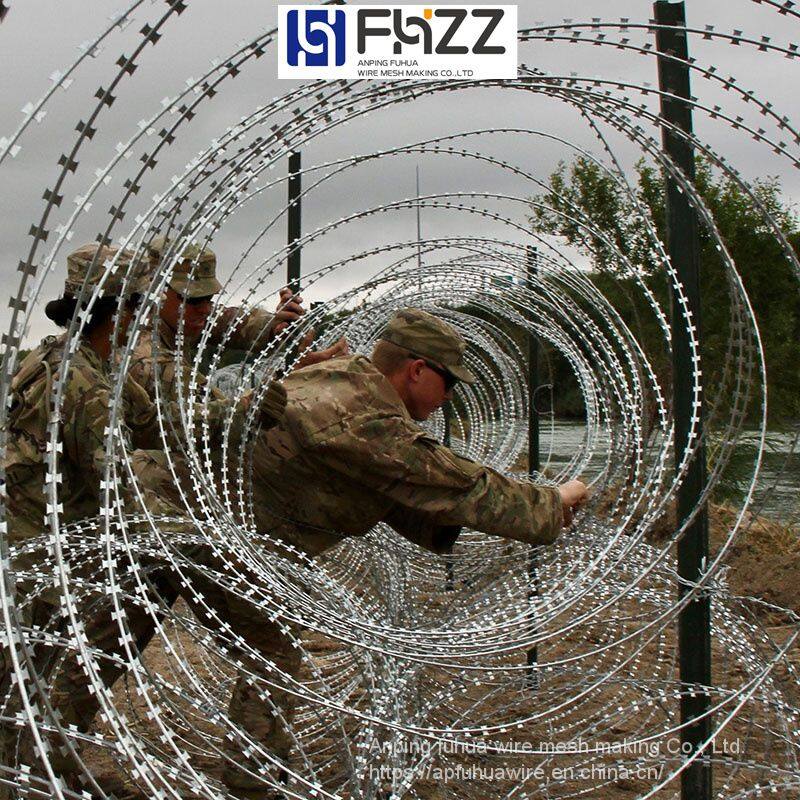

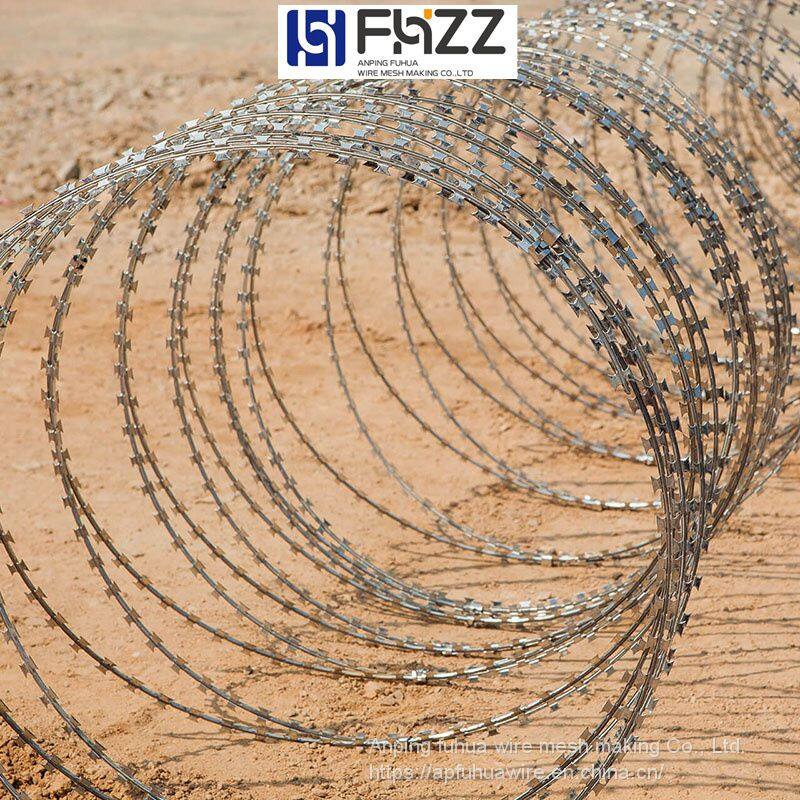

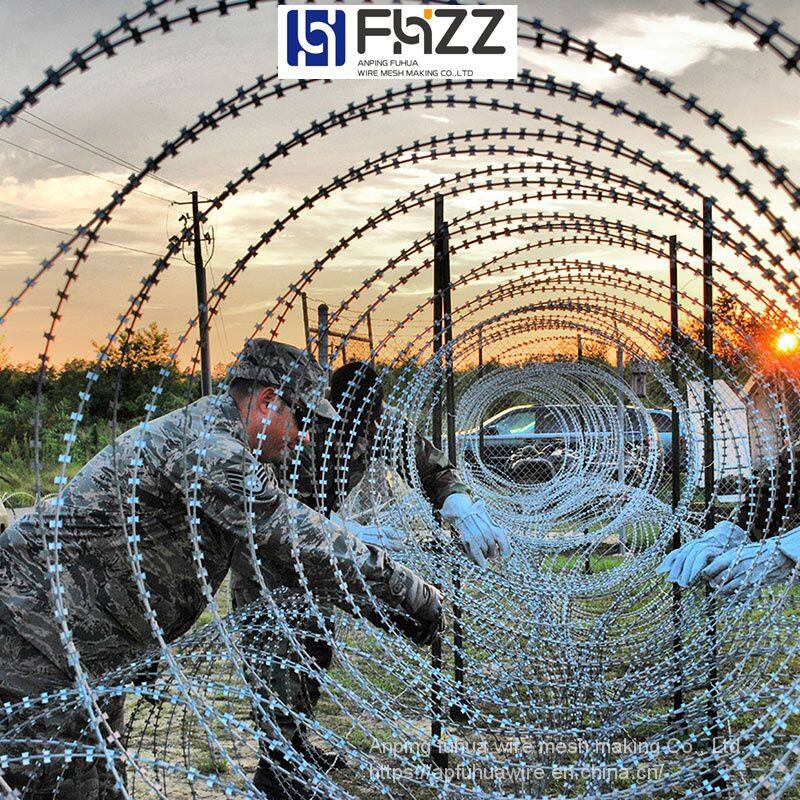

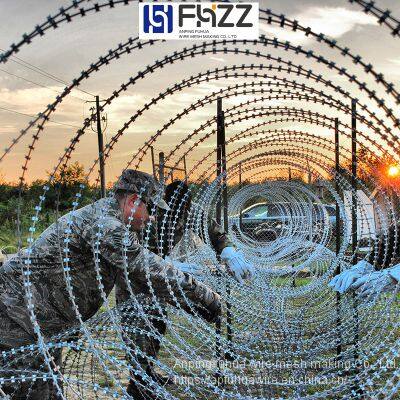

Border line with razor barbed wire fence generally uses large diameter knife circle of double spiral razor barbed wire, such as 700mm-980mm circle warp. Can be multi-circle stacking arrangement, or small and large circle double circle stacking, in order to improve the ability to prevent overturning. Knife barbed model selection principles are high hardness, knife sharp, knife spacing should be densely arranged, anti-corrosion treatment process should be able to adapt to the local geographical environment and meet the expected service life requirements. Double spiral razor barbed wire fence, through the appropriate number of snaps will be adjacent to the knife circle in the circumferential length of the direction of equal intervals fixed, the material arrives at the construction site in accordance with the design of the installation spacing stretch to form an accordion-type spiral cross mesh cage shape. The larger the circle is designed, the more snaps should be appropriate to increase the number of snaps.
Razor barbed wire standard knife barbed models are listed below, the design is to give preference to standard models.
Barb Specifications of Razor Barbed Wire | |||||
Model |
Thickness |
Core Dia. |
Barb Length |
BarbWidth |
BarbSpacing |
BTO-10 |
0.5 ± 0.05 |
2.5 ± 0.1 |
10 ± 1 |
13 ± 1 |
26 ± 1 |
BTO-12 |
12 ± 1 |
15 ± 1 |
|||
BTO-18 |
18 ± 1 |
35 ± 1 |
|||
BTO-22 |
22 ± 1 |
||||
BTO-28 |
28 ± 1 |
53 ± 1 |
|||
BTO-30 |
30 ± 1 |
21 ± 1 |
54 ± 1 |
||
CBT-60 |
0.6 ± 0.05 |
60 ± 2 |
32 ± 1 |
102 ± 1 |
|
CBT-65 |
65 ± 2 |
21 ± 1 |
|||
Razor barbed wire standard circle warp, circle number, the number of snaps corresponding table.
Coil Dia. and Loops of Razor Barbed Wire | ||||
Coil Dia. |
Loops |
Deployed Length |
Model of Barb |
Note |
450mm |
33 |
7-8m |
CBT-60.65 |
Single Coil |
500mm |
56 |
12-13m |
||
700mm |
56 |
13-14m |
||
960mm |
56 |
14-15m |
||
450mm |
56 |
8-9m (3 Clips) |
BTO-10.12.18.22.28.30 |
Cross Type |
500mm |
56 |
9-10 M (3 Clips) |
||
600mm |
56 |
10-11M (3 Clips) |
||
600mm |
56 |
8-10 M (5 Clips) |
||
700mm |
56 |
10-12M (5 Clips) |
||
800mm |
56 |
11-13M (5 Clips) |
||
900mm |
56 |
12-14M (5 Clips) |
||
960mm |
56 |
13-15M (5 Clips) |
||
980mm |
56 |
14-16M (5 Clips) |
||
