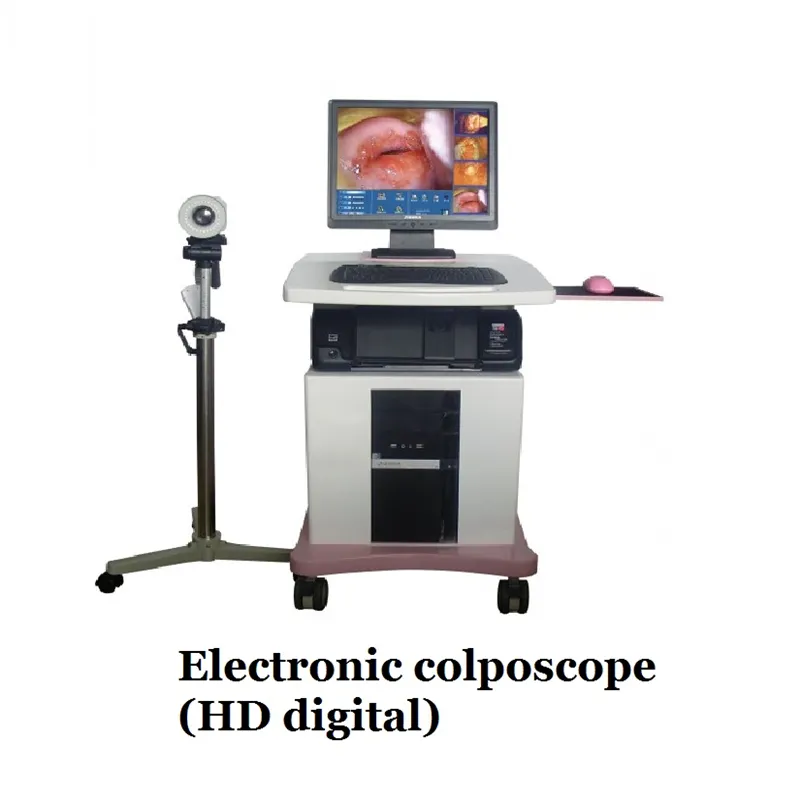

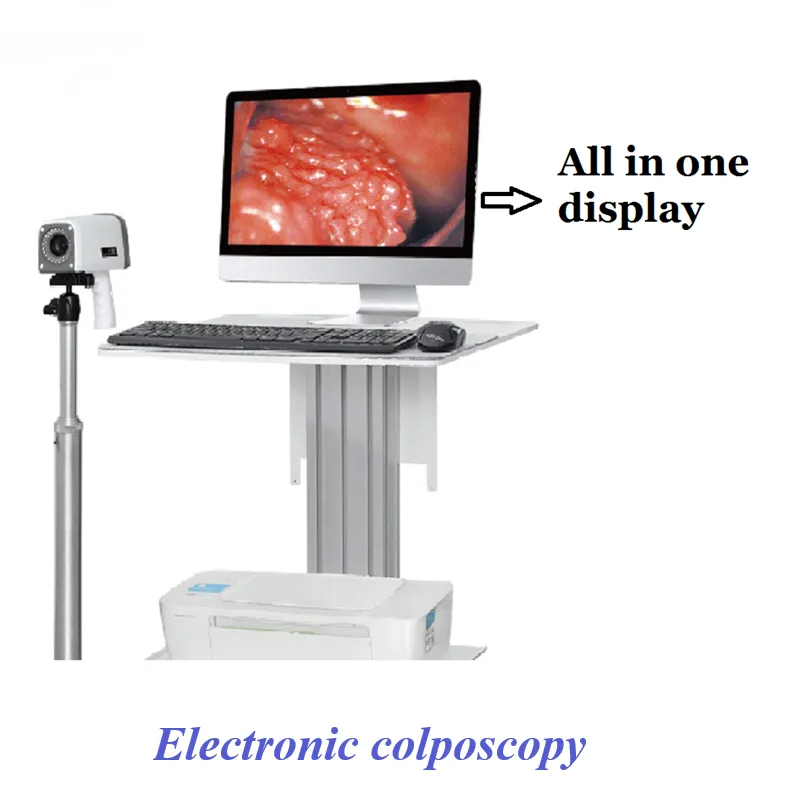

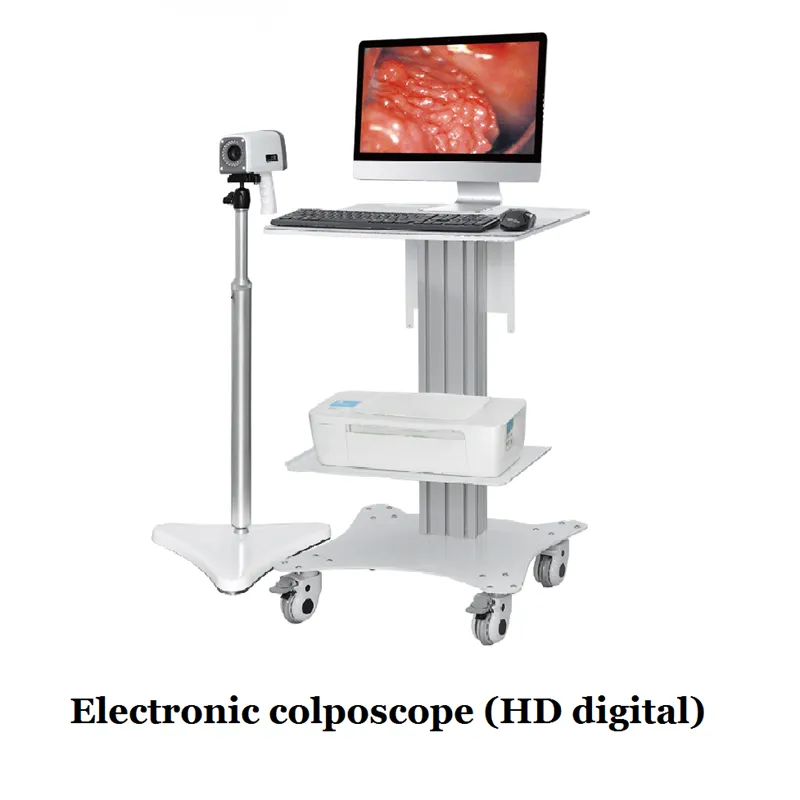

High definition digital electronic colposcope
- 100 Piece / Pieces per Month
- qingdao
- T/T
- 5 days
You May Like
Product Details
| Brand Name | ZONGLIAN | Place of Origin | China | |
| Model Number | ZL603 | Type | Other, endoscope |
1
Product Description

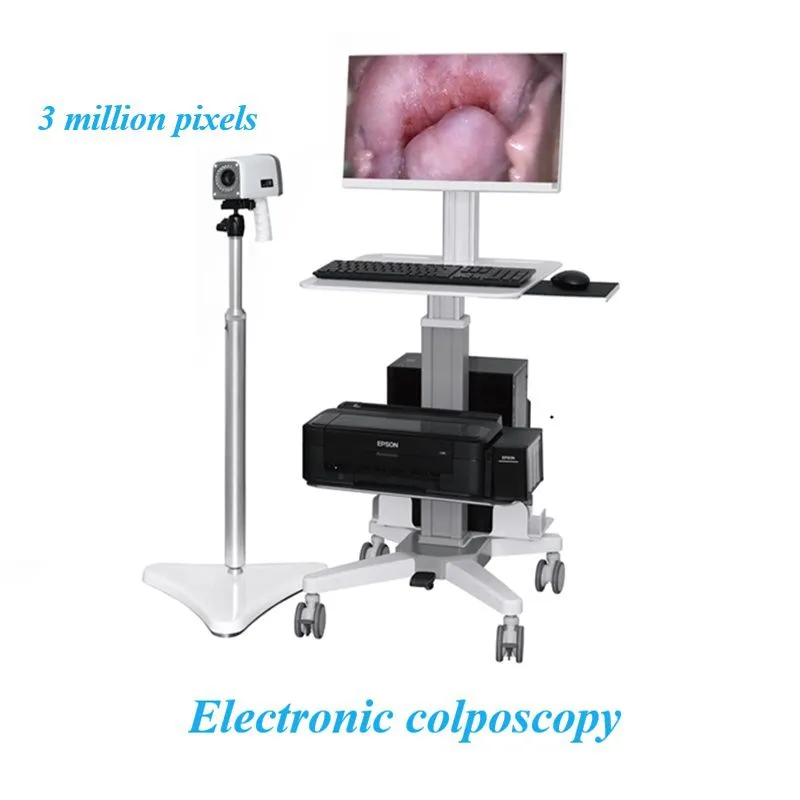

Technical parameters of full HD digital electronic colposcopy
Model: ZL603-300
(1) Technical parameters
1. Lens clarity: SONY1/2.8 inch original high-resolution, high-definition color digital C0MS all-in-one machine, resolution ≥ 3.27 million pixels.
2. Resolution: 1000 lines or more, F1.4,
3. The optimal working distance of the lens is 100-450mm.
4. Field of view: φ= 2.5-250mm.
5. Lens focusing distance: 300-1000mm.
6. Lens illumination: greater than 1400Lux.
7. Lens magnification: optical 20x, digital 12x.
8. Lens focusing method: DSP dynamic automatic focusing system, automatic white balance, color digital restoration, combined with manual focusing adjustment.
9. Lens color balance: automatic or manual adjustment.
10. Lens signal-to-noise ratio: ≥ 50 decibels.
11. Ultra close range camera: Satisfactory imaging can be achieved beyond 5mm.
12. Image display method: 21.5-inch color LCD display.
13. Image printing method: Supports color printing on regular copy paper, inkjet printing paper, and premium photo paper.
14. Image acquisition methods: foot switch, mouse, and keyboard
15. Lens light source type: Multi point annular shadowless ultra white high brightness LED cold light source, color temperature 5600K, with the characteristics of low temperature rise, high brightness, and long lifespan. The illumination is uniform, the colors are bright and realistic, and the light source does not generate heat. The average service life is more than 50000 hours.
16. System data exchange interface: CD-ROM, external USB device
17. System image storage capacity: greater than 1.2 million images. The larger the hard disk capacity, the more storage it has.
18. Number of consecutive images collected each time: default to 20, can also be freely set.
19. Video recording function: with continuous recording, movie playback, and image capture function
20. System power supply voltage: AC220 ± 22V.
21. Rated power of the system: 300W.
22. System operating temperature: 0 ℃~40 ℃.
23. Lens bracket lifting distance: 60-150mm.
24. Image processing system: Dell original machine: CPU: Dual core memory: 4G hard drive: 500G

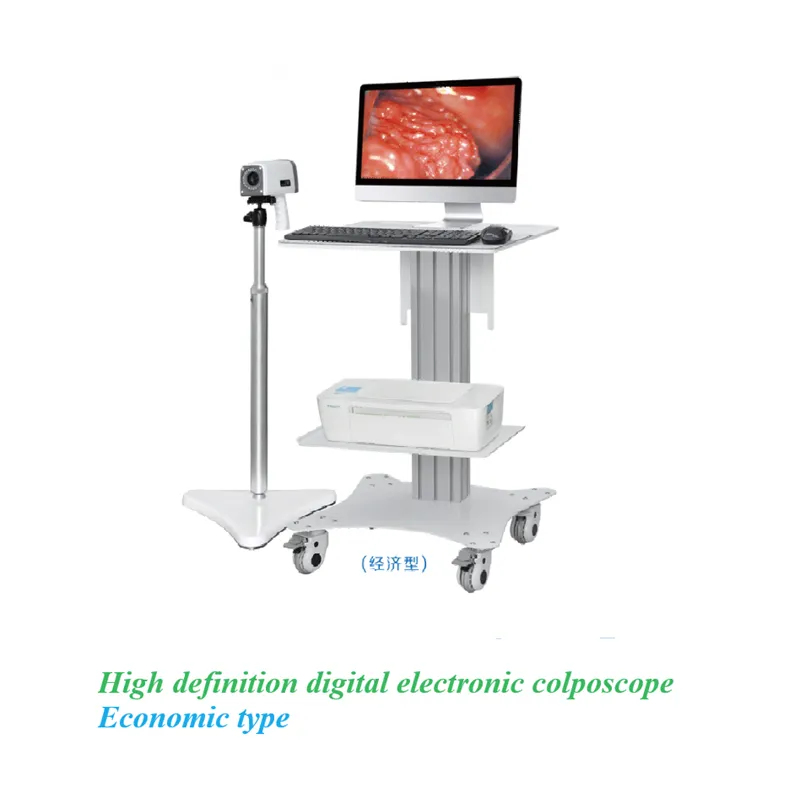

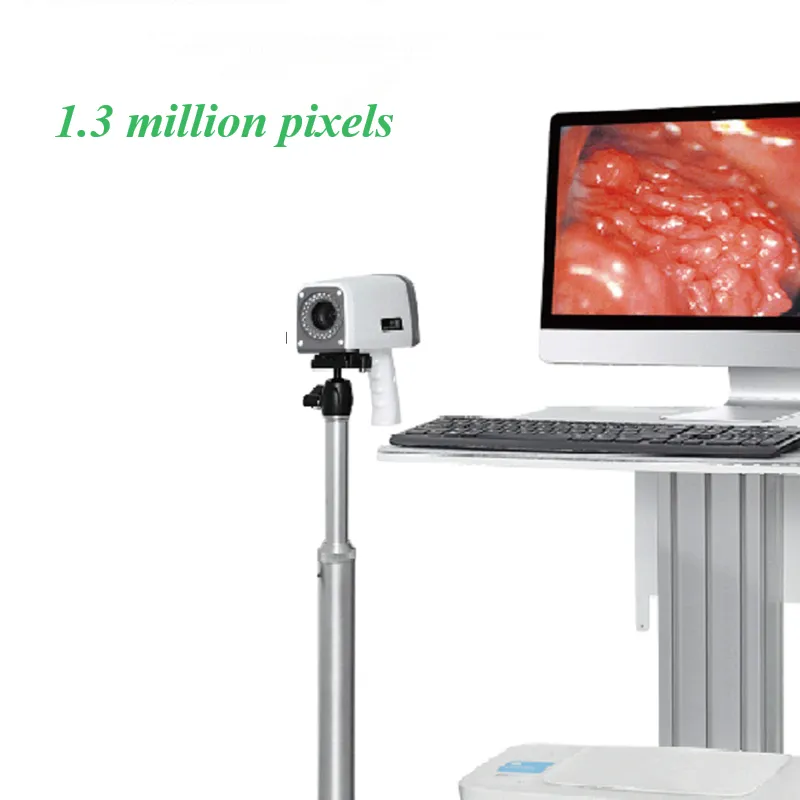

Technical parameters of high-definition digital electronic colposcopy
Model: ZL603-130
(1) Technical parameters
1. Lens clarity: SONY original high-resolution color digital CCD all-in-one machine, resolution ≥ 1.3 million pixels, 1/3 inch.
2. Resolution: 700 lines or more, F1.4,
3. Lens depth of field: 100-350mm.
4. Field of view: φ= 2.5-250mm.
5. Lens focusing distance: 300-1000mm.
6. Lens illumination: greater than 1400Lux.
7. Lens magnification: 12 times optical magnification and 18 times electronic magnification.
8. Lens focusing method: DSP dynamic automatic focusing system, automatic white balance, color digital restoration, combined with manual focusing adjustment.
9. Lens color balance: automatic or manual adjustment.
10. Lens signal-to-noise ratio: ≥ 50 decibels.
11. Ultra close range camera: Satisfactory imaging can be achieved beyond 5mm.
12. Image display method: 18.5-inch LCD display.

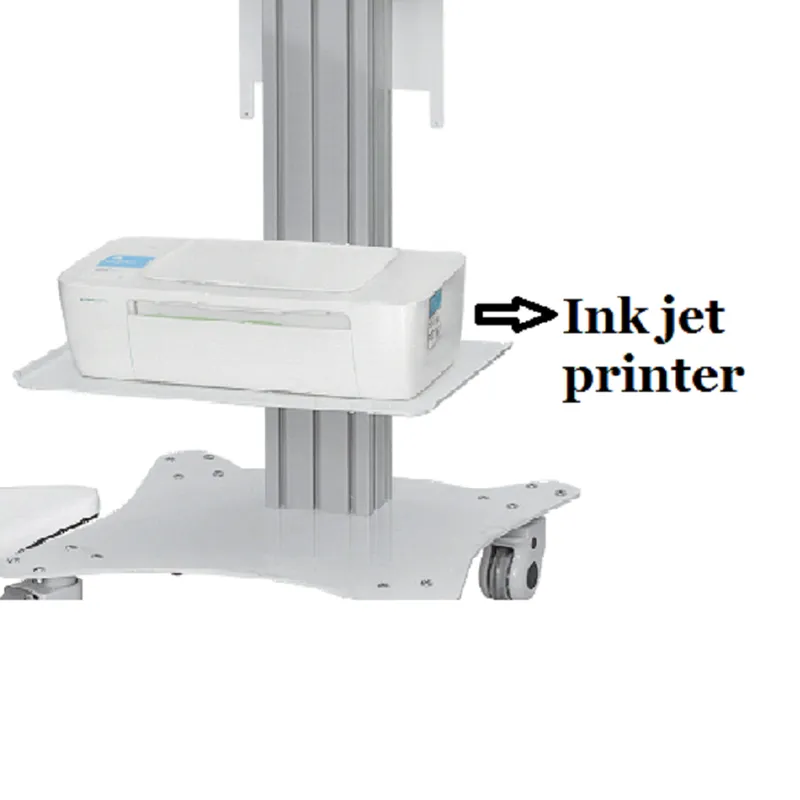

13. Image printing method: The color inkjet printer supports color printing on regular copy paper, inkjet printing paper, and premium photo paper.
14. Image acquisition methods: foot switch, mouse, and keyboard
15. Lens light source type: Multi point annular shadowless ultra white high brightness LED cold light source, color temperature 5600K; It has the characteristics of low temperature rise, high brightness, and long service life, uniform illumination, bright and realistic colors, and the light source does not generate heat. The average service life is over 50000 hours.
16. System data exchange interface: CD-ROM, external USB device
17. System image storage capacity: greater than 1.2 million images. The larger the hard disk capacity, the more storage it has.
18. Number of consecutive images collected each time: default to 20, can also be freely set.
19. Video recording function: with continuous recording, movie playback, and image capture function
20. System power supply voltage: AC220 ± 22V.
21. Rated power of the system: 300W.
22. System operating temperature: 0 ℃~40 ℃.
23. Lens bracket lifting distance: 60-150mm.
24. Image processing system: CPU: Dual core memory: 4G Hard disk: 500G
