Hot-dip Galvanized or Stainless Steel Concertina Long Razor Barbed Tape Obstacles

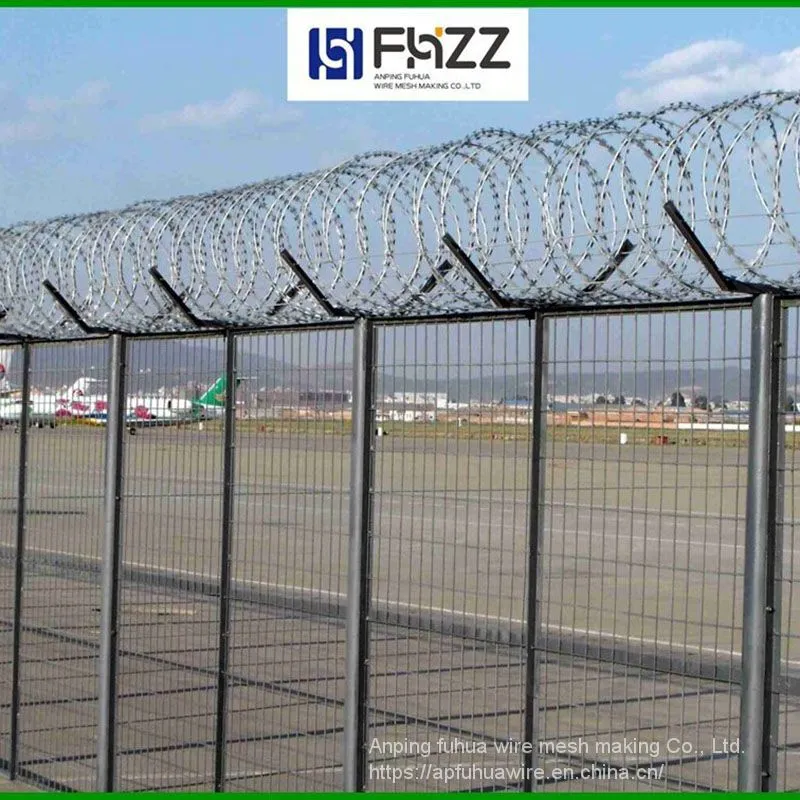

Applications:
Razor Barbed Tape can be fitted to all surfaces such as gates, fences, walls. The Barbed Tape is manufactured in different sizes and consists of razor sharp blades which are potentially dangerous for an intruder trying to breach the perimeter.

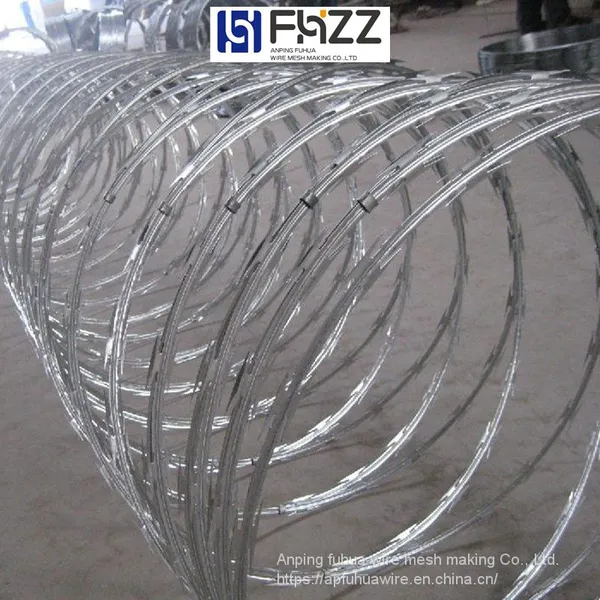

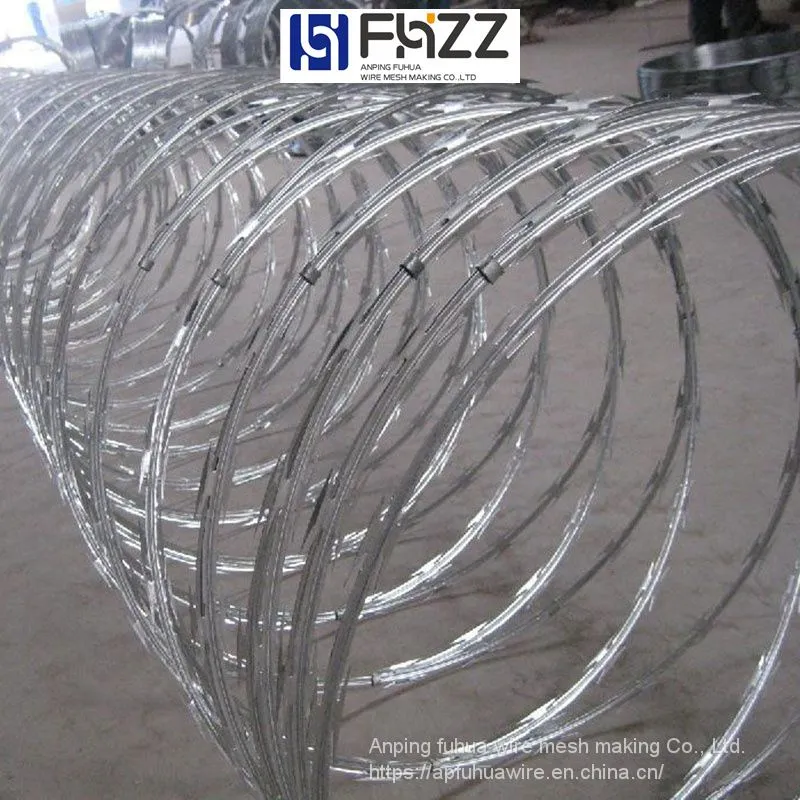

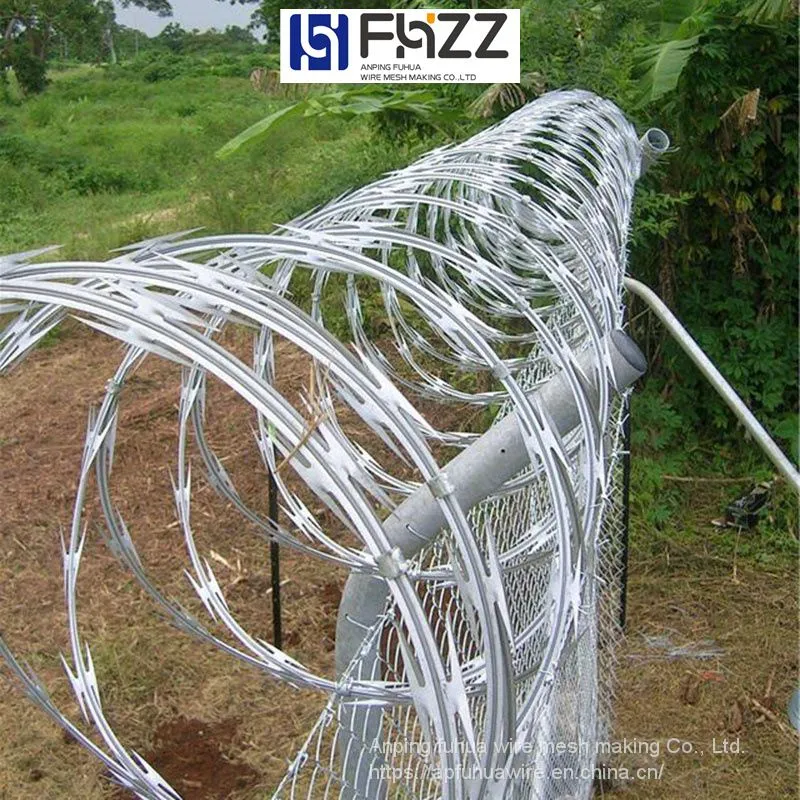

Concertina Coil:
The concertina-shaped razor barbed wire forms a three-dimensional anti-span barrier with excellent anti-climbing and anti-theft features. It is suitable for border defense, post, industry, agriculture, fence, roof, fence, building, etc. Concertina razor barbed wire is the commonly used form at present.
Flat Wrap:
Flat wrap razor wire is suitable for applications where the size of the installation location is limited and forms a flat anti-span barrier, featuring a fence that does not protrude from either front or rear. Typical applications are on residential fences, precast concrete walls, gates and fences.
Razor Wire Specification:
Razor Wire Specification |
|||||||
Model |
Thickness |
Wire diameter |
Barb Length |
Barbed Width |
Barb Spacing |
||
BTO-10 |
0.5+/-0.05 mm |
2.5+/-0.1mm |
10+/-1mm |
13+/-1mm |
26+/-1mm |
||
BTO-12 |
0.5+/-0.05 mm |
2.5+/-0.1mm |
12+/-1mm |
15+/-1mm |
26+/-1mm |
||
BTO-18 |
0.5+/-0.05 mm |
2.5+/-0.1mm |
18+/-1mm |
15+/-1mm |
38+/-1mm |
||
BTO-22 |
0.5+/-0.05 mm |
2.5+/-0.1mm |
22+/-1mm |
15+/-1mm |
38+/-1mm |
||
BTO-28 |
0.5+/-0.05 mm |
2.5+/-0.1mm |
28+/-1mm |
15+/-1mm |
53+/-1mm |
||
BTO-30 |
0.5+/-0.05 mm |
2.5+/-0.1mm |
30+/-1mm |
21+/-1mm |
54+/-1mm |
||
CBT-60 |
0.6+/-0.05 mm |
2.5+/-0.1mm |
60+/-2mm |
32+/-1mm |
102+/-1mm |
||
CBT-65 |
0.3+/-0.05 mm |
2.5+/-0.1mm |
65+/-2mm |
21+/-1mm |
102+/-1mm |
||
Barbed Tape Wire Specification:
Barbed Tape Wire Specification | ||||
Outside diameter |
No. of loops |
The utmost effective length |
Type |
Notes |
450 mm |
33 |
7 - 8 M |
CBT 60.65 |
Single coil |
500 mm |
56 |
12 - 13 M |
CBT 60.65 |
Single coil |
700 mm |
56 |
13 - 14 M |
CBT 60.65 |
Single coil |
960 mm |
56 |
14 - 15 M |
CBT 60.65 |
Single coil |
450 mm |
56 |
8 - 9 M (3 CLIPS) |
BTO - 10.12.18.22.28.30 |
Cross type |
500 mm |
56 |
9 - 10 M (3 CLIPS) |
BTO - 10.12.18.22.28.30 |
Cross type |
600 mm |
56 |
10 - 11 M (3 CLIPS) |
BTO - 10.12.18.22.28.30 |
Cross type |
600 mm |
56 |
8 - 10 M (5 CLIPS) |
BTO - 10.12.18.22.28.30 |
Cross type |
700 mm |
56 |
10 - 12 M (5 CLIPS) |
BTO - 10.12.18.22.28.30 |
Cross type |
800 mm |
56 |
11 - 13 M (5 CLIPS) |
BTO - 10.12.18.22.28.30 |
Cross type |
900 mm |
56 |
12 - 14 M (5 CLIPS) |
BTO - 10.12.18.22.28.30 |
Cross type |
960 mm |
56 |
13 - 15 M (5 CLIPS) |
BTO - 10.12.18.22.28.30 |
Cross type |
980 mm |
56 |
14 - 16 M (5 CLIPS) |
BTO - 10.12.18.22.28.30 |
Cross type |
