Home > Instruments & Meters > Meter for Electricity > Energy Meter & Power Meter > DFUN DFPM91 Mini Meter With RS485 Single Phase Digital Energy Meter for Solor Inverter
DFUN DFPM91 Mini Meter With RS485 Single Phase Digital Energy Meter for Solor Inverter
US$ 18 - 25
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DFUN
Place of Origin:
China
Phase:
Single Phase
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhuhai
Delivery Detail:
3 days
Related Products
-
DFUN DFPM91 for Solor System Inverter RS485 Single Phase Din-rail Energy Meter RS485 Electric Power MeterUS$ 18 - 25MOQ: 1 Piece -
DFUN DFPM93 Three Phase Power Energy Meter With Modbus RS485US$ 48 - 55MOQ: 1 Piece
-
DFUN DFPM93 RS485 AC DIN Rail Three Phase Power Monitoring Meter With Multi Tariff Energy MeterUS$ 48 - 55MOQ: 1 Piece
-
DFUN DFPM93 Din Rail Digital 63A Energy Meter 3 PhaseUS$ 48 - 55MOQ: 1 Piece
-
DFUN DFPM93 Din Rail Multi Function Three Phase Electric Energy MeterUS$ 48 - 55MOQ: 1 Piece
Brand Name
DFUN
Place of Origin
China
Phase
Single Phase
Output Voltage
220 V or 120V
Operating Temperature
-20℃~ +55 ℃
Dimensions
100x36x65mm
Display Type
Digital Only
Accuracy Class
Class 1.0
Measuring Energy Range
6+1 Digits LCD Display (999999.9 kWh)

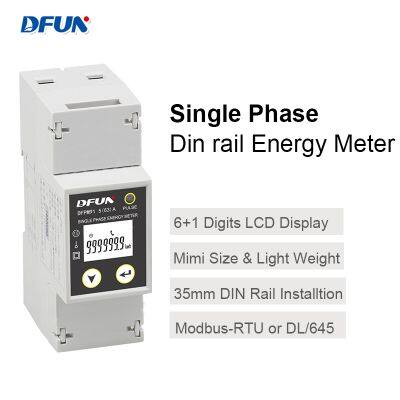

DFUN DFPM91 Mini Meter with RS485 Single Phase Digital Energy Meter for solor Inverter
. Suit for 110v, 120V, 220v, 230v, 240V AC low voltage system

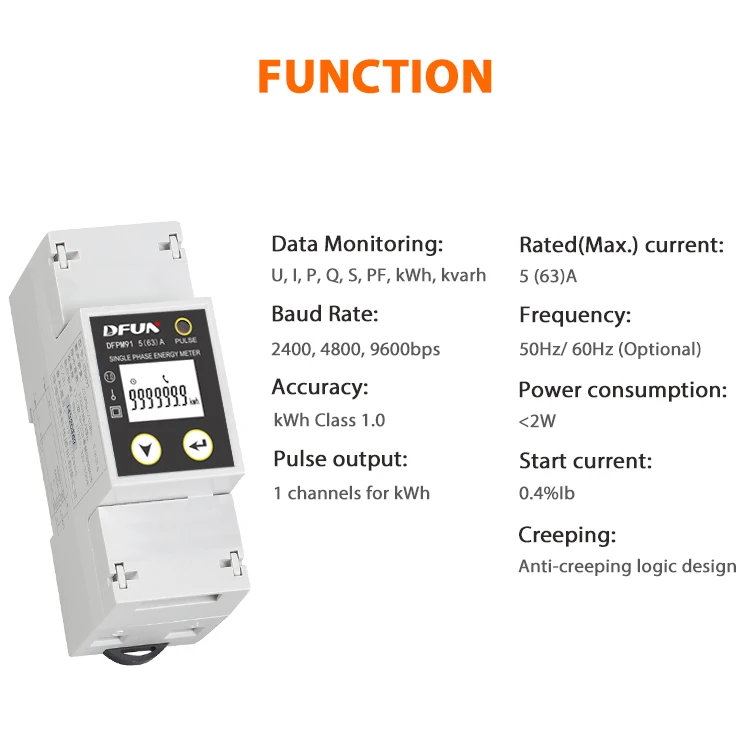

. Measure U, I, P, Q, S, PF, kWh, kvarh, LCD display U, I, P, kWh
. 6 +1 digits LCD display (999999.9 kWh)
. 6 +1 digits LCD display (999999.9 kWh)
. LED indicates pulse output
. Password protection
. One key for up/down page, one keyfor programming
. Small size: 100*36*65mm

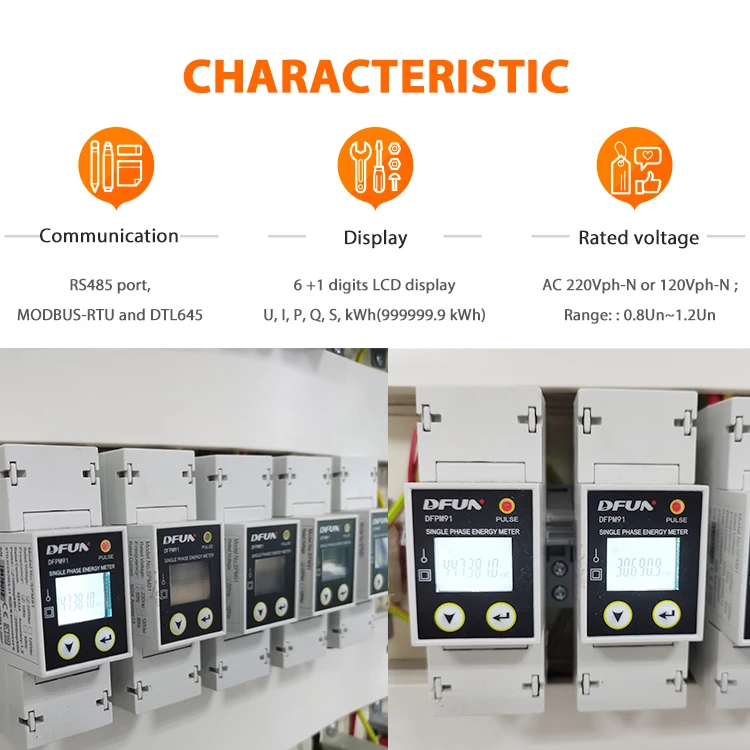

. RS485 port , MODBUS-RTU or DLT645 protocol (selectable)
. 35mm DIN rail installin, standard DIN ED5002
. 35mm DIN rail installin, standard DIN ED5002
. Standard: IEC62053-21
