Home > Products > Din Rail Energy Meter > DFUN DFPM93 3 Phase Power Meter Din Rail Electricity Energy Meter
DFUN DFPM93 3 Phase Power Meter Din Rail Electricity Energy Meter
USD $48 - $55
/ Piece
1 Piece(Min.Order)
- 1000 Piece / Pieces per Month
- Zhuhai
- Credit Card PayPal
- 3 days
You May Like
-
Acrel ADF400L-3D 3 circuits single phase 10(80)A High accuracy
-
Acrel ADF400L-4H Multi Circuit Electrical Instruments 4 channel 3 phase 3*1(6)A High installation flexibility
-
Acrel Multi Circuit Electrical Instruments 2 channel 3 phase 3*10(80)A ADF400L-2S din rail
-
Acrel din rail Multi Circuit Electrical Instruments 6 channel single phase 10(80)A High installation flexibility ADF400L-6D
-
Acrel 6 channel three phase 3*1(6)A High installation flexibility din rail ADF400L-6H Multi Circuit Electrical Instruments
-
Acrel ADL3000-E Electrical Measuring Instrument 3 Phase Digital Energy Meter support 2-31st
Product Details
| Brand Name: | DFUN | Place of Origin: | China | Phase: | Three Phase |
| Output Voltage: | 110V, 120V, 220V, 230V, 240V AC | Operating Temperature: | 20℃~ +55 ℃ | Dimensions: | 72*100*65mm |
| Display Type: | Digital Only | Accuracy Class: | Class 1.0 | Measuring Energy Range: | 7+1 digits LCD (9999999.9 kWh) |
Product Description

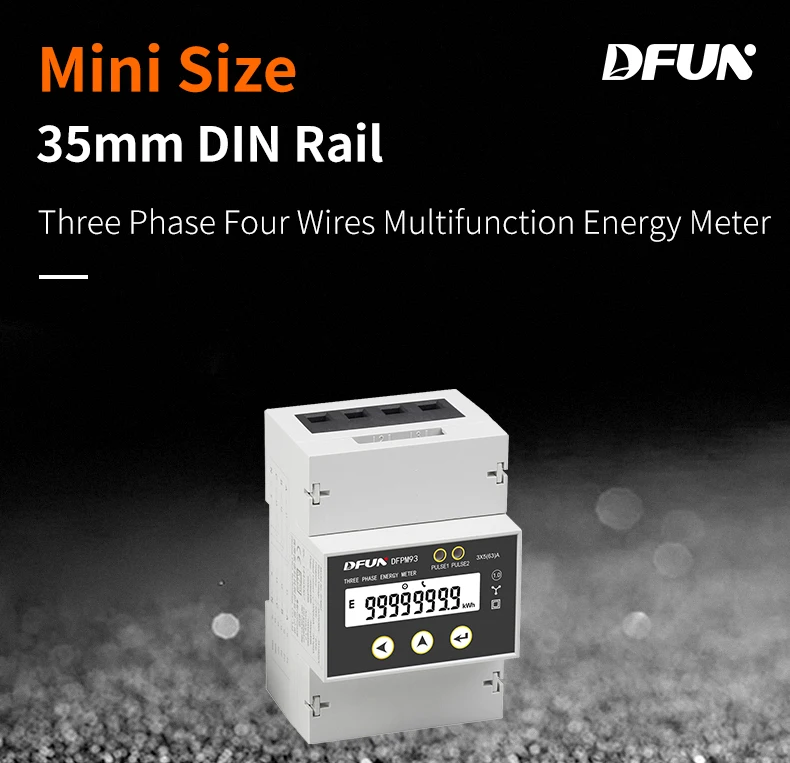

DFUN DFPM93 3 Phase Power Meter Din Rail Electricity Energy Meter
- Technical Specification -
| Rated current | Direct: 5(63)A Or 5(6)A via CT |
| Rated(Max.) current | Direct: 5(63)A or 5(6)A via CT |
| Rated voltage | AC 220V or 120V |
| Communication | RS485 port, MODBUS-RTU / DL/T645 |
| Frequency | 50Hz/ 60Hz (Optional) |
| Measuring Energy Range | 0~9999999.9 kWh |
| Dimensions | 72*100*65mm (L*W*H) |
| Connection mode | 3P 4W |
| Power Consumption | <2W |
| Baud Rate | 2400, 4800, 9600bps (Default) |
| Operating temperture | -20℃~+55℃ |
| Name | DFUN DFPM93 Three Phase Power Energy Meter with Modbus RS485 |

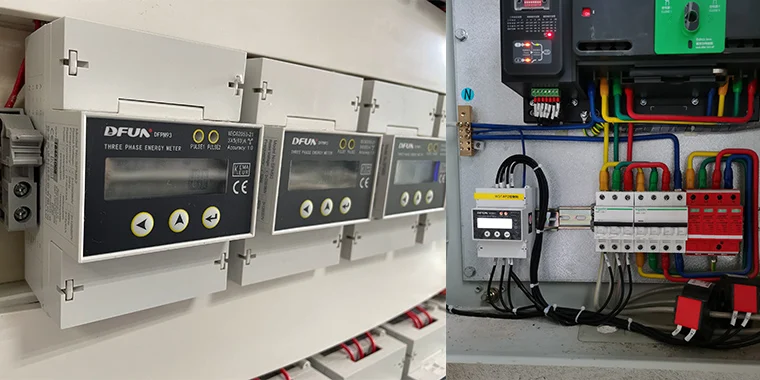

- Application -
