Home > Instruments & Meters > Meter for Electricity > Energy Meter & Power Meter > DFUN DFPM93 Din Rail Multi Function Three Phase Electric Energy Meter

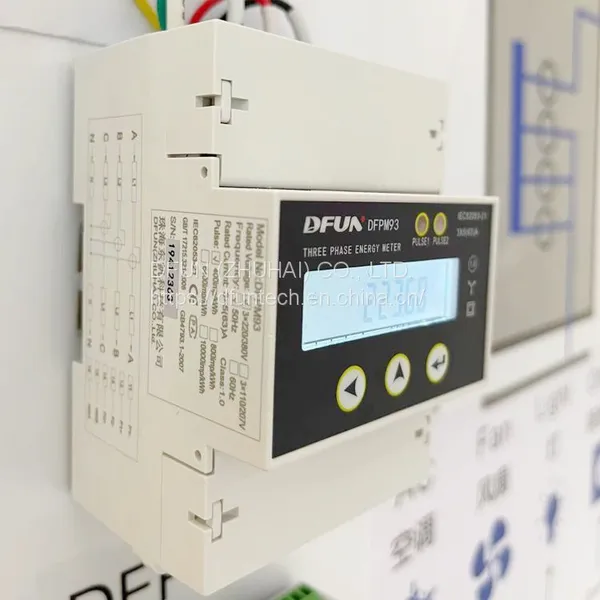

DFUN DFPM93 Din Rail Multi Function Three Phase Electric Energy Meter
US$ 48 - 55
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DFUN
Place of Origin:
China
Phase:
Three Phase
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhuhai
Delivery Detail:
3 days
Related Products
-
DFUN DFPM93 3 Phase Power Meter Din Rail Electricity Energy MeterUS$ 48 - 55MOQ: 1 Piece -
DFUN DFPM93 Modbus Data Record Three Phase Multifunction Energy MeterUS$ 48 - 55MOQ: 1 Piece
-
DFUN DFPM93 RS485 Modbus Data Record 63A or 5A 3 Phase Energy Kwh MeterUS$ 48 - 55MOQ: 1 Piece
-
DFUN DFPM91 Din-rail Smart 5(63)A Digital Meter Single Phase Electricity Energy MeterUS$ 18 - 25MOQ: 1 Piece
-
DFUN DFPM91 Din-Rail Multifunction Electricity Energy Meter for InverterUS$ 18 - 25MOQ: 1 Piece
Brand Name
DFUN
Place of Origin
China
Phase
Three Phase
Output Voltage
110V, 120V, 220V, 230V, 240V AC
Operating Temperature
20℃~ +55 ℃
Dimensions
72*100*65mm
Display Type
Digital Only
Accuracy Class
Class 1.0
Measuring Energy Range
7+1 digits LCD (9999999.9 kWh)
DFUN DFPM93 Din Rail Multi Function Three Phase Electric Energy Meter
- Technical Specification -
| Rated current | Direct: 5(63)A Or 5(6)A via CT |
| Rated(Max.) current | Direct: 5(63)A or 5(6)A via CT |
| Rated voltage | AC 220V or 120V |
| Communication | RS485 port, MODBUS-RTU / DL/T645 |
| Frequency | 50Hz/ 60Hz (Optional) |
| Measuring Energy Range | 0~9999999.9 kWh |
| Dimensions | 72*100*65mm (L*W*H) |
| Connection mode | 3P 4W |
| Power Consumption | |
| Baud Rate | 2400, 4800, 9600bps (Default) |
| Operating temperture | -20℃~+55℃ |
| Name | DFUN DFPM93 Three Phase Power Energy Meter with Modbus RS485 |
