JIUWU ceramic membrane manufacturer, with its professional Ceramic membrane factory, is the largest ceramic membrane element producer and a world leader in cross flow filtration.

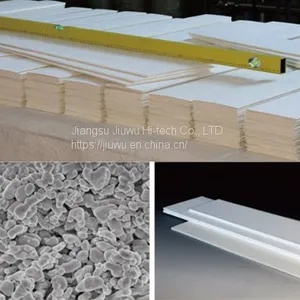

The flat sheet membrane module is a new type of high temperature plate porous ceramic membrane, which is prepared by high temperature sintering process using inorganic materials such as alumina. Compared with the organic film, ceramic flat membrane has the advantages of good chemical stability, good reliability, long service life and strong anti-pollution ability.
Advantages of ceramic flat sheet membrane
Long life and no degradation
Strong resistance to acid, alkali and to organic solvent; Suitable for all kinds of wastewater containing solvents and chemicals
Strong hydrophilic and better anti- pollution property
Better Mechanical properties, no broken wires phenomenon of hollow fiber membrane
Easy to wash lower cleaning frequency, suitable for all kinds of membrane cleaning methods
Low operating cost and energy saving
Flat Ceramic membrane specification
Length (mm) |
500-1100 |
Width (mm) |
110, 150, 250 |
Thickness (mm） |
3, 6 |
Area (m2) |
0.5 |
Membrane material |
Al2O3, ZrO2, TiO2 |
Pore diameter (μm) |
0.1 |
Pure water flux (m3/m2.h) |
0.5-1.0 |
pH |
0-14 |
Breaking strength (MPa) |
≥40 |
FCM Application area
Membrane Bioreactor (MBR)
Industrial wastewater treatment
Seawater desalination pretreatment
Municipal wastewater treatment
Domestic sewage treatment
Hospital wastewater treatment
Landfill leachate treatment
Pretreatment of RO system
Specification and parameters of flat sheet membrane module
Model |
2.5㎡ flat membrane module |
5㎡ flat membrane module |
50㎡ flat membrane module |
100㎡flat membrane module |
Size (L*W*H) mm |
460*400*900 |
750*560*170 |
1700*302*1790 |
1740*790*1700 |
Number |
10 |
46 |
100 |
200 |
Specification |
250*6*500 |
110*3*510 |
250*6*1000 |
250*6*1000 |
Weight (kg) |
26 |
32 |
800 |
1100 |
Frame material |
SUS304 |
|||
Aeration tube material |
PVC |
|||
Collection pipe |
PPR & DN32 |
PPR & DN32 |
PPR & DN50 |
PPR & DN50 |
Filtering method |
Negative pressure suction |
|||
Operation pH |
2-12 |
|||
Operation temperature |
≤ 60℃ |
|||
