As a leading Chinese Ceramic Membrane factory, JIUWU HI-TECH has been focusing on the R&D of advanced ceramic membrane technology.

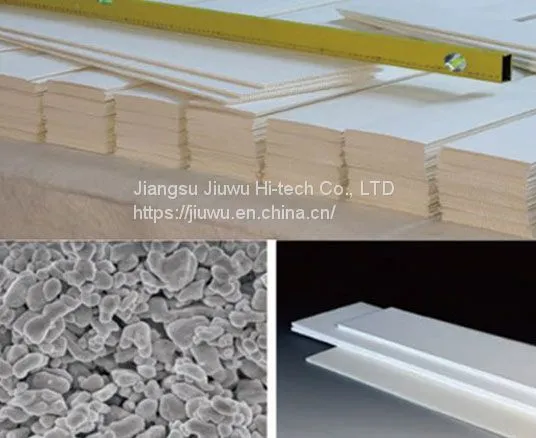

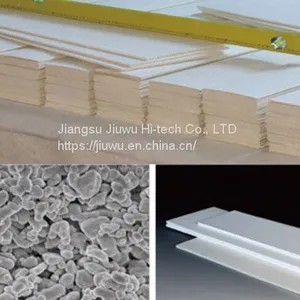

The ceramic flat sheet membrane is a new type of high temperature plate porous ceramic membrane, which is prepared by high temperature sintering process using inorganic materials such as alumina. Compared with the organic film, ceramic flat membrane has the advantages of good chemical stability, good reliability, long service life and strong anti-pollution ability.
Advantages of flat ceramic membrane
l Long life and no degradation
l Strong resistance to acid, alkali and to organic solvent; Suitable for all kinds of wastewater containing solvents and chemicals
l Strong hydrophilic and better anti- pollution property
l Better Mechanical properties, no broken wires phenomenon of hollow fiber membrane
l Easy to wash lower cleaning frequency, suitable for all kinds of membrane cleaning methods
l Low operating cost and energy saving
Flat Ceramic membrane specification
Length (mm) |
500-1100 |
Width (mm) |
110, 150, 250 |
Thickness (mm） |
3, 6 |
Area (m2) |
0.5 |
Membrane material |
Al2O3, ZrO2, TiO2 |
Pore diameter (μm) |
0.1 |
Pure water flux (m3/m2.h) |
0.5-1.0 |
pH |
0-14 |
Breaking strength (MPa) |
≥40 |
FCM Application area
l Membrane Bioreactor (MBR)
l Industrial wastewater treatment
l Seawater desalination pretreatment
l Municipal wastewater treatment
l Domestic sewage treatment
l Hospital wastewater treatment
l Landfill leachate treatment
l Pretreatment of RO system
Specification and parameters of flat sheet membrane module
Model |
2.5㎡ flat membrane module |
5㎡ flat membrane module |
50㎡ flat membrane module |
100㎡flat membrane module |
Size (L*W*H) mm |
460*400*900 |
750*560*170 |
1700*302*1790 |
1740*790*1700 |
Number |
10 |
46 |
100 |
200 |
Specification |
250*6*500 |
110*3*510 |
250*6*1000 |
250*6*1000 |
Weight (kg) |
26 |
32 |
800 |
1100 |
Frame material |
SUS304 |
|||
Aeration tube material |
PVC |
|||
Collection pipe |
PPR & DN32 |
PPR & DN32 |
PPR & DN50 |
PPR & DN50 |
Filtering method |
Negative pressure suction |
|||
Operation pH |
2-12 |
|||
Operation temperature |
≤ 60℃ |
|||
Advantages of Flat Plate Membrane
l Long life and no degradation
l Strong resistance to acid, alkali and to organic solvent; Suitable for all kinds of wastewater containing solvents and chemicals
l Strong hydrophilic and better anti- pollution property
l Better Mechanical properties, no broken wires phenomenon of hollow fiber membrane
l Easy to wash lower cleaning frequency, suitable for all kinds of membrane cleaning methods
l Low operating cost and energy saving
Flat Ceramic Membrane Specification
Length (mm) |
500-1100 |
Width (mm) |
110, 150, 250 |
Thickness (mm） |
3, 6 |
Area (m2) |
0.5 |
Membrane material |
Al2O3, ZrO2, TiO2 |
Pore diameter (μm) |
0.1 |
Pure water flux (m3/m2.h) |
0.5-1.0 |
pH |
0-14 |
Breaking strength (MPa) |
≥40 |
FCM Application Area
l Membrane Bioreactor (MBR)
l Industrial wastewater treatment (e.g. paper mill wastewater treatment)
l Seawater desalination pretreatment
l Municipal wastewater treatment
l Domestic sewage treatment
l Hospital wastewater treatment
l Landfill leachate treatment
l Pretreatment of RO system
Specification and Parameters of Flat Membrane Module
Model |
2.5㎡ flat membrane module |
5㎡ flat membrane module |
50㎡ flat membrane module |
100㎡flat membrane module |
Size (L*W*H) mm |
460*400*900 |
750*560*170 |
1700*302*1790 |
1740*790*1700 |
Number |
10 |
46 |
100 |
200 |
Specification |
250*6*500 |
110*3*510 |
250*6*1000 |
250*6*1000 |
Weight (kg) |
26 |
32 |
800 |
1100 |
Frame material |
SUS304 |
|||
Aeration tube material |
PVC |
|||
Collection pipe |
PPR & DN32 |
PPR & DN32 |
PPR & DN50 |
PPR & DN50 |
Filtering method |
Negative pressure suction |
|||
Operation pH |
2-12 |
|||
Operation temperature |
≤ 60℃ |
|||
