NPM-TT2 Multi-function Placement Chip Mounter Machine

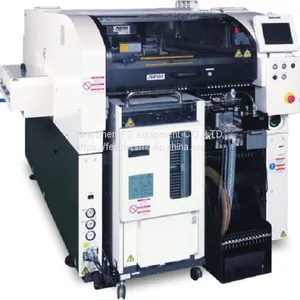

NPM-TT2 Multi-function Placement Chip Mounter Machine thumbnail-1
NPM-TT2 Multi-function Placement Chip Mounter Machine thumbnail-2

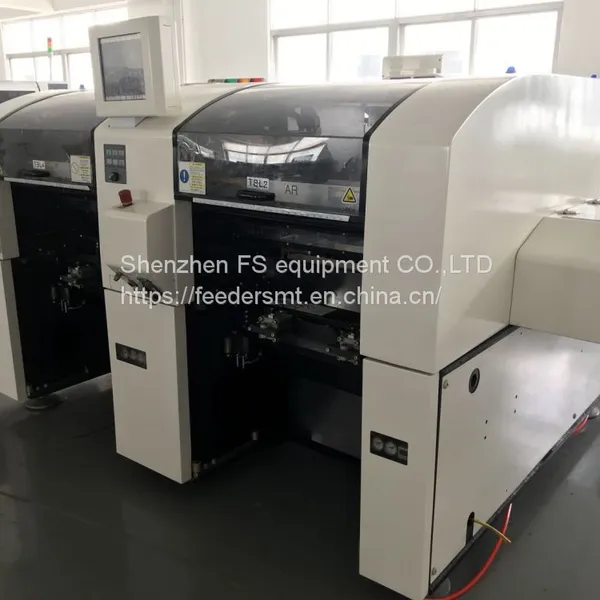

NPM-TT2 Multi-function Placement Chip Mounter Machine photo-1
NPM-TT2 Multi-function Placement Chip Mounter Machine photo-2
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Panasonic
Place of Origin:
Japan
Model Number:
NM-EMEJM1E
Contact Supplier Request Quote Chat Now
Shenzhen FS Equipment CO.,LTD
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Panasonic
Place of Origin Japan
Model Number NM-EMEJM1E

Panasonic NPM-TT2 multi-function placement machine parameters:


Model name: NPM-TT2

Model: NM-EMEJM1E


pcb pick and place NPM-TT2 can be directly connected to NPM-D3/W2 to form an SMT production line.

Placement heads of the NPM series (lightweight 8-nozzle placement head, 3-nozzle placement head V2)

The specifications of the panasonic mounter NPM supply department can be selected and changed

Adopt multifunctional recognition camera

High productivity with completely independent installation

Support pin automatic replacement function (optional)

Check options before suction

Transfer unit (optional)


PCB substrate size:

Single track type: L50mm*W50mm～L510mm*W590mm

Double track type: L50mm*W50mm～L510mm*W300mm

M substrate size:

Single track type: L50mm*W50mm～L510mm*W510mm

Double track type: L50mm*W50mm～L510mm*W260mm

Substrate replacement time

Single track type: 4.0s (when no components are mounted on the reverse side of the substrate)

Dual-track type: 0s*It cannot be 0s when the cycle time is less than 4.0s.

Power supply: three-phase AC200, 220, 380, 400, 420, 480V 2.5kVA

Air pressure source: Min.0.5MPa, 200L/min (A.N.R.)

Equipment size: W1300mm*D2798mm*H1444mm

Weight: 2690kg (Only for the main body: Varies depending on the configuration of the options.)


Placement head: 8-nozzle placement head (when equipped with two placement heads)

Mounting speed PC size: 36000cph (0.1s/chip)

M size: 34920cph (0.1s/chip)

Mounting accuracy (Cpk≥1): ±40μm/chip, ±30μm/QFP 12mm~32mm, ±50μm/QFP 12mm or less

Component size: 0402 chip*6~L32mm*W32mm*T12mm

Component supply Taping taping width: 4~56/72mm


Placement head: 3-nozzle placement head*5 (when equipped with 2 placement heads)

Mounting speed PC size: 14400cph (0.25s/chip) 11800cph (0.31s/QFP)

M size: 13968cph (0.26s/chip) 11446cph (0.32s/QFP)

Mounting accuracy (Cpk≥1): ±40μm/chip ±30μm/QFP

Component size: 0603 chip~L150mm*W25mm (diagonal 152)*T30mm

Component supply Taping taping width: 4~56/72/88/104mm


Component supply Taping: front and rear tray feeder specifications: Max.52 even

Front and rear exchange trolley specifications: Max.120 even

(Tape width: 4/8mm thin single feeder and double tape feeder, small reel)

Rod shape: front and rear tray feeder specifications: Max.6 even

Front and rear exchange trolley specifications: Max.14 even

Tray: Max.40 pieces (front side supply part: Max.20 pieces + rear side supply part: Max.20 pieces)


Product Tags: NPM-TT2 multi-function , Chip Mounter NPM , placement machine Panasonic
