Home > Instruments & Meters > Meter for Electricity > Energy Meter & Power Meter > ADW300 IoT 3-phase Wireless Smart Energy Meter 4G LTE, WiFi, LoRa, LoRaWAN, RS485 Current 3x1(6)A AC Meter Power Iot

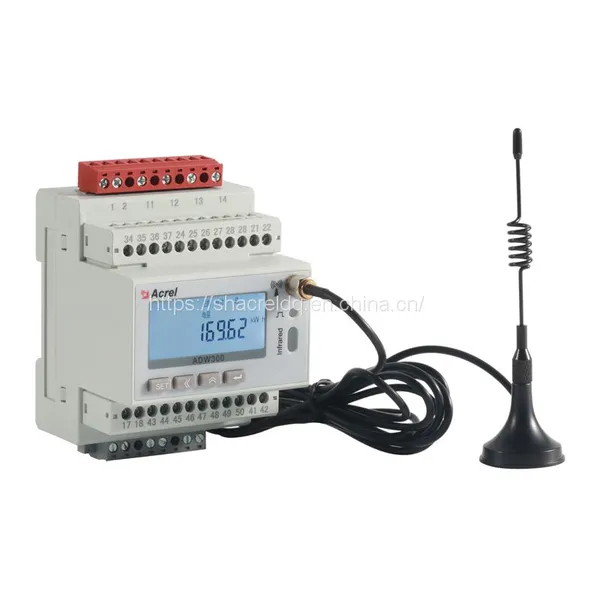

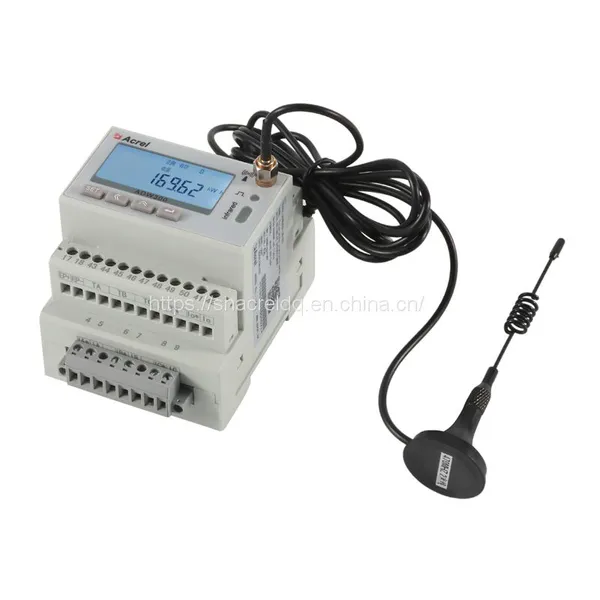

ADW300 IoT 3-phase Wireless Smart Energy Meter 4G LTE, WiFi, LoRa, LoRaWAN, RS485 Current 3x1(6)A AC Meter Power Iot
US$ 72.8 - 104
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
ADW300
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ADW300 Wireless 3 Phase Energy Meter Electrical Metering Devices Support Wifi Wireless Communication Connect to IOT PlatformUS$ 72.8 - 104MOQ: 1 Piece -
Multiple Communication Methods Optional Wireless 3 Phase Iot Wireless Smart Electricity Energy Meter KWh AC MultifunctionUS$ 72.8 - 104MOQ: 1 Piece
-
Active Power Class 1 ADW210 Multi Channel RJ45 Interface China Iot 3 Phase Electric Energy Meter With Split Core CTsUS$ 150 - 430MOQ: 1 Piece
-
ADW210 RS485 Modbus-RTU Mearsure Up to 4 Circuit 3 Phase Iot Energy Smart Electric Power MeterUS$ 150 - 430MOQ: 1 Piece
-
Low Voltage Electrical 4G WIFI LORA NB-IOT Optional 3 Phase Electric Energy Power Meter Equipment Wifi With IOT App for Solar pvUS$ 103.6 - 148MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
ADW300
Phase
Three Phase
Output Voltage
380V
Operating Temperature
-25 ~55℃
Dimensions
72mm*87.8mm*71.5mm
Display Type
Digital Only
Accuracy Class
0.5S
Measuring Energy Range
0-999999.9kwh
Solutions & Applications
Products Description
ADW300 Series IoT wireless energy meter
ADW300 wireless energy meters have multiple built-in communication modules (4G,WiFi,LoRa,NB-IoT) designed for different situation when paired with IoT energy management system or other demand for remote connection. Meanwhile, ADW300 can provide various extra function module and various electrical parameters measurement to meet different requests from the customers. Also, as the prove for quality, ADW300 is strictly compliant of the standard of IEC 62052-11; IEC62053-22; LVD.
Feature ①
Multiple Communication Methods
● WiFi (2.4GHz&5GHz)
● LoRa
Feature ②
Power Quality Monitoring
● Total Harmonic
● 2nd~31st Harmonic● Voltage Unbalance
● Current Unbalance
Feature ③
Multiple Extra Function
● 2-channel DO (Digital Ouput)
● 4-channel DI (Digital Input)
● 4-channel Cable Temperature Monitoring
● 1-channel Residual Current Measurement
● 4-channel DI (Digital Input)
● 4-channel Cable Temperature Monitoring
● 1-channel Residual Current Measurement
Feature ④
Alarm Function
● Over/Under Current
● Over/Under Voltage
● Over/Under Power
● Phase Loss
● Over/Under Voltage
● Over/Under Power
● Phase Loss
Solution Structure
Function & Parameter
Function Overview
Technical Parameters
Dimension & Installation
Dimension Overview
Wiring Illustration
Main Power PIN/Terminal Overview of ADW300
3-phase 4-wire wiring diagram of ADW300
3-phase 3-wire wiring diagram of ADW300
Work-site Installation
