Product Description

Brief Introduction

ADW2XX series rail type multi-loop power meters are mainly used for measuring the full electric parameters of multiple three-phase circuits,Up to four three-phase loop current inputs can be connected simultaneously.It Can measure voltage and current, power, power factor, phase angle, unbalance, harmonic and other parameters.
Note:
1.Optional external suction cup antenna,standard wiring length：2m 2.The extended function Module can be selected at most simultaneously MK+MTL+AWT Wireless Communication Module (See section 3.1 for optional wireless expansion module). 3.It is recommend that the distance between AKH-0.66/K-∅10N installation postion and the primary side transformer should be more than 1 meter ; 4.Leakage current transformer is recommended model;

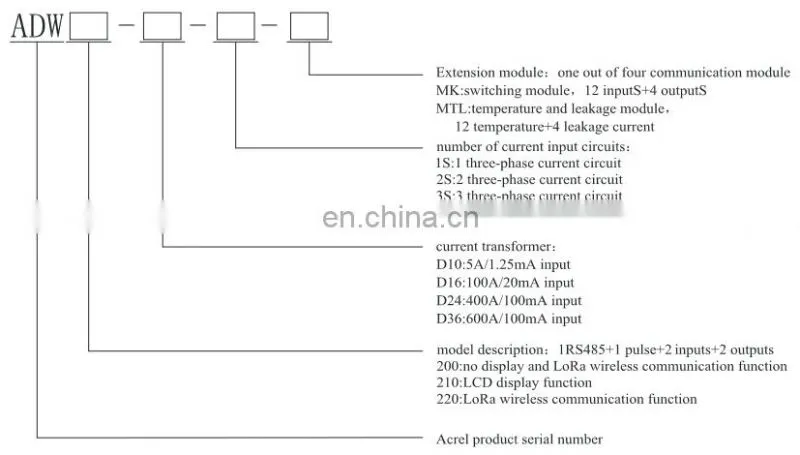

Name
Model
Function
AC energy meter
ADW350A
1 channel three phase or 3 channel single phase measurement
DC energy meter
ADW350WD
3 channel dc power measurement
Optional function
Module
Function
Note
/C
RS485 Modbus-RTU

Contact us for more product information and price information.
/NB
NB communication
/4G
4G wireless communication
/KT
3DO and 2 way temperature measurement

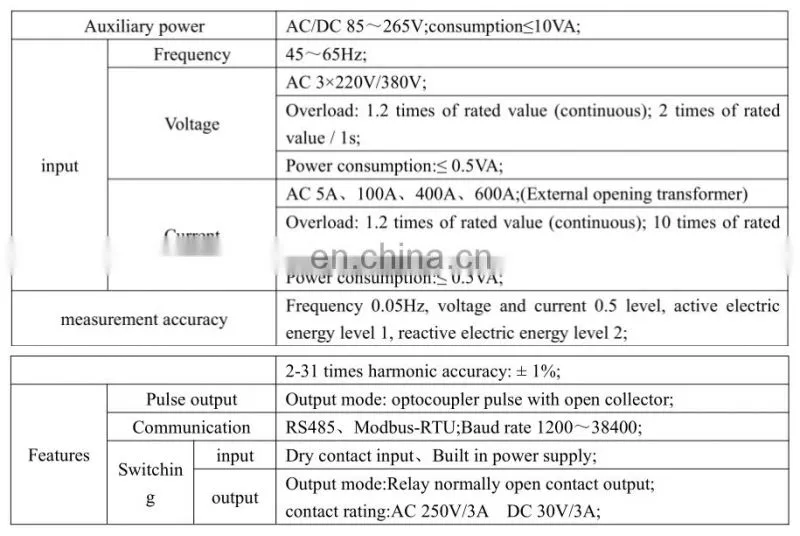

Specification

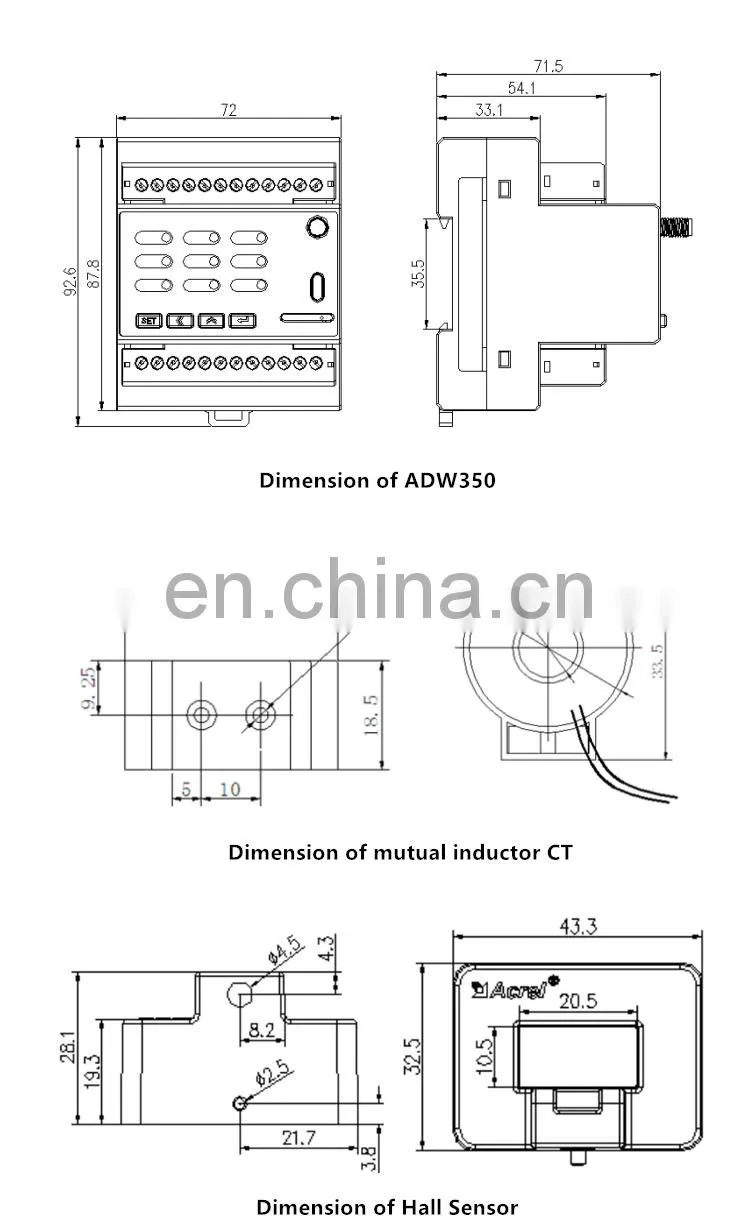

Dimension
Wiring
Interfaces of Auxiliary power supply, Communication and Pulse
