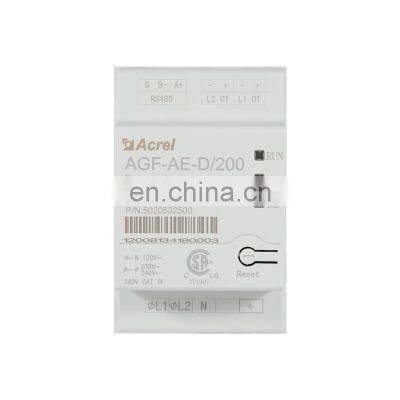

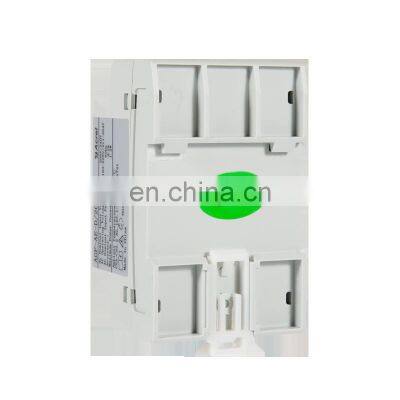

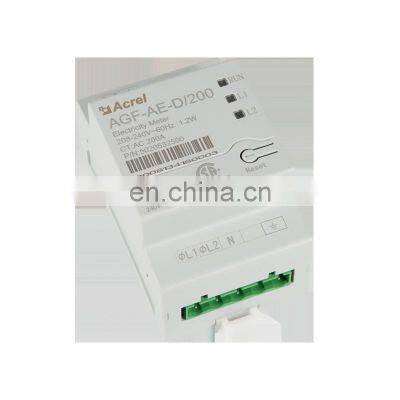

Acrel AGF-AE-D/200 PV/Solar inverter energy meter

Name: Acrel AGF-AE-D/200 PV/Solar inverter energy meter
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

AGF-AE-D/200 single phase 3 wire energy power meter with UL for off-grid inverter

AGF-AE-D/200 single phase 2 channel 3 wire energy meter is wired to the inverter.

If the inverter has a built-in revenue grade meter(RGM),an external meter on the same bus can be wired as RGM.

It is with RS485,SunSpec protocol.

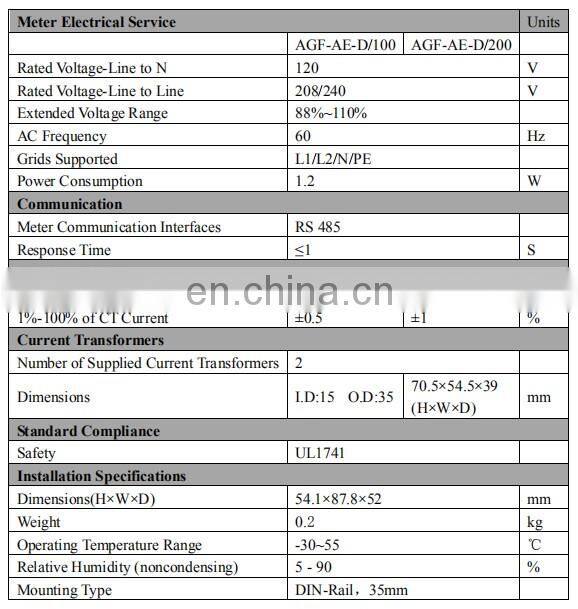

Function&Parameter

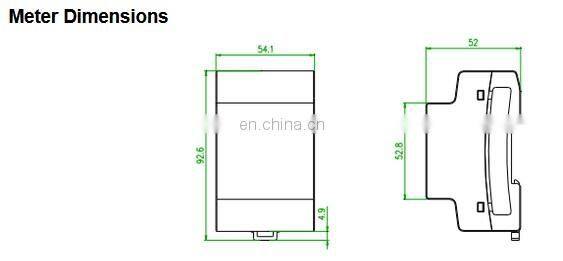

Dimension&Wiring

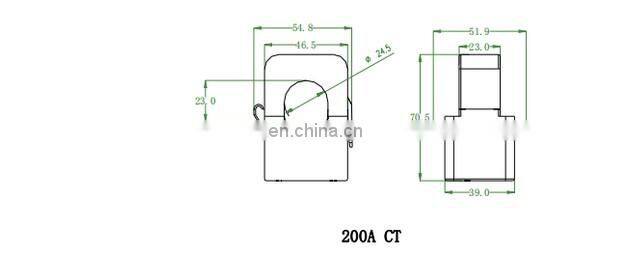

CT Dimension

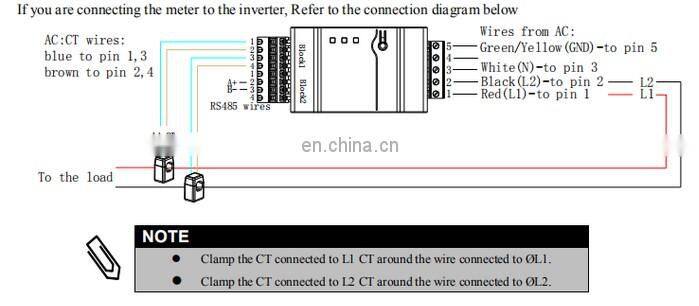

Wiring
