Acrel AC current transformer input:AC 0-200A output:DC 0-5V/0-10V diameter:20mm CT class 0.5 0.2 current transducer BA20-AI/V
USD $30 - $35
/ Piece
1 Piece(Min.Order)
- 1000 Piece / Pieces per Month
- T/T Credit Card
You May Like
- Acrel AC current sensor input:AC 0-200A output:DC 4-20mA/0-20mA diameter:20mm CT class 0.5 0.2 current transducer BA20-AI/I
- Acrel AC current transducer input:AC 0-10A output:DC 4-20mA/0-20mA diameter:5mm CT class 0.5 0.2 current sensor BA05-AI/I
- Acrel AC current transducer input:AC 0-10A output:DC 4-20mA/0-20mA diameter:5mm CT class 0.5 0.2 current sensor BA05-AI/I
- Acrel AC Residual current sensor input:AC 0-1A output:DC 4-20mA/0-20mA CT diameter 50mm true RMS current transducer BA50L-AI/I-T
- BA50-AI/V current transducer input AC0-600A optional output 0-5V signal
- Acrel smart wireless kwh enegy meters smart 4G 2G Lora NB-IoT RS485 MODBUS-RTU 3 phase din rail electricity meters ADW300
Product Description
Products Description

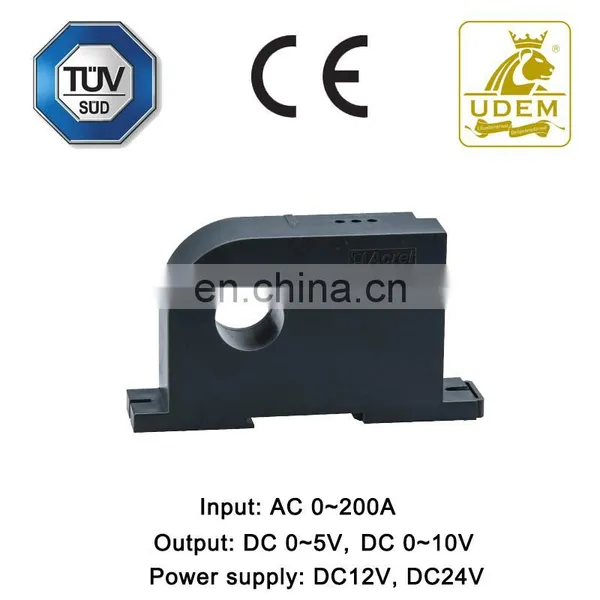

BA20-AI/V, AC current input, DC voltage output
BA series CTs can measure the AC from power grid in real time by using electromagnetic induction principle (Lenz's Law). Meanwhile,with constant current and linear temperature compensation technique, can BA current sensors
transfer AC input into standard DC signal output isolatedly. Also,since the products are powered by safe DC 24V or DC 12V power supply, BA CTs have features of such as high overload sustainability, safe using protection, low power consumption and etc. Thus they can be widely used in the industrial field like industry automation
Also, as the prove for quality, BA series AC current sensor is strictly compliant of the standard of CE (EN 60688:2013, EN 61010:2010+A1:2019, EN 61326-1:2013);TUV(EN 62321-1:2013, EN 62321-2:2014 and etc). Certificates are shown below
Explanation of Model Name
Function & Parameter
General Specification
Item | Description | ||||||
Power Supply | Voltage | DC 24V or DC 12V | |||||
Consumption | ≤ 1W | ||||||
Insulation Resitance | >100 MΩ | ||||||
Withstand Strength | Between input/output, power supply 2.0 kV/1min, 50Hz | ||||||
Temperature Coefficient | ≤200 PPM/℃,under -10℃~+55℃ | ||||||
Environment | Temperature | Working: -10℃~+55℃, Storage: -25℃~+70℃。 | |||||
Humidity | ≤95% RH, No condensation, without corrosive gas | ||||||
Altitude | TS35 guide rail or fiexed on cabinet with screws |
Technical Parameters
Paramters | Value&Description | ||||||
Accuracy Class | class 0.5, class 0.2 | ||||||
Input | Nominal Value | AC 0~200 A | |||||
Overload | continuous overload 1.2×Ib (1.2 times of nominal value); instant overload 10×Ib/1s (10 times of nominal value for 1 second) | ||||||
Absorbed Power | ≤1 VA | ||||||
Frequency response | 25Hz~800Hz (average); 25Hz~5000 Hz(true RMS), specialized for power frequency scenario | ||||||
Output | Nominal Value | DC 0~5V, DC 0~10V etc. | |||||
Load Resistance | ≤500 Ω with current output; ≤1000 Ω with voltage output | ||||||
Response Time | ≤ 350 ms (average); ≤100 ms (true RMS) |
Dimension & Installation
Dimension Overview
Wiring Illustration
Wiring instruction for BA with voltage output
1--E: stand for power supply anode (+)
2--G: stand for power ground
3--Output ground(can share groud with power supply, suitable for long rage transmission)
4--VDC: stand for DC voltage output anode(+)
Installation Instruction
① 35mm DIN rail installation
② Fixed by screw
Solutions & Applications
Application Scenario
Petrochemical
Siderurgy
Rail Transportation
