Product Description

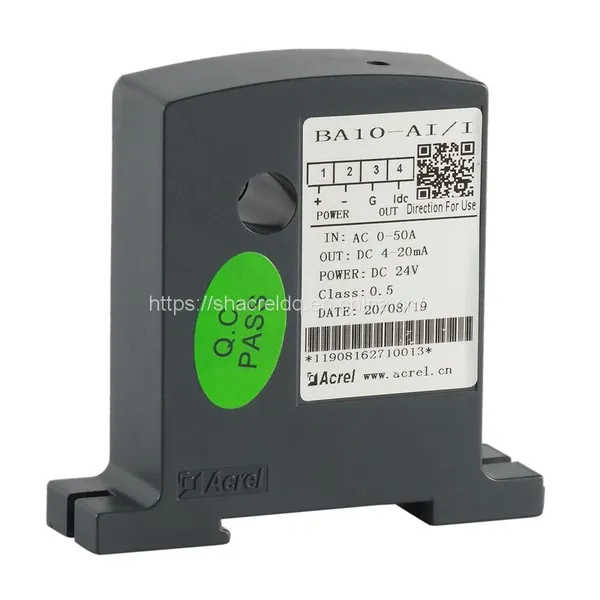

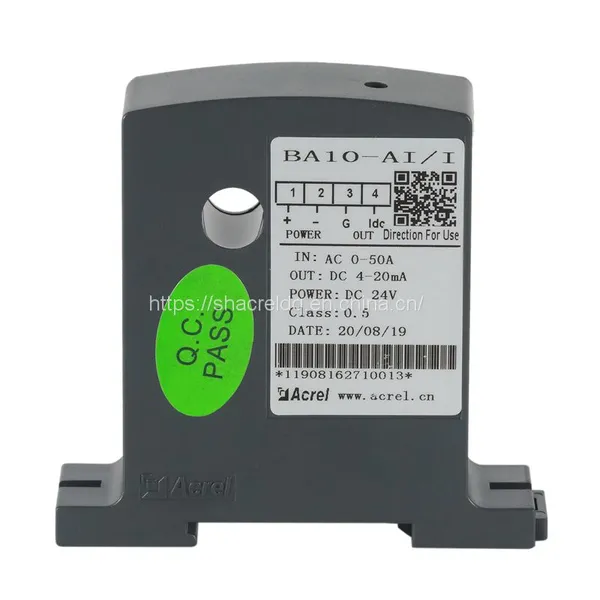

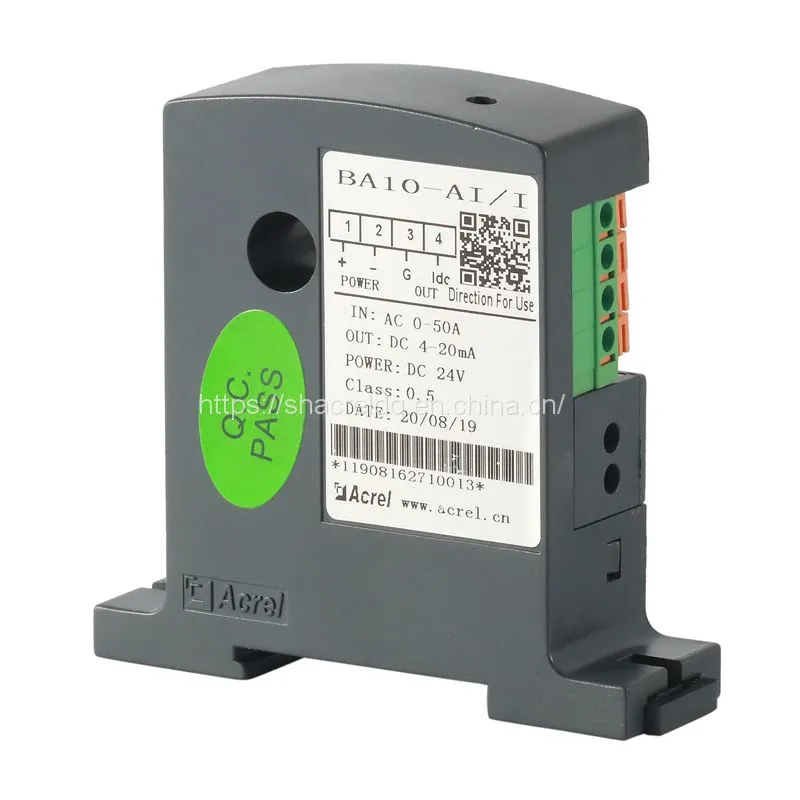

BA10-AI/I ----------BA Series AC Current Sensor
BA series CTs can measure the AC from power grid in real time by using electromagnetic induction principle (Lenz's Law). Meanwhile,with constant current and linear temperature compensation technique, can BA current sensors transfer AC input into standard DC signal output isolatedly. Also,since the products are powered by safe DC 24V or DC 12V power supply, BA CTs have features of such as high overload sustainability, safe using protection, low power consumption and etc. Thus they can be widely used in the industrial field like industry automation
Input::AC 0~50A
Output:4~20mA/0~5V DC
Power supply:12V/24V
Accuracy Class:0.5
Standard of BA series AC current sensor

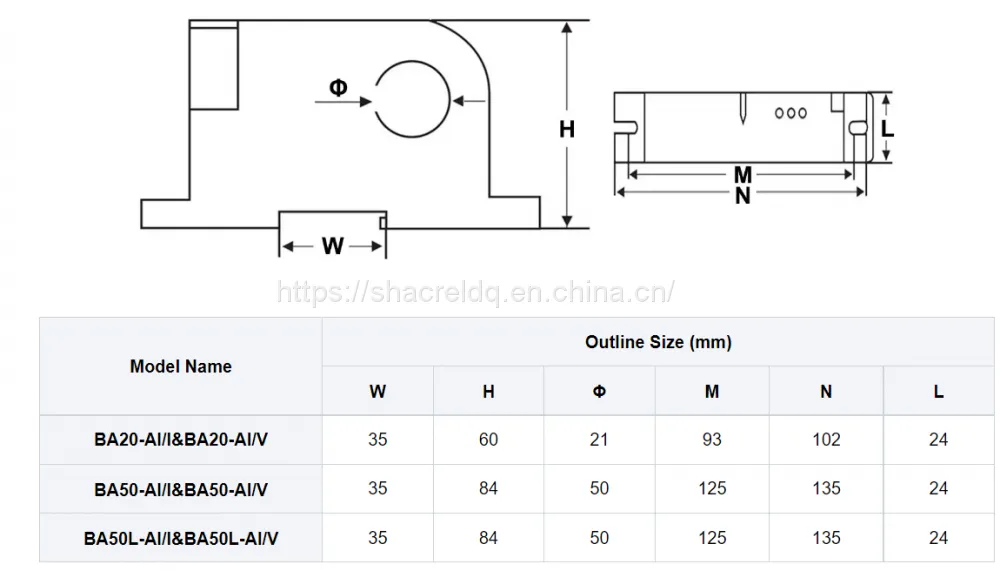

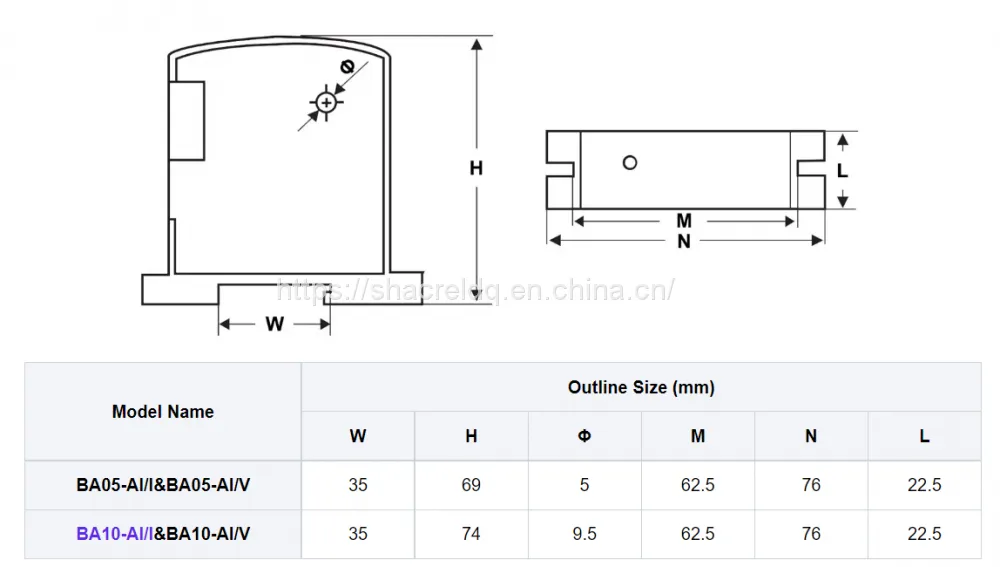

▋ Dimension

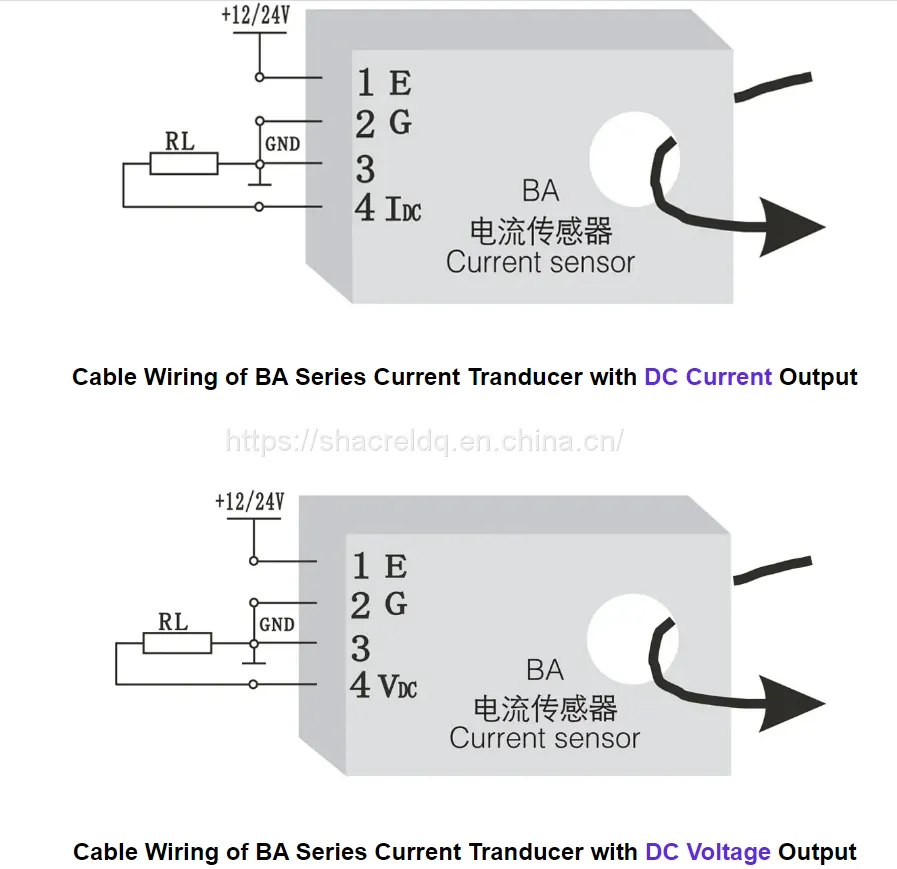

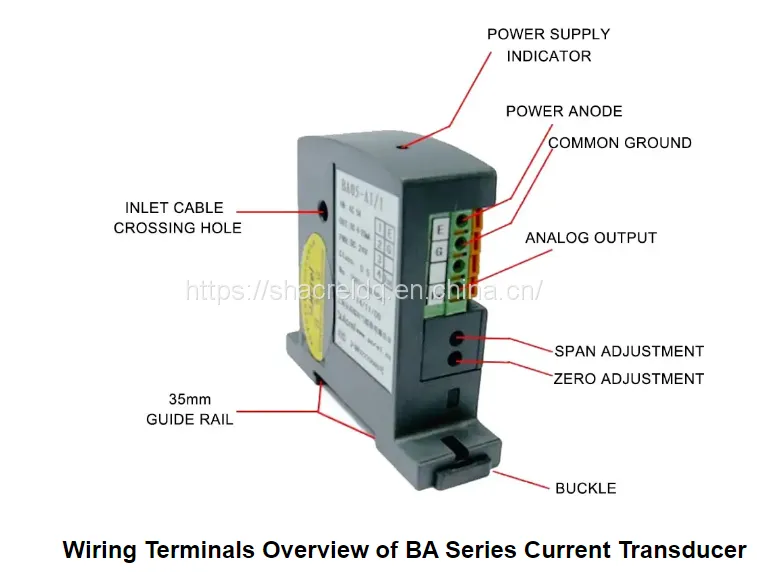

▋ Wiring Illustration

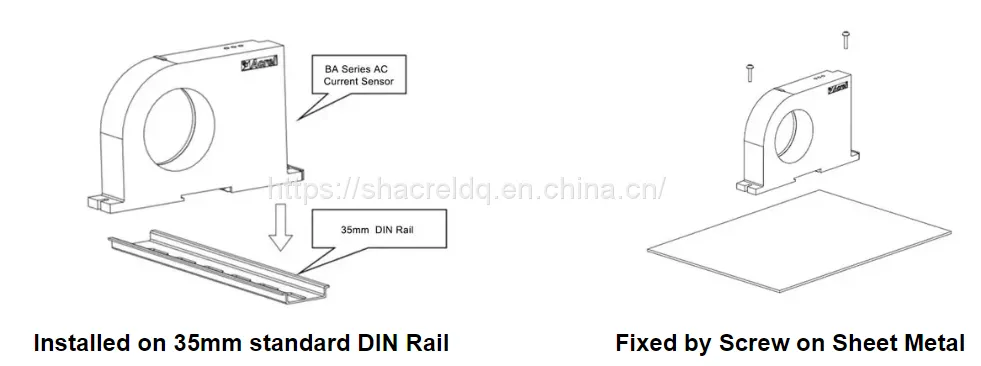

▋ Installation Instruction

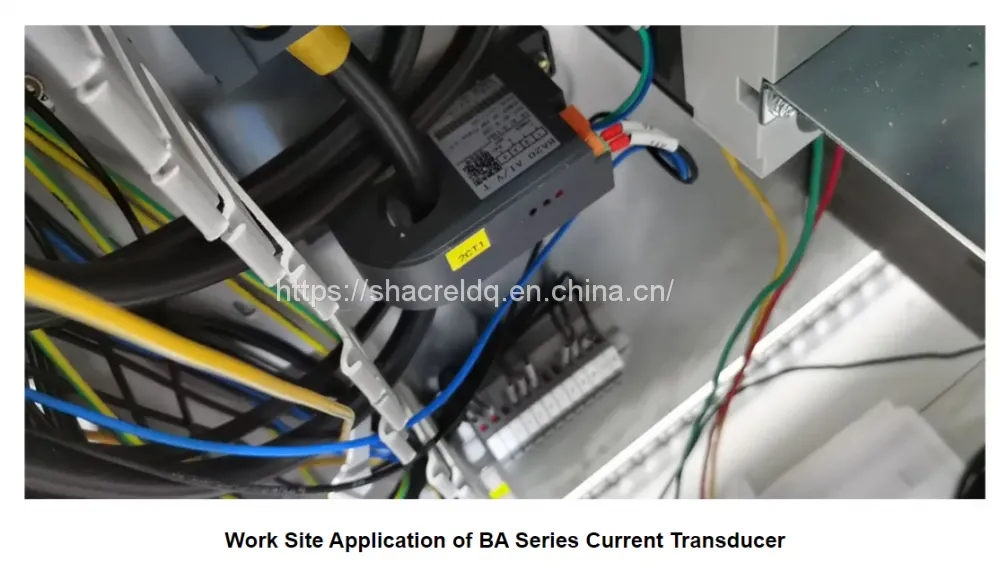

▋ Work Site Application
