Intelligent BA series current sensor BA50L(II)-AI/I
1 Overview

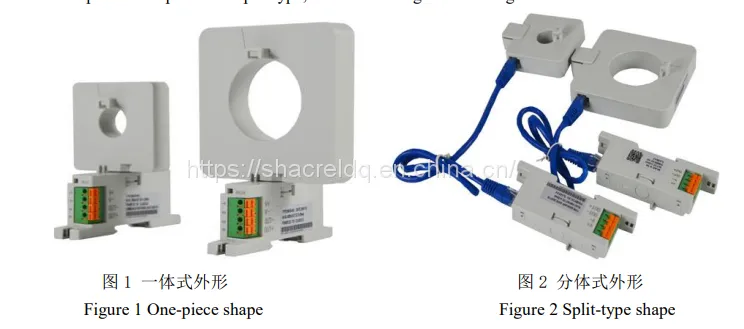

The intelligent BA series current sensor uses the principle of electromagnetic induction to measure the AC current in the power grid in real time and uses constant current and linear compensation technology to isolate and transform it into a standard DC signal output, or through the RS485 interface (Modbus-RTU protocol) to transmit the measurement data. DC24V or 12V safety voltage power supply, can be widely used in the field of industrial automation. BA50L(Ⅱ)-AI is an AC residual current transformer, which mainly detects the leakage current of the electrical system, can grasp the status of electrical circuits and equipment at any time, and prevent fires and other accidents caused by leakage. The shape has one-piece and split-type, as shown in Figure 1 and Figure 2.

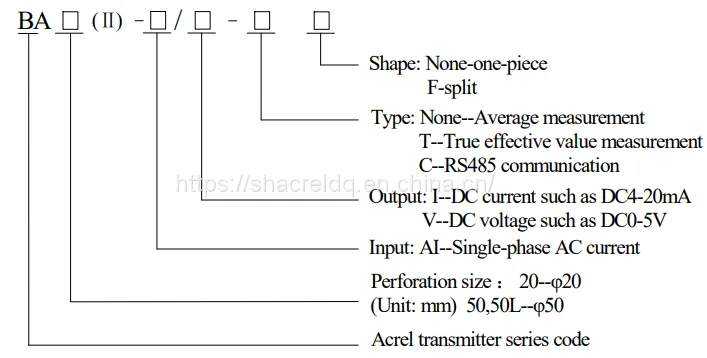

2.Product Model

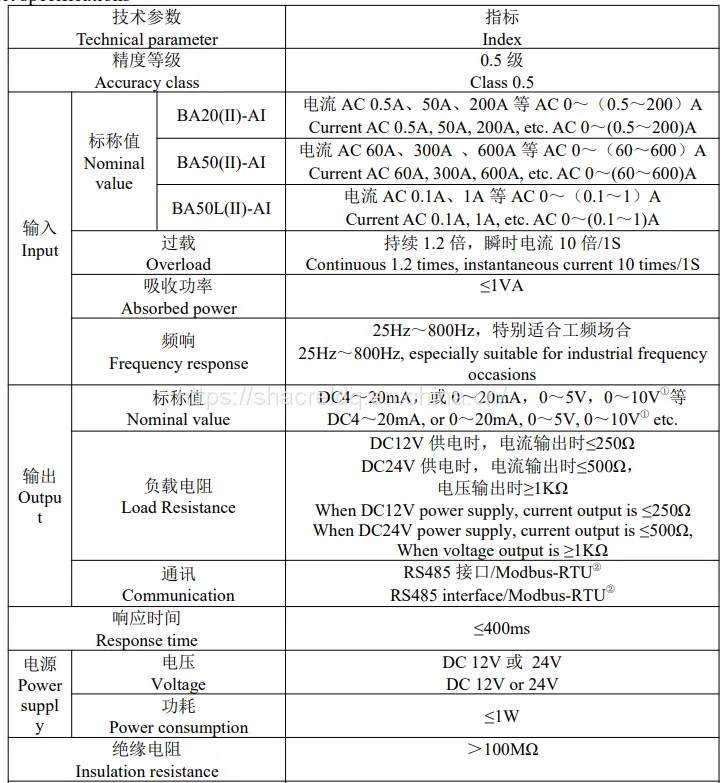

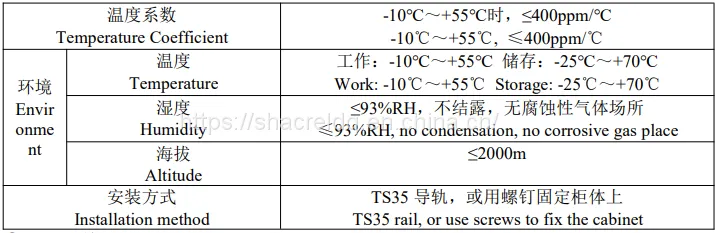

3.Product Specification
Note: ①0～10V output is only suitable for DC24V power supply; ②The communication function is optional.

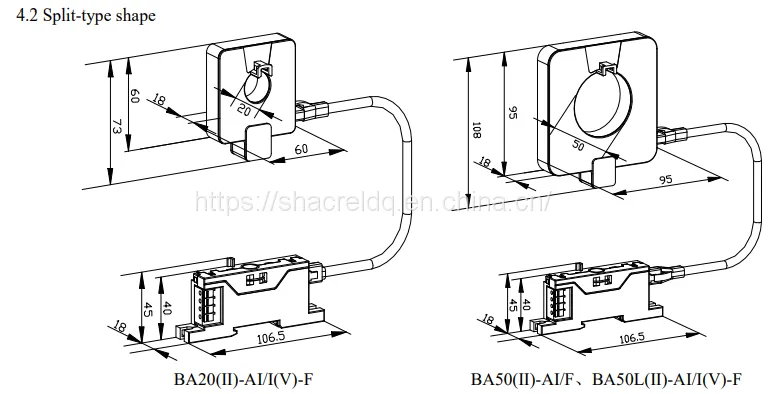

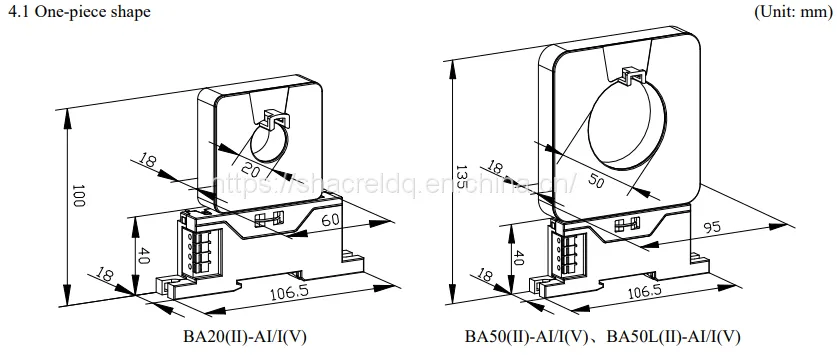

Shape and Installation

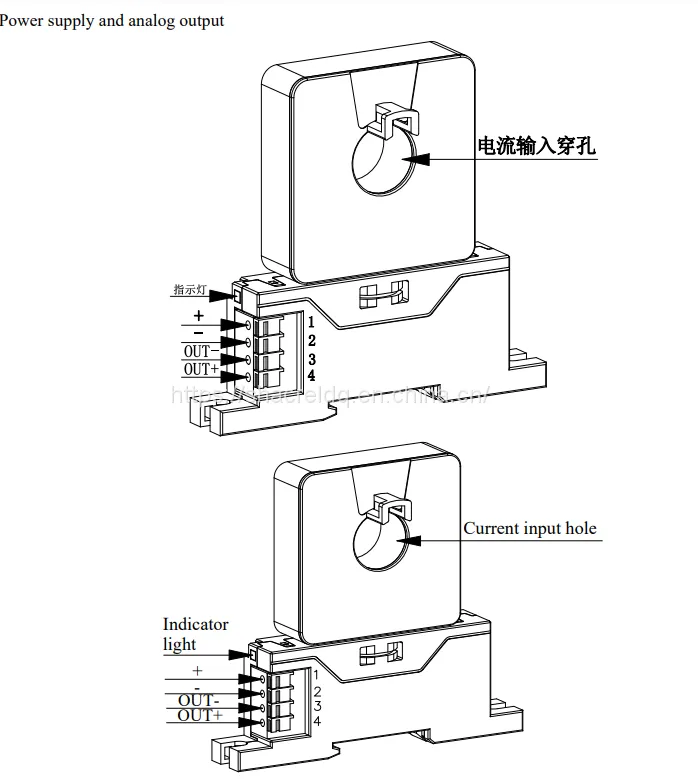

Terminals and wiring
1 —— + The positive pole of the power supply (note that the positive pole and the negative pole of the power supply cannot be reversed)
2 —— - Negative power supply
3 —— OUT- Analog output negative
4 —— OUT+ analog output positive

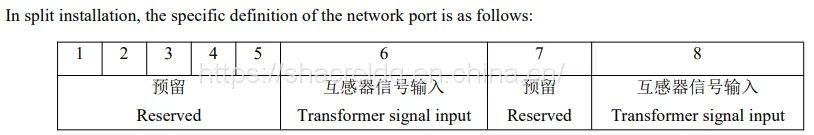

485 communication and network port
