2500V Measurement DC Voltage Transducer AHVS-L100 Output 50mA
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ACREL AHKC-EKB Ac/dc Hall Current Sensor Measuring 0-1000a Output 5VNegotiableMOQ: 1 -
ACREL AHKC-EKAA dc Hall Current Sensor With 0-500a MeasurementNegotiableMOQ: 1
-
Acrel AHKC-EKA Open Loop Hall Effect Current Sensor Measuring 0-500A Output 5v for Solar Power InverterNegotiableMOQ: 1
-
DC Voltage Transducer ACTDS-DV/V Hall Dc1500v Voltage Sensor With 5V OutputNegotiableMOQ: 1
-
DC100-1500V Input Hal Voltage Sensor Transducer With 4-20mA Output ACTDS-DV/INegotiableMOQ: 1
DC Hall Voltage Sensor
Product Description
Characteristic
General

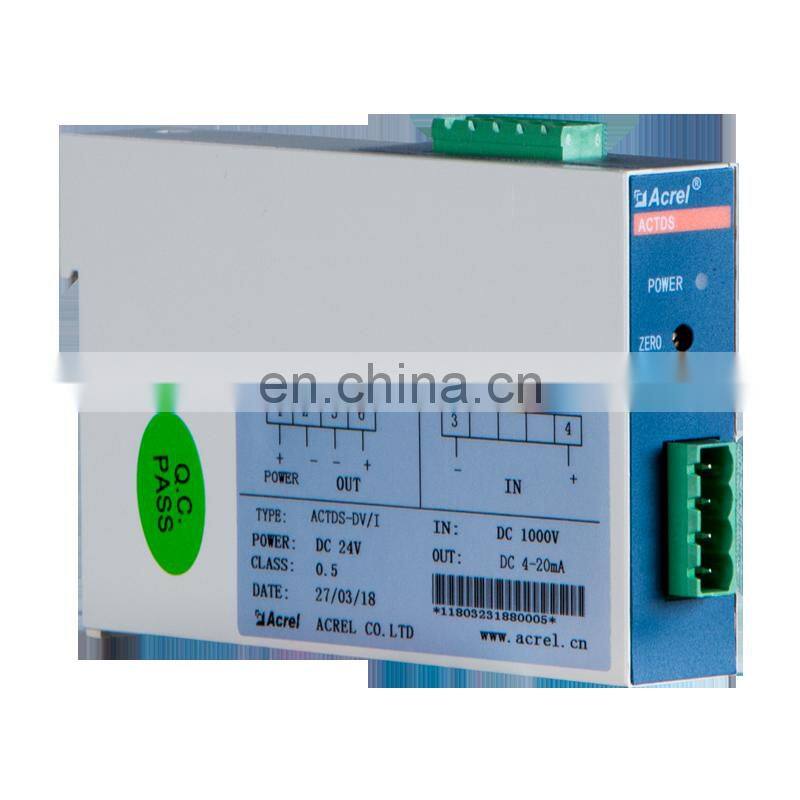

ACTDS series DC voltage sensors are the measuring module that converts the measured DC voltage into the proportional DC current or DC voltage signal according to the optical isolation theory. The input side is highly insulated from the output side. They feature the high accuracy, linearity and integration, small size,simple structure, long-term stability and adaptability to various working conditions.They are widely used for system control and detection of electrical equipment in the power, petroleum, mine, chemical, railway, communication, building automation sectors. <0} ★ Measurement of DC voltage ★ Quick response ★ Large overload capacity ★ High accuracy ★ DIN rail mounting ★ 3.5kV insulation between the input side and the output side
Model: AHVS-L100
Input: DC50-2500V Output: 50mA
Accuracy: Class 1.0
Power supply: ±15V--±24V
Frequency: 50Hz
Installation method: TS35mm rail
Quotation
Model |
Rated input |
Analog output |
Power supply |
install |
Unit Price |
Accuracy |
ACTDS-DV/I |
DC100-1500V |
4-20mA |
12V/15V/24V |
DIN35mm |
51.8 |
0.5 |
ACTDS-DV/V |
DC100-1500V |
5V |
12V/15V/24V |
DIN35mm |
51.8 |
0.5 |
AHVS-L100 |
DC50-2500V |
50mA |
±15V-±24V |
bottom fixed |
64.4 |
0.5 |
AHVS-LV |
DC100-4000V |
50mA |
±15V-±24V |
bottom fixed |
196 |
0.5 |

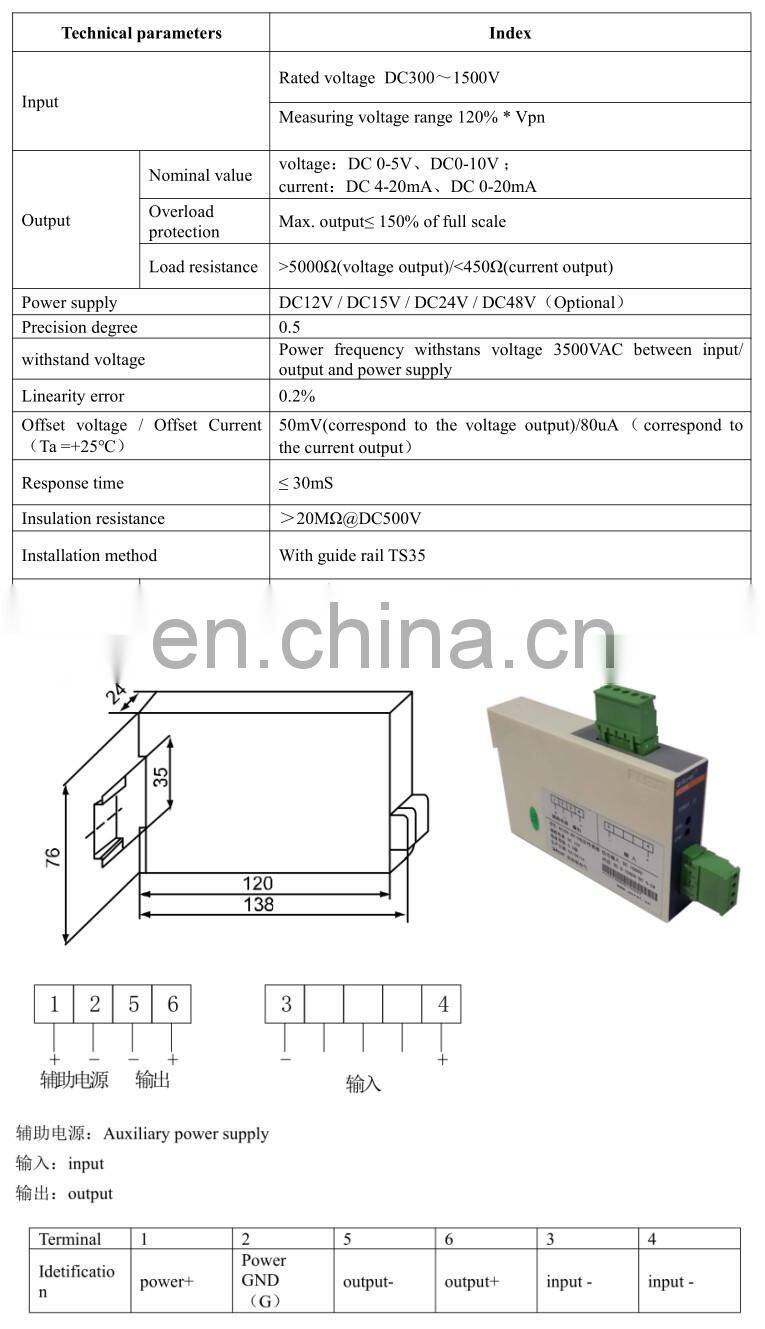

Specification
