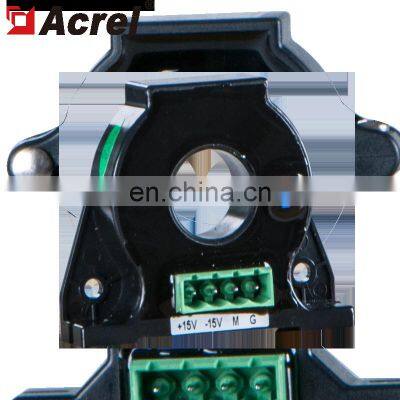

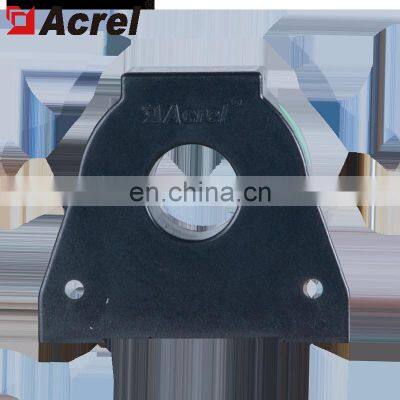

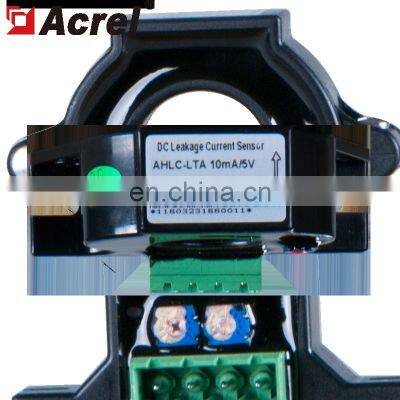

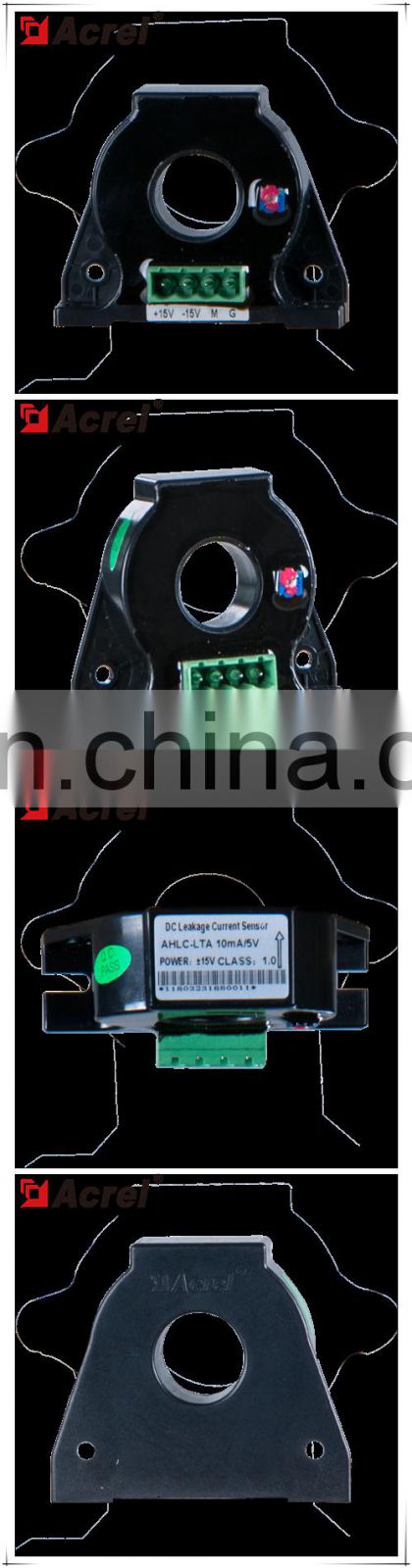

DC leakage Current Sensor
DC leakage current sensor is a measuring module that converts the measured direct current Into the proportional direct current or voltage signal according to the flux gate theory and the mput slde is highly Insulated from the output side. Typical outputs include 4-20mA, DC0-5V and DC0-10V signals. These standard signals can be acquired by various devices sucH as PLC, RTU and DAS card and used for different currentmonitoring applications. Ieakage current transformers surround the outlet + and-of DC circuit. It detects output signals of sensors in circuitbranches. If the insulation in circuit branches ls normal, the current passing the sensor must be equal in the opposite direction. The output signal is zero. If a circuit branch is grounded, the dilferential current passes the leakage current transformer and the output of sensor is not zero. Therefore, It is Possible to idenw the grounded branch in the DC system by detecting output signals from circuit branches. The theory guarantees the accurate line identification and prevents the influence of distributed capacitance.
Explanation for type:
Product name: DC leakage current sensor
Dimension:
|
Size Specification |
Outline size | Through size | Mounting size | ||||
| W | H | D | φ | φ1 | M | N | |
| AHKC-LTA | 68 | 57 | 20 | 50 | 20 | 52 | 52 |
Technical Feature
| Specification | Rated Current | Power Supply | Rated Output | Measuring Aperture(mm) | Precision Degree |
| AHLC-LTA | DC0~(10mA-2A) | ±15V | 5V | φ20 | 1 |
Acrel Co., Ltd. [Stock Code: 300286.SZ] is one of the few leading companies in China who provides various systematic solutions of power monitoring, power control, energy management and electrical safety for smart grid users.
Since June 2003, we has always been focused on the research, production and sales of intelligent electric meters. We concentrates on providing products and services to help customers improve electricity efficiency and safety. So far we had the following comprehensive solutions for different applications: 35(10)/0.4kV substation automation system, building mounted photovoltaic (BMPV) system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, power supply monitoring system for fire protection equipment, fire emergency lighting and evacuate indicating system, fire resistant doorsets monitoring system, smart lighting control system, Lithium battery management system and electric vehicle charging system.
