Help CenterHall DC Voltage Sensor Transducer ACTDS-DV/I In 100-1500V Out 4-20mA
Related Products
-
DC Current Hall Sensor DC Leakage Current SensorNegotiableMOQ: 1 -
Current Measurement Hall Sensor Acrel 0-500A Open Loop Hall Current Sensor Output 5vNegotiableMOQ: 1
-
Acrel Hal Effectl Current Sensor AHKC-EKAANegotiableMOQ: 1
-
Acrel 0-500A Open Loop Hall Current Sensor AHKC-EKA Output 5vNegotiableMOQ: 1
-
Split Core Open-loop Hal Current Sensor AHKC-EKBANegotiableMOQ: 1
DC voltage sensors
ACTDS series DC voltage sensors are the measuring module that converts the measured DC voltage into the proportional DC current or DC voltage signal according to the optical isolation theory.The input side is highly insulated from the output side. They feature the high accuracy,
linearity and integration, small size, simple structure, long-term stability and adaptability to various working conditions. They are widely used for system control and detection of electrical equipment in the power,petroleum, mine, chemical, railway, communication,building automation sectors.

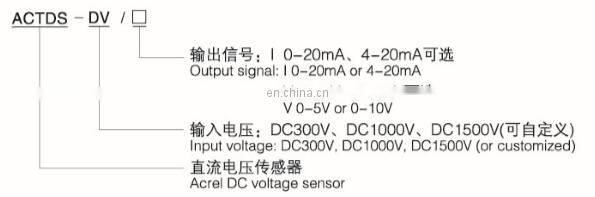

Explanation for type:
Features: * Measurement of DC voltage
* Quick response
* Large overload capacity
* High accuracy
* DIN rail mounting
* 3.5kv insulation between the input side and the output side
Product name: Closed-loop Hall current sensor

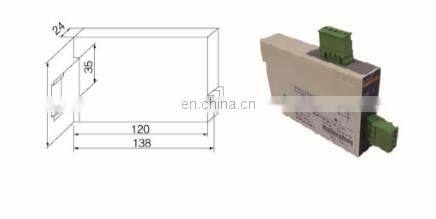

Dimension: Spec. and size (unit:mm)

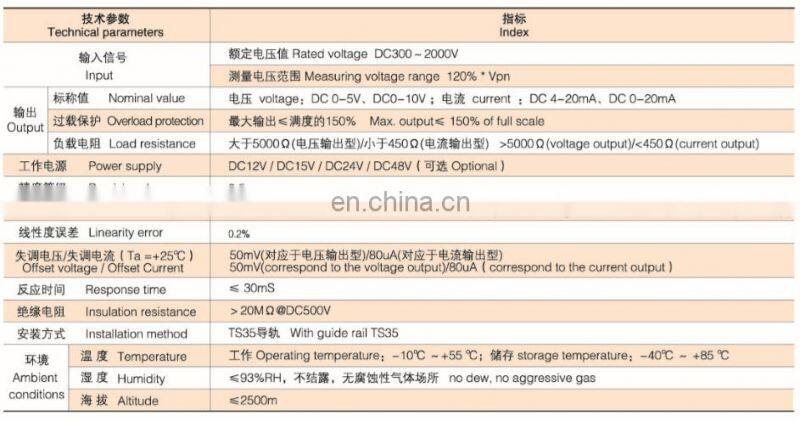

Technical Feature
| Type | input | output | power supply | FOB Shanghai USD |
| ACTDS-DV/I | 100-1500V | DC4-20mA,0-20mA | DC12V/15V/24V | 53.2 |
