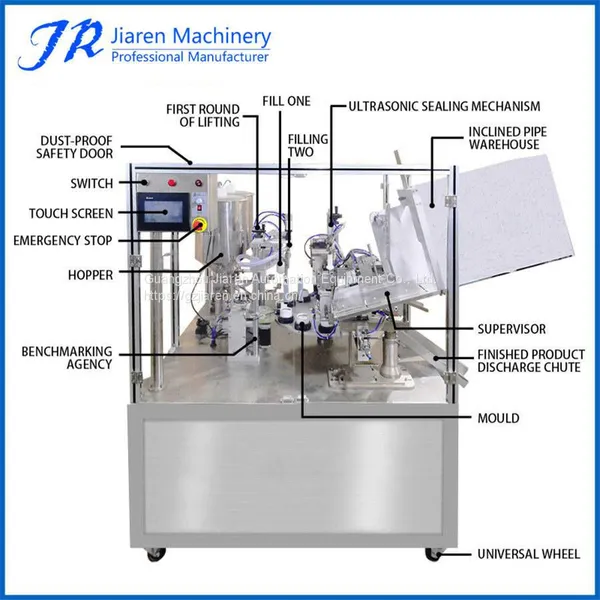

Automatic Double-layer tube filling and sealing machine
The sub-tube filling and sealing machine uses ultrasonic waves to make the plastic hose seal produce impact and high heat through the action of the transducer, and quickly melt to bond; therefore, it does not need to add any auxiliary products, the sealing speed is fast, the quality is good, and the appearance is beautiful. Advantages have little effect on chemical agents, not afraid of surface contamination, and still seal the tail, which solves the shortcomings of using adhesives or hot melt welding.
Product application of Automatic Double-layer tube filling and sealing machine
It is suitable for products such as mother-in-tube, tube-in-tube, double-layer tube, inner and outer double-tube hoses, and is mainly used in products such as facial cleanser, sunscreen, and hand cream.
Features of Automatic Double-layer tube filling and sealing machine:
(1) Touch screen operation, humanized design, simple and intuitive operation.
(2) Cylinder filling control to ensure the accuracy of filling, 2 filling heads to ensure filling of 2 kinds of materials
(3) Photoelectric sensor and pneumatic door linkage control.
(4) Pneumatic execution control valve, high efficiency and safety. The runner can be independently adjusted and cleaned.
(5) Adopt the structure design of anti-drip and anti-drawing filling nozzle.
(6) The material of the whole machine is stainless steel and anodized aluminum alloy. The part connected with the material is made of SUS304 stainless steel.
Automatic Double-layer tube filling and sealing machine related parameters
Equipment name |
Automatic Double-layer tube filling and sealing machine |
Ultrasonic frequency: |
25K |
Welding time: |
0.1-4S |
Filling range: |
15-200ml |
Filling speed: |
15-22 pcs/min (a little difference according to different products) |
Sealing pipe diameter range: |
16-50mm |
Hose height range: |
80-220mm |
Canning accuracy: |
±1% |
AB angle deviation: |
±1mm |
Voltage: |
220V 50/60HZ |
Air pressure: |
0.4-0.6Mpa |
(Length*Width*Height): |
1940mm*1360mm*1720mm |
Machine weight: |
450KG |
Automatic Double-layer tube filling and sealing machine operation flow chart:
Automatically load the tube to the turntable mold base-automatic pressure tube-automatic standardization-ultrasonic heating-automatic tail clamping-automatic tail cutting-finished product.

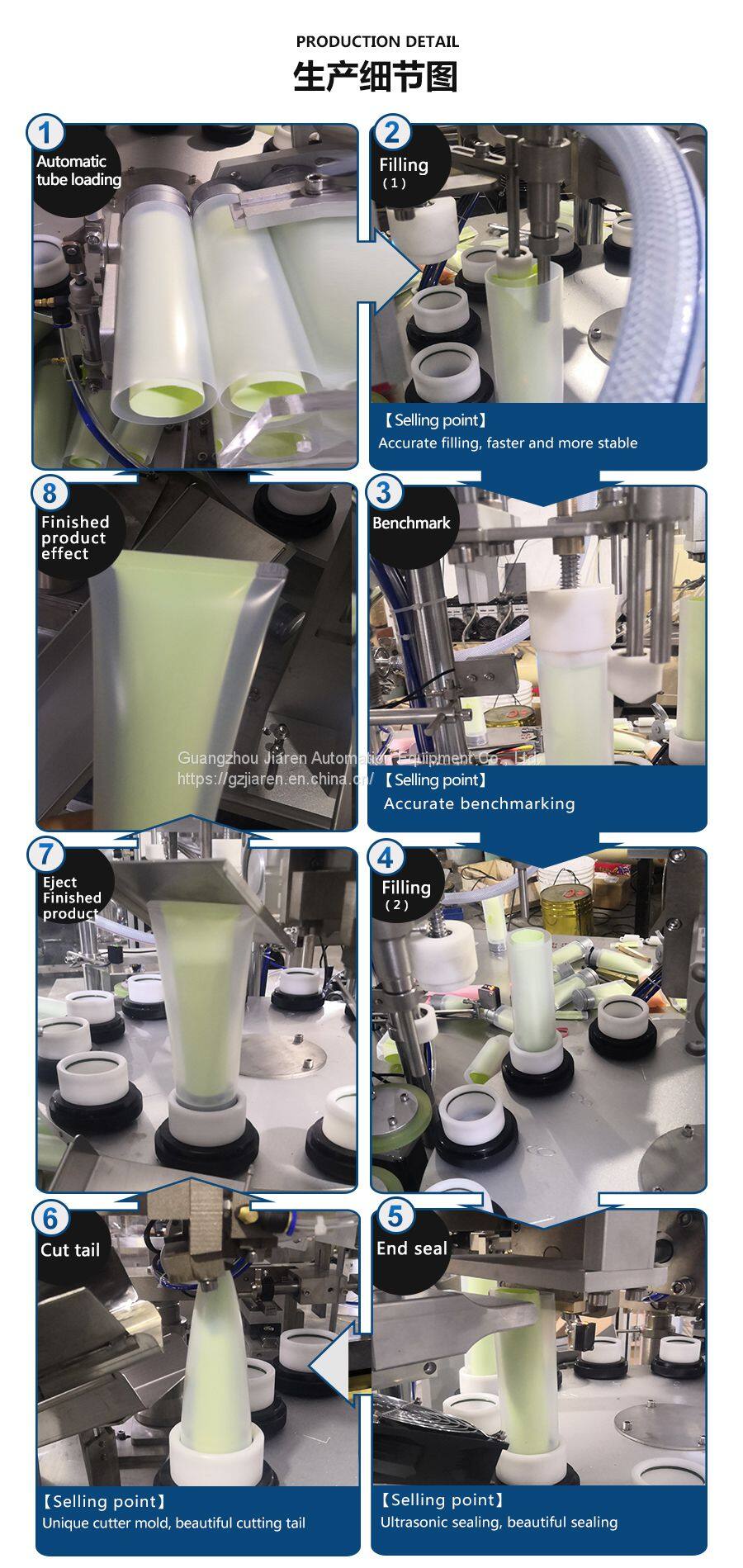

Detailed drawing of sAutomatic Double-layer tube filling and sealing machine:

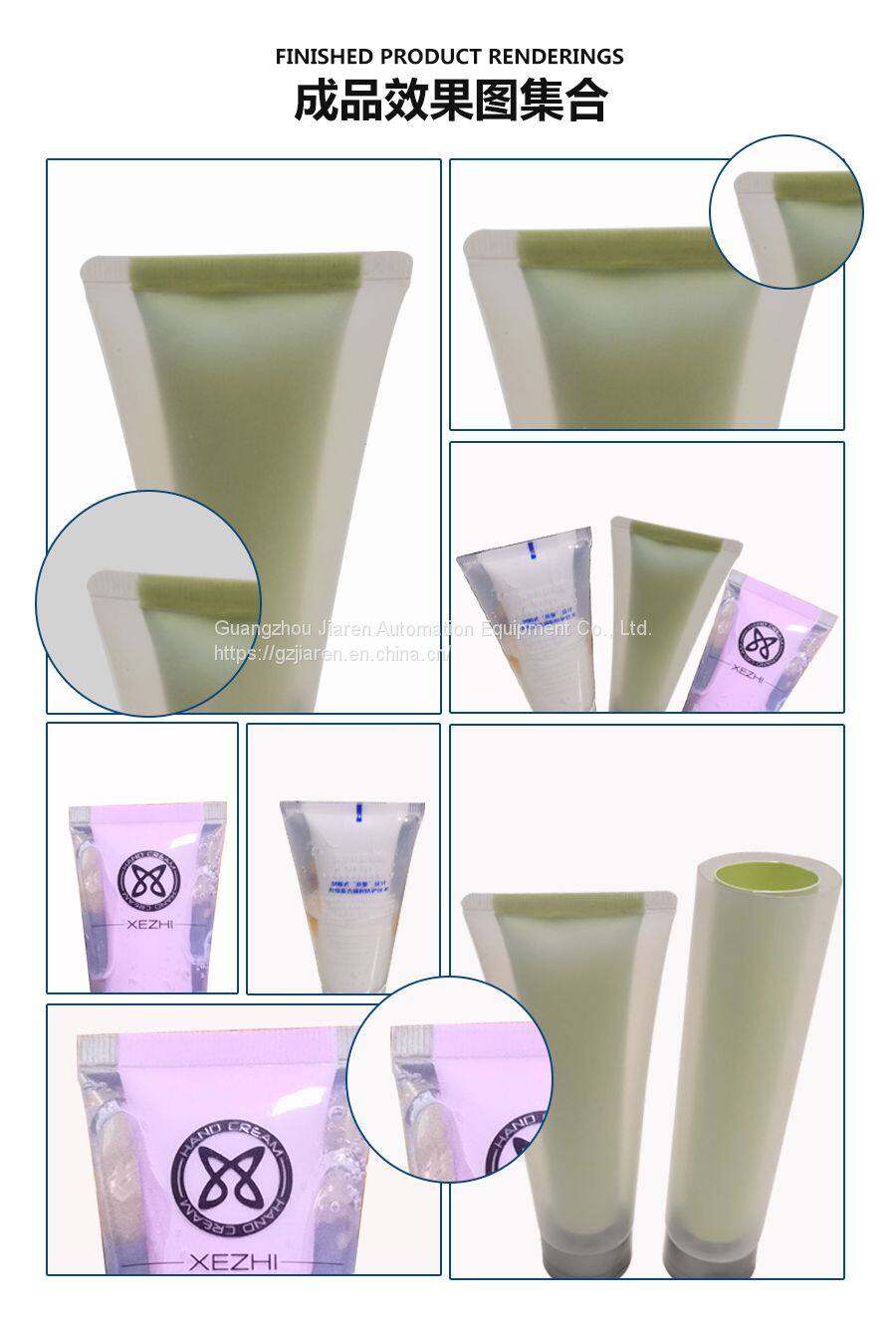

Finished hose effect diagram:

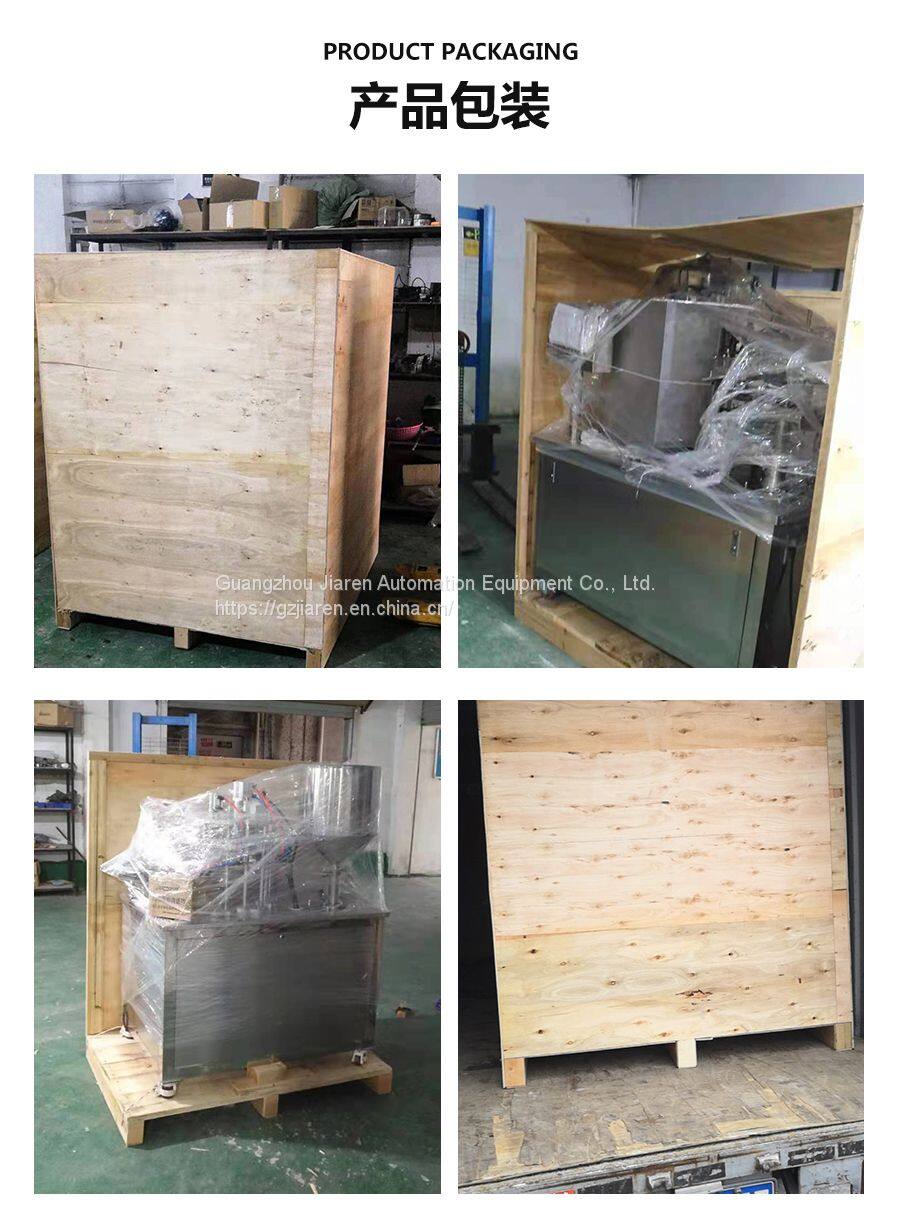

Transport package drawing:
OUR SERVICE:
1. Professional sales team, communicate your needs in time
2. During the production of the equipment, we will regularly shoot videos to inform the corresponding progress
3. Corresponding wearing parts, English operation manual and operation video are randomly distributed
4. Professional after-sales maintenance engineers can solve your after-sales problems at any time
5. If there is a demand, we can also provide door-to-door service, but the corresponding fee shall be charged.
FAQ：
Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machine is made by ourself ,we have a professional production and processing team and after-sales team
Q: Why choose your company?
Answer: We can provide customized services according to customer requirements. We also have a professional R&D team and a quick response sales team. Strictly control every step of the quality assurance and quality control system process.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment ?
A: Payment
