Manual Plastic Ultrasonic Tube Filling and Sealing Machine

Manual plastic ultrasonic tube filling and sealing machine

The working principle of the ultrasonic tail sealing machine is to vibrate through the high frequency of ultrasonic energy, and transmit the energy to the hose through the welding head. With the ultrasonic frequency of 20,000 times per second and a certain amplitude, the joint surface of the hose is violently rubbed Melting, communicating, and completing the gluing process in an instant, this process is called ultrasonic plastic welding.

Application of ultrasonic tube filling and sealing machine:

It is suitable for the filling and sealing of plastic pipes and composite pipes in the industries of medicine, food, cosmetics, and daily chemical products. It can inject all kinds of paste, paste, viscosity fluid and other materials into the hose smoothly and accurately, and complete the tube ultrasonic heating, sealing, batch number, production date, etc....

Features of ultrasonic tube filling and sealing machine

1. Extensional organization of the machine is made of aluminium alloy and stainless steel.
2.The working platform is easily to operate that is independent man-machine operating interface and can be two dimension direction adjustment.
3.The ultrasound power supply adopts Taiwan movement circuitry, ultrasound parts use famous brands.
4.It's with the function of overload protection, phase difference protection, and power-fail protection
5.The ultrasound output power is big enough to ensure the sealing quality of different kinds material and specifications soft tubes.
6.It's with the function of automatically cutting.

7.To seal different products, just replace a mold

8. Filling can be selected to achieve the integration of filling and sealing

ultrasonic tube filling and sealing machine related parameters

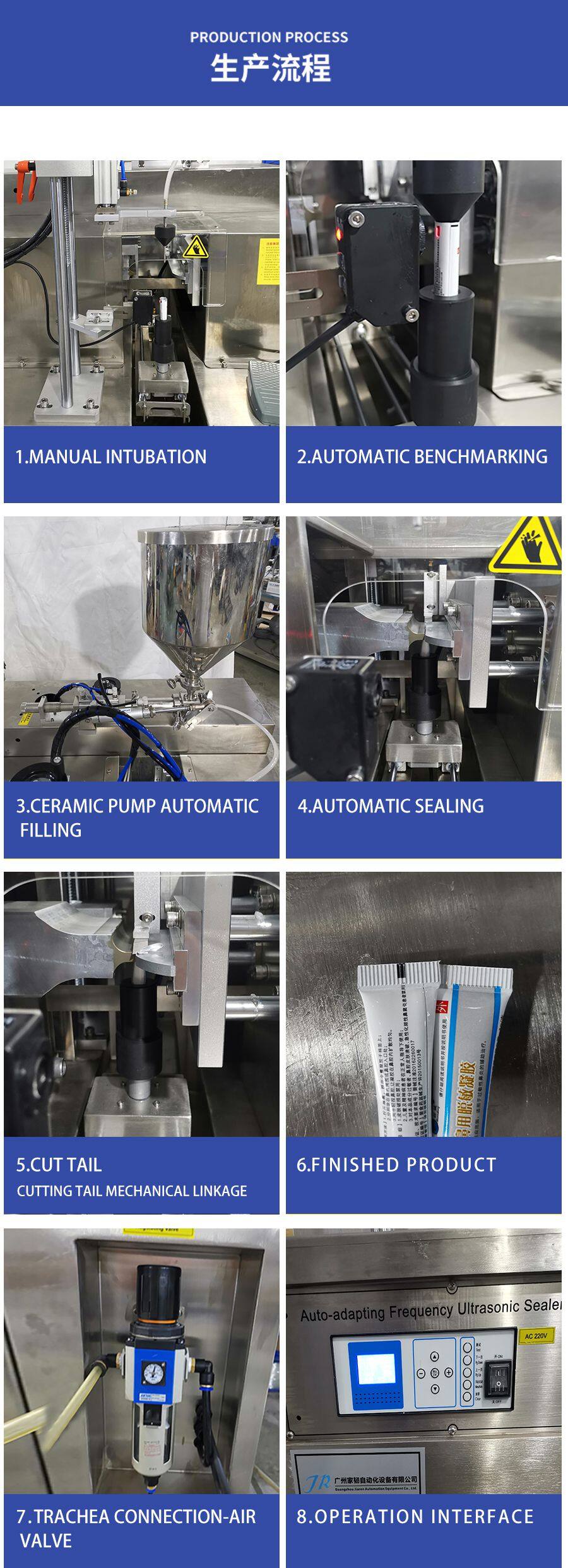

Production flow chart of ultrasonic tube filling and sealing machine:

Manual intubation - benchmarking - pressure tube - ultrasonic sealing  -tail cutting - products

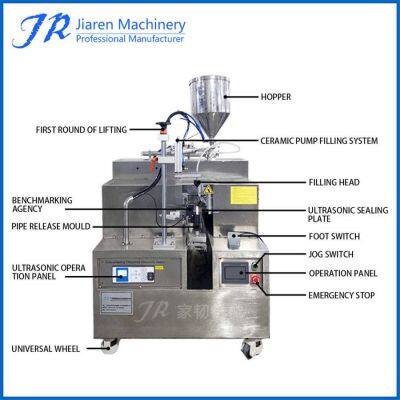

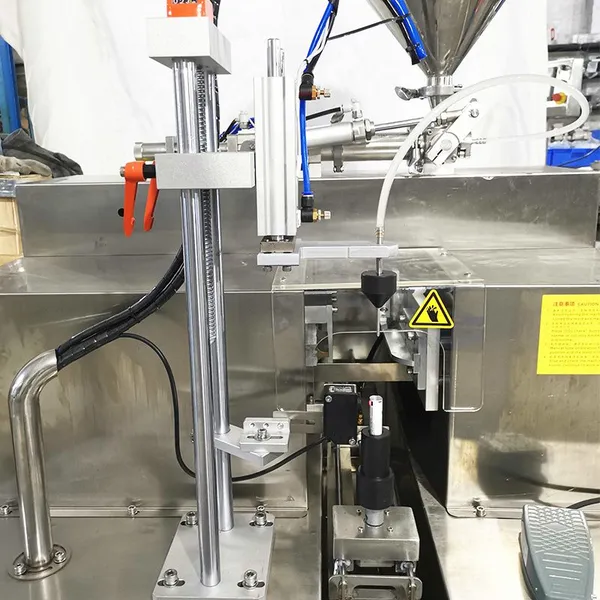

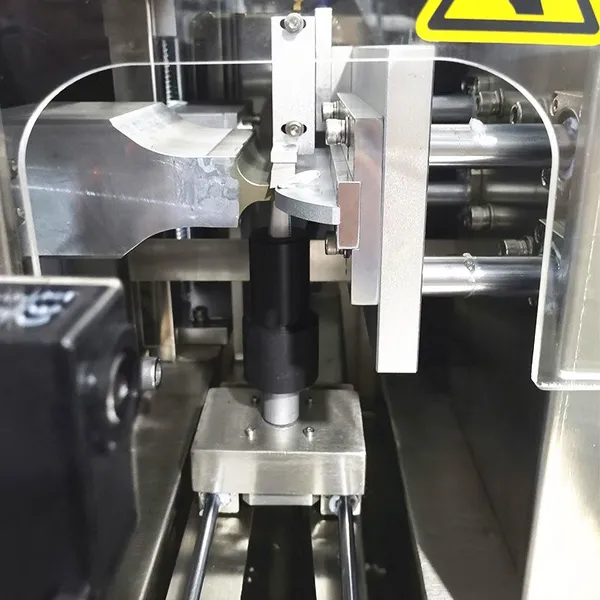

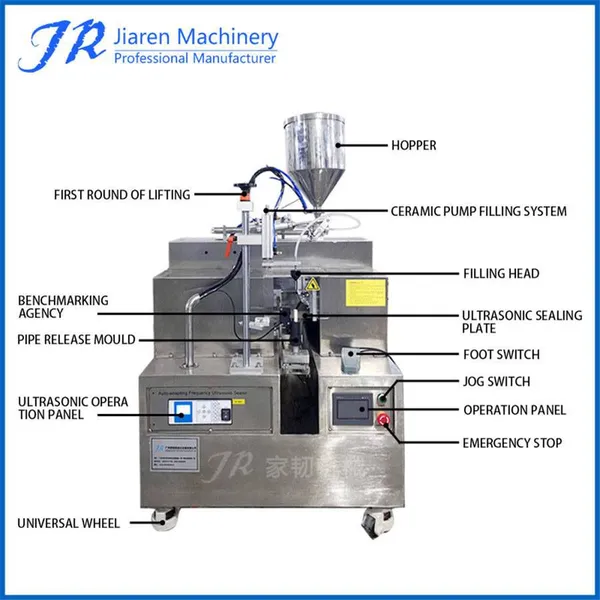

Detailed drawing of ultrasonic tube filling and sealing machine:

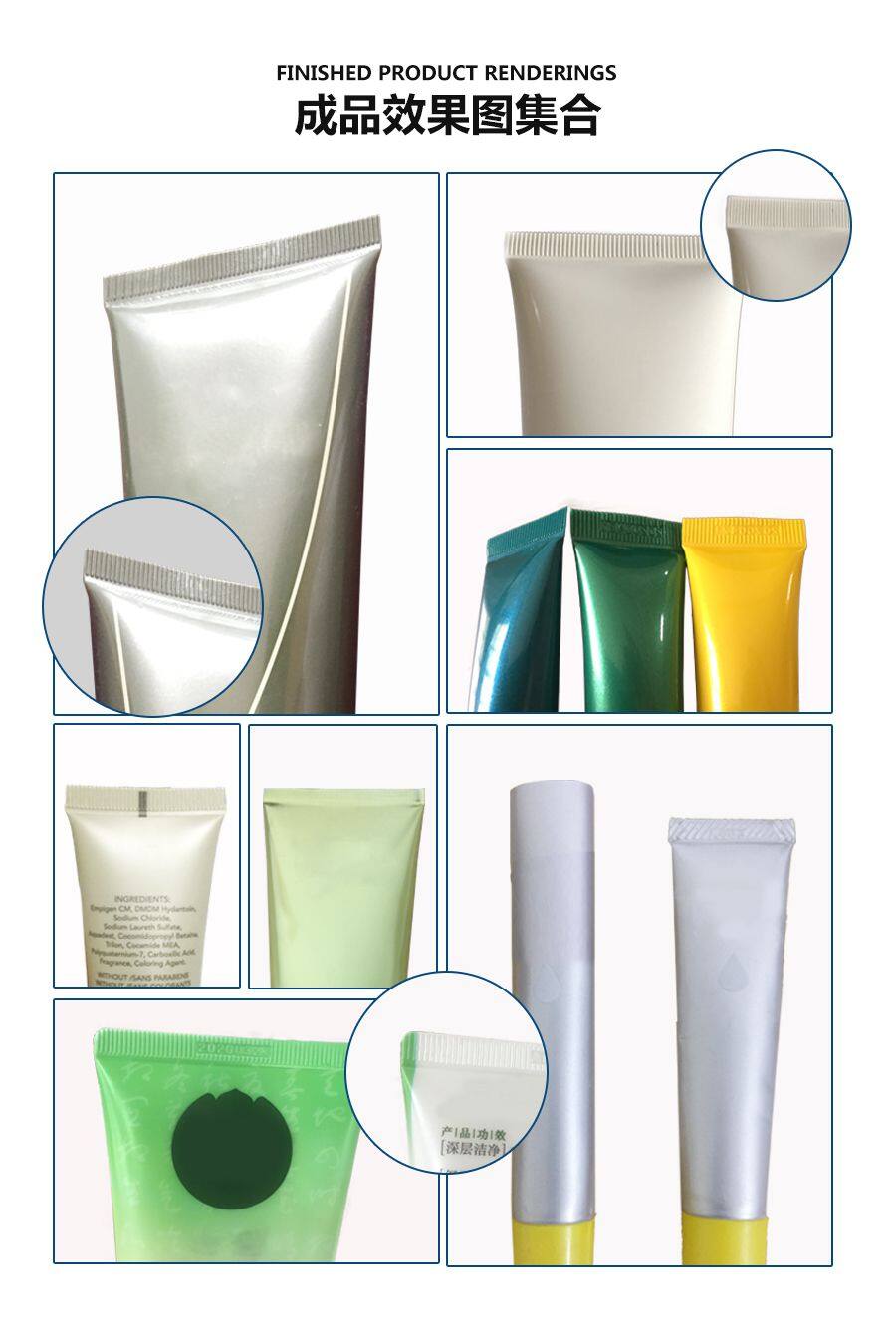

Finished hose effect diagram:

Transport package drawing:

 OUR SERVICE:

1. Professional sales team, communicate your needs in time
2. During the production of the equipment, we will regularly shoot videos to inform the corresponding progress
3. Corresponding wearing parts, English operation manual and operation video are randomly distributed
4.Professional after-sales maintenance engineers, 24 hours a day to solve your after-sales problems
5. If there is a demand, we can also provide door-to-door service, but the corresponding fee shall be charged.

FAQ：

Q: Are you trading company or manufacturer ?

A:Yes, We are factory, all machine is made by ourself ,we have a professional production and processing team and after-sales team

Q: Why choose your company?

Answer: We can provide customized services according to customer requirements. We also have a professional R&D team and a quick response sales team. Strictly control every step of the quality assurance and quality control system process.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).

Q: What is your terms of payment ?
A: Payment
