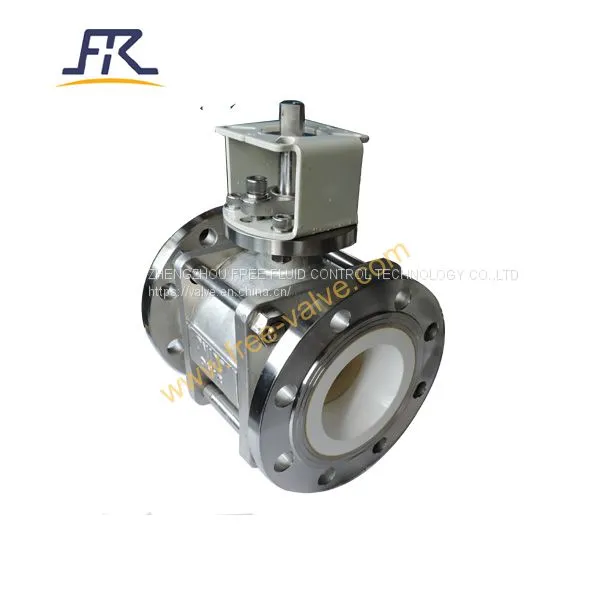

Stainless Steel Bare Stem Full Lined Ceramic Ball Valve round port
- 200 Piece / Pieces per Month
- Shanghai
- T/T L/C
- 30 days
- China Supplier FRZ643TC Pneumatic Ceramic Swing Gate Valve
- Stainless Steel Globe Valve
- Stainless Steel Type Pneumatic Ceramic Double Disc Gate Valve
- 2 Inch Pneumatic Ceramic lined Knife Gate Valve
- Anti Corrosive and Abrasive Type Pneumatic Ceramic Double Disc Gate Valve
- Lever Operated Wafer Resilient Butterfly Valve
Product Details
Brand Name: | FREE-VALVE | Place of Origin: | China | Model Number: | FRQ641TC |
Material: | Ceramic | Application: | Other, Industry | Structure: | Ball |
Standard or Nonstandard: | Standard | Pressure: | Medium Pressure | Power: | Other, Electic |
Port Size: | NPS2 ~NPS8 | Media: | Other, Abrasive media | Temperature of Media: | Medium Temperature |
Packaging Details
Wooden Box
Product Description
FREE-VALVE’s Stainless Steel Bare Stem Full Lined Ceramic Ball Valve-round port are designed with engineering ceramics the engineering ceramics internal parts provide excellent wear resistance, the ceramic ball valves are widely used as an open & close function as well as a throttling control tasks in corrosive medium with abrasive solids content.
Features:
1.The hardness of the ceramic material can be higher than HRC80.
2.Engineering internal parts of ceramic ball valve provide superior protection from corrosive and abrasive medium.
3.Customized actuation types are installed on the ceramic ball valve, the manual lever or gear box, as well as with pneumatic, electric and hydraulic actuators
4.Customized V type ceramic control valve is also available for us.
5.The valve has a floating ball design, the ball is floating, the ball has a defined clearance and is pressed against the downstream seat under the differential pressure to achieve sealing.
6. round port for inlet and outlet port
Technical Specification
Flange Standards ASME B16.5,GB/T9113
Nominal Pressure 1.0MPa,Class150
Size Range :DN50~DN 200, NPS2 ~NPS8
Connection type Flange
Working Temperature ≤200℃
Operating Type: Manual, Pneumatic and Electric
Sealing surface material:Engineering ceramic
Ball material:Zirconia ceramic
Pressure test GB/T13927, API598
Face to Face GB/T12221, ASME B16.10
Application
FREE- VALVE’s Stainless Steel Bare Stem Full Lined Ceramic Ball Valves are suitable for Silicon Powder, Alumina Powder, Dry Coal Powder, Limestone Slurry, Gypsum Slurry, Plaster, Fly Ash, Mining Ore, Coal Powder Injection, Metallurgical dust, Thermal Power plant FGD , LiCoO2 powder equipment
