Product Description:

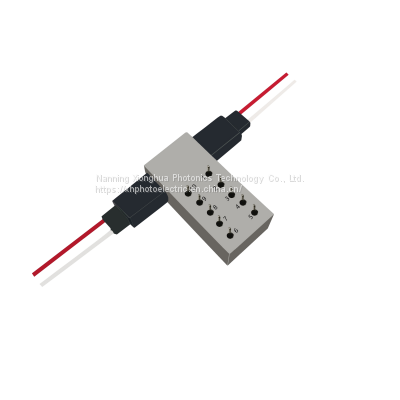

XH-OSW-2X2F full-switching mechanical optical switch is a kind of optical path control device, which has the function of controlling the optical path and converting the optical path; it can realize the two-way direct and cross function of the optical path. It plays an important role in optical communication applications. Optical switches are mainly used in multi-channel optical monitoring in optical transmission systems, LAN multi-light source/detector automatic switching, and optical sensing multi-point dynamic monitoring system optical test systems for optical fibers, optical devices, networks and field engineering optical cables Test; optical device installation and adjustment.
Features:
●Low insertion loss, wide wavelength range
●Low channel crosstalk, high stability, high reliability
●Simple control, small size, easy to embed in the circuit board
●Locking and non-locking control types can be selected
Parameter :
parameter |
Parameter value |
|
model |
XH-OSW-2X2F |
|
Insertion loss（dB） |
Typical value：0.5 Max：1.0 |
|
Wavelength range（nm） |
800~1310 |
1260~1650 |
Working wavelength（nm） |
850/980/1310 |
1310/1550/1625 |
Return loss（dB） |
Multimode≥30 |
Single mode ≥50 |
Channel crosstalk（dB） |
Multimode≥ 35 |
Single mode ≥55 |
PDL（dB） |
≤0.05 |
|
WDL（dB） |
≤0.25 |
|
TDL（dB） |
≤0.25 |
|
Repeatability（dB） |
≤±0.02 |
|
Switching times（Times） |
≥107 |
|
Switching time（ms） |
≤8 |
|
Transmission power（mW） |
≤500 |
|
Operating Voltage（V） |
3 or 5 |
|
Operating temperature（℃） |
-20~+70 |
|
Storage temperature（℃） |
-40~+85 |
|
Package size（mm） |
(L)27.0×(W)12.5×(H)8.4±0.2 |
|
Tip: The above are commonly used optical switch parameters, if you have other requirements, please consult and customize.
