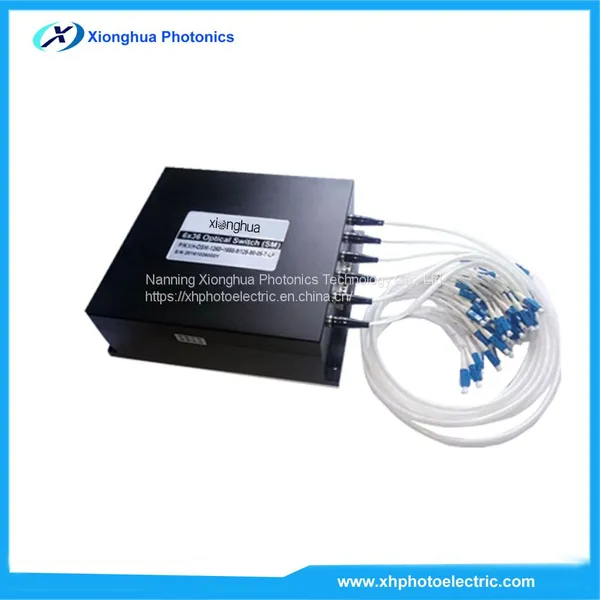

The XH-OSW-6X36 matrix optical switch module is a kind of optical path control device, which can be arbitrarily interconnected
among multiple groups of input ports and multiple groups of output ports. Due to its advantages such as good
environmental performance, it is mainly used in optical communication for cross-connection of backbone optical nodes,
multi-dimensional online monitoring, etc.
Features
Low insertion loss, wide wavelength range
Low channel crosstalk, high stability, high reliability
Proprietary technology, no glue in the optical path
Locking and non-locking control types are available
Performance
Parameter |
Parameter Values |
|
Model |
XH-OSW-6X36 |
|
|
Insertion Loss |
||
Typ:0.5 dB Max:1.0 dB | ||
Wavelength Range |
532~1064 nm |
1260~1650 nm |
Wavelength Testing |
532/650/780/850/980 nm |
1310/1490/1550/1625 nm |
Return Loss |
MM ≥ 30 SM ≥ 50 |
|
Crosstalk |
MM ≥ 70 SM ≥ 70 |
|
PDL |
≤0.05dB |
|
WDL |
≤0.25 dB |
|
TDL |
≤0.25 dB |
|
Repeatability |
≤0.02 dB |
|
Lifetime |
≥107 |
|
Switching Time |
≤8 ms |
|
Transmission Power |
≤500 mW |
|
Connector |
FC,LC,SC,ST |
|
Control |
TTL |
|
Operating Voltage |
5V |
|
Working Current |
500mA |
|
Operating Temperature |
-20 ºC ~ +70 ºC |
|
Storage Temperature |
-40 ºC ~ +85 ºC |
|
Dimensions
