Help Center1X128 Rack-mounted Optic Switch
Related Products
-
1X128 Mechanical Optical SwitchNegotiableMOQ: 1 Piece -
1X32 Rack-mounted Optical SwitchNegotiableMOQ: 1 Piece
-
1X4 Optical SwitchNegotiableMOQ: 1 Piece
-
Rackmount Optical Switch (Rack Mounted Fiber Optical Switch1X8)US$ 800 - 1500MOQ: 1 Piece
-
1X32 Optical Switch With Sm 9/125um Fiber 400~2000nm WavelengthUS$ 1500 - 2000MOQ: 1 Piece

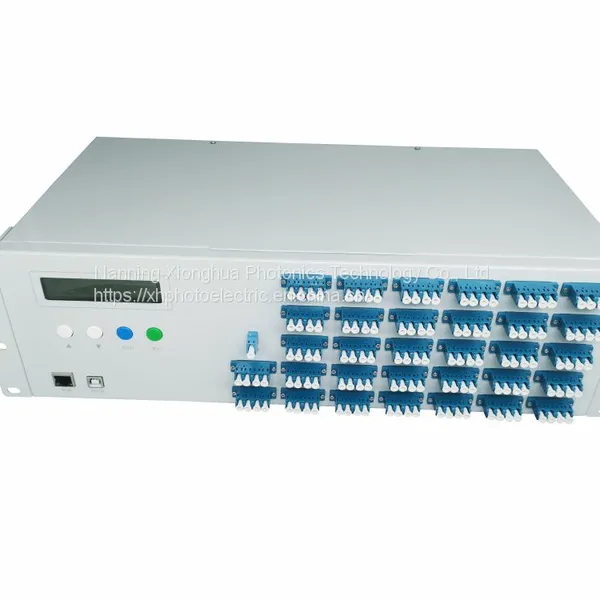

1×128 rack-mounted optic switch is a kind of functional device,with the ability of controlling and switching optical route. It can be manually selected from front panel or controlled via RS232 port, Ethernet port and auto-scanned on certain frequency. In optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.
Features
●Low insertion loss, Fast switching
●SerialNet, High Reliability, High Stability
●LCD display panel. Visual display, Convenient operation
●Transparent transmission signal. High stability and reliability
●Channel and time interval of automatic scanning can be set up
● RS232 Control and RJ45 Ethernet Remote Management
Applications
● FITL
● Automatic Measurement
● Optical Network Remote Monitoring
● Cable Monitoring and Maintaining system
Parameters
Parameters |
Unit |
Indicators |
Unit Type |
XH- FSW-1X128 |
|
Wavelength Range |
nm |
1250~1700nm |
Test Wavelength |
nm |
1550nm |
Insertion Loss |
dB |
Typ. ≤0.8dB,Max.≤1.5 dB |
Repeatability |
dB |
≤ 0.02 |
Return Loss |
dB |
≥ 50 |
Crosstalk |
dB |
≥ 70 |
WDL |
dB |
≤ 0.25 |
PDL |
dB |
≤ 0.05 |
Optical Power |
mW |
≤ 500 |
Switching Time |
ms |
12 ms（adjacent channel） |
Fiber Type |
um |
9/125 |
Connector |
LC/PC |
|
Monitoring Port |
RJ45 & RS-232 |
|
|
Working Power Supply （Plug-type） |
V |
AC:100～ 240 (50/60Hz) |
Power Consumption |
W |
＜ 10 |
Operating Temperature |
℃ |
-10 ～ 60 |
Size |
mm |
3U:483 x 230 x 134 |
