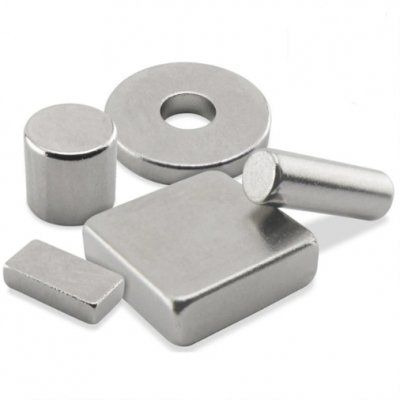

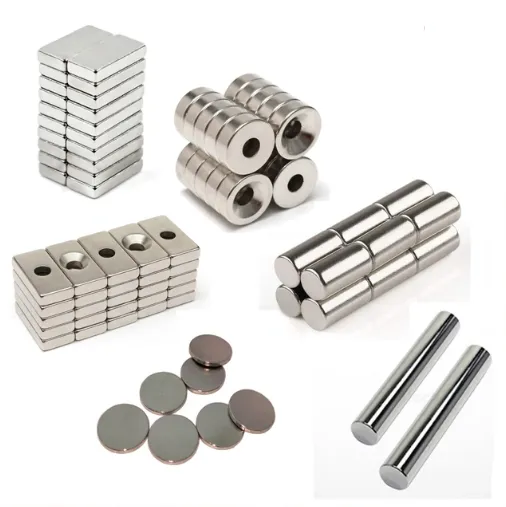

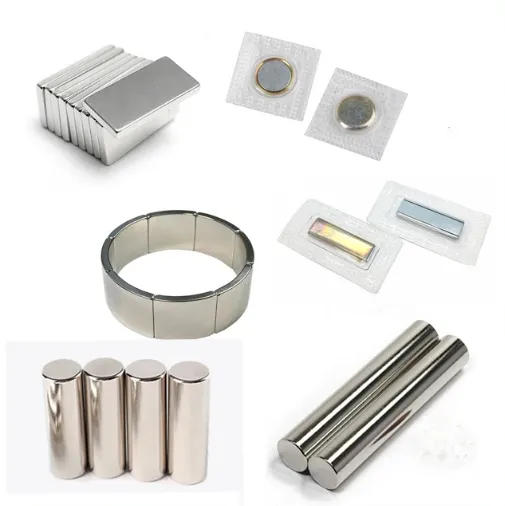

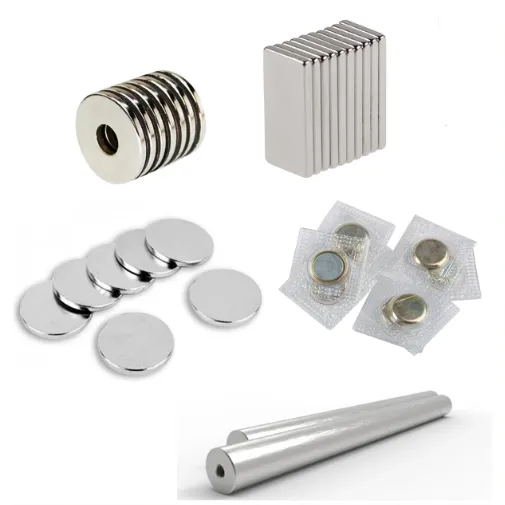

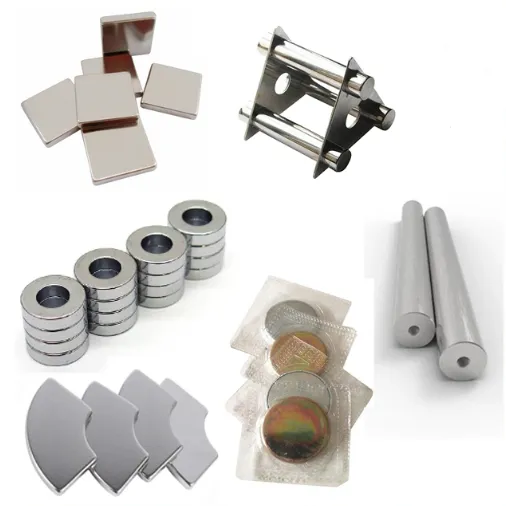

High Performance NdFeB Neodymium Mfgnetic Disk, Ball, Block, Ring, Cylinder,Customized Magnet
| Item | Ndfeb Magnet |
| Grade | N35~N52,38M-48M,35H-48H,33SH-44SH,30UH-35UH,30EH-35EH |
| Composition | Neodymium Magnet |
| Application | Voice-coil Motor(VCM), MRI, Generator, Car, Speaker, Computer |
| Working Temperature | 80ºC~200ºC |
| Coating | Zinc, Color Zinc, Nickel etc |
| Dimension | Customized size |
| Magnetism Direction | Through thickness(Axially)+Radially |
| Type | Strong&Permanent |
| Performance | Permanent, Strong, Rust-proof, Anti-corrosion |
| Grade | Remanence | Coercivity Force | Intrinsic Coercive Force | Max. Energy Product | Working Temp. | ||||
| Br | Hcb | Hcj | (BH)max | ||||||
| mT | kGs | kA/m | kOe | kA/m | kOe | kJ/m3 | MGOe | ||
| N35 | 1170-1220 | 11.7-12.2 | ≥ 868 | ≥ 10.9 | ≥ 955 | ≥ 12 | 263-287 | 33-36 | 80 ° C |
| N38 | 1220-1250 | 12.2-12.5 | ≥ 899 | ≥ 11.3 | ≥ 955 | ≥ 12 | 287-310 | 36-39 | 80 ° C |
| N40 | 1250-1280 | 12.5-12.8 | ≥ 907 | ≥ 11.4 | ≥ 955 | ≥ 12 | 302-326 | 38-41 | 80 ° C |
| N42 | 1280-1320 | 12.8-13.2 | ≥ 915 | ≥ 11.5 | ≥ 955 | ≥ 12 | 318-342 | 40-43 | 80 ° C |
| N45 | 1320-1380 | 13.2-13.8 | ≥ 923 | ≥ 11.6 | ≥ 955 | ≥ 12 | 342-366 | 43-46 | 80 ° C |
| N48 | 1380-1420 | 13.8-14.2 | ≥ 923 | ≥ 11.6 | ≥ 876 | ≥ 12 | 366-390 | 46-49 | 80 ° C |
| N50 | 1400-1450 | 14.0-14.5 | ≥ 796 | ≥ 10.0 | ≥ 876 | ≥ 11 | 382-406 | 48-51 | 60 ° C |
| N52 | 1430-1480 | 14.3-14.8 | ≥ 796 | ≥ 10.0 | ≥ 876 | ≥ 11 | 398-422 | 50-53 | 60 ° C |
| 35M | 1170-1220 | 11.7-12.2 | ≥ 868 | ≥ 10.9 | ≥ 1114 | ≥ 14 | 263-287 | 33-36 | 100 ° C |
| 38M | 1220-1250 | 12.2-12.5 | ≥ 899 | ≥ 11.3 | ≥ 1114 | ≥ 14 | 287-310 | 36-39 | 100 ° C |
| 40M | 1250-1280 | 12.5-12.8 | ≥ 923 | ≥ 11.6 | ≥ 1114 | ≥ 14 | 302-326 | 38-41 | 100 ° C |
| 42M | 1280-1320 | 12.8-13.2 | ≥ 955 | ≥ 12.0 | ≥ 1114 | ≥ 14 | 318-342 | 40-43 | 100 ° C |
| 45M | 1320-1380 | 13.2-13.8 | ≥ 995 | ≥ 12.5 | ≥ 1114 | ≥ 14 | 342-366 | 43-46 | 100 ° C |
| 48M | 1360-1430 | 13.6-14.3 | ≥ 1027 | ≥ 12.9 | ≥ 1114 | ≥ 14 | 366-390 | 46-49 | 100 ° C |
| 50M | 1400-1450 | 14.0-14.5 | ≥ 1033 | ≥ 13.0 | ≥ 1114 | ≥ 14 | 382-406 | 48-51 | 100 ° C |
| 35H | 1170-1220 | 11.7-12.2 | ≥ 868 | ≥ 10.9 | ≥ 1353 | ≥ 17 | 263-287 | 33-36 | 120 ° C |
| 38H | 1220-1250 | 12.2-12.5 | ≥ 899 | ≥ 11.3 | ≥ 1353 | ≥ 17 | 287-310 | 36-39 | 120 ° C |
| 40H | 1250-1280 | 12.5-12.8 | ≥ 923 | ≥ 11.6 | ≥ 1353 | ≥ 17 | 302-326 | 38-41 | 120 ° C |
| 42H | 1280-1320 | 12.8-13.2 | ≥ 955 | ≥ 12.0 | ≥ 1353 | ≥ 17 | 318-342 | 40-43 | 120 ° C |
| 45H | 1300-1360 | 13-13.6 | ≥ 963 | ≥ 12.1 | ≥ 1353 | ≥ 17 | 326-358 | 43-46 | 120 ° C |
| 48H | 1370-1430 | 13.7-14.3 | ≥ 995 | ≥ 12.5 | ≥ 1353 | ≥ 17 | 366-390 | 46-49 | 120 ° C |
| 33SH | 1130-1170 | 11.3-11.7 | ≥ 844 | ≥ 10.6 | ≥ 1592 | ≥ 20 | 247-271 | 31-34 | 150 ° C |
| 35SH | 1170-1220 | 11.7-12.2 | ≥ 876 | ≥ 11.0 | ≥ 1592 | ≥ 20 | 263-287 | 33-36 | 150 ° C |
| 38SH | 1220-1250 | 12.2-12.5 | ≥ 907 | ≥ 11.4 | ≥ 1592 | ≥ 20 | 287-310 | 36-39 | 150 ° C |
| 40SH | 1240-1280 | 12.5-12.8 | ≥ 939 | ≥ 11.8 | ≥ 1592 | ≥ 20 | 302-326 | 38-41 | 150 ° C |
| 42SH | 1280-1320 | 12.8-13.2 | ≥ 987 | ≥ 12.4 | ≥ 1592 | ≥ 20 | 318-342 | 40-43 | 150 ° C |
| 45SH | 1320-1380 | 13.2-13.8 | ≥ 1003 | ≥ 12.6 | ≥ 1592 | ≥ 20 | 342-366 | 43-46 | 150 ° C |
| 30UH | 1080-1130 | 10.8-11.3 | ≥ 812 | ≥ 10.2 | ≥ 1990 | ≥ 25 | 223-247 | 28-31 | 180 ° C |
| 33UH | 1130-1170 | 11.3-11.7 | ≥ 852 | ≥ 10.7 | ≥ 1990 | ≥ 25 | 247-271 | 31-34 | 180 ° C |
| 35UH | 1180-1220 | 11.8-12.2 | ≥ 860 | ≥ 10.8 | ≥ 1990 | ≥ 25 | 263-287 | 33-36 | 180 ° C |
| 38UH | 1220-1250 | 12.2-12.5 | ≥ 876 | ≥ 11.0 | ≥ 1990 | ≥ 25 | 287-310 | 36-39 | 180 ° C |
| 40UH | 1240-1280 | 12.5-12.8 | ≥ 899 | ≥ 11.3 | ≥ 1990 | ≥ 25 | 302-326 | 38-41 | 180 ° C |
Our Company
Ningbo JLL International Trade Co.,Ltd. Specializing in the production and sale of magnetic
NdFeB, magnetic bar, magnetic products, magnetic frame. Magnets of various shapes and sizes
can be produced according to customer requirements, such as packaging diskette, the motor
magnetic tile, magnetic ring, toy bar magnet, magnetic ball, with the exception of iron magnetic rods,
magnetic hooks, magnetic separator box;Surface treatment: Gold, silver, plated epoxy, nickel- plated
copper-nickel, zinc, chromium, titanium (blue zinc, black zinc, color zinc), above the
surface treatment to meet environmental requirements.
Purchasing Guides:
To offer you prompt and best prices, pls kindly furnish us the following details:
1) The dimension, coating, grade and magnetism direction(Axial or Radial)
2) Order Quantity( Prices depends on quantities)
3) Application(If you are not sure about the size, pls let us know the usage, then we can give some
professional recommands)
4) Drawings offering if you have.
5) Other customized requirements
Popular Applications:
1). Electronics - Sensors, hard disk drives, sophisticated switches, electro-mechanical devices.
2). Auto Industry - DC motors (hybrid and electric), small high-performance motors, power steering;
3). Medical - MRI equipment and scanners;
4). Clean Tech Energy - Water flow enhancement, wind turbines;
5). Magnetic Separators - Used for recycling, food and liquids QC, waste removal;
6). Magnetic Bearing - Used for highly sensitive and delicate procedures in various heavy industries.
Our Advantages:
1. 15 years professional Neodymium Magnet Manufacturer
2. Trade Assurance to Secure your trade safety
3. High quality Rare earth Materials used.
4. Fast delivery Time for magnet produce and Magnetic Assemblies.
5. Free sample available.
6. Difference Specification Choice
7. Experienced Staff
8. Advanced equipment
9. OEM are welcomed,samples is available,small orders accepted
10.100% Quality & Best Service Guarantee:Competitive pricing doesn't mean we skimp on service.
Our fully staffed office of experienced professionals strives to return your quote on the same
business day.
11. Payment:We can accept T/T,L/C,Paypal
Payment Term:
T/T, L/C, PayPal.
Package & Shipment:
1. By Express(DHL, FedEx, TNT, UPS ect): Door to door, Short Delivery time, 3-5 days.
2. By Air: Short Delivery Time, 3-7 days.
3. By Sea: Cheap Shipping Cost, 7-30 days.
Package: Magnetic Isolation Package
Carton: 36*27*15CM
FAQ:
1. How to get quick quotation?
Kindly offer us the specific size, quantity, coating(zinc/nickel), magnetism direction
ect other requiries. Then best price will be offered ASAP.
2.What about the lead time?
(1) Sample: 5-7 days.
(2) Batch quantity: 7-12 days.
3.What's the MOQ?
(1) Spot Stocks: No MOQ;
(2) Regular Size: 500 PCS, 1000 PCS, 2000 PCS, 5000 PCS ect.
(3) Other Size: 2000 PCS, 5000 PCS, 10000 PCS ect.
4. Terms of Paymemt:
(1). T/T in advance(telegraphic transfer-bank order)
(2). Western Union cash - for small order or samples order.
(3). PayPal- for small order, quick receipt
Please feel free to contact me for any questions and requiries.
