NdFeB Industrial Permanent Magnetic Bar With Screw Holes

NdFeB Industrial Permanent Magnetic Bar With Screw Holes thumbnail-1
NdFeB Industrial Permanent Magnetic Bar With Screw Holes thumbnail-2
NdFeB Industrial Permanent Magnetic Bar With Screw Holes thumbnail-3
NdFeB Industrial Permanent Magnetic Bar With Screw Holes thumbnail-4
NdFeB Industrial Permanent Magnetic Bar With Screw Holes thumbnail-5
NdFeB Industrial Permanent Magnetic Bar With Screw Holes photo-1
NdFeB Industrial Permanent Magnetic Bar With Screw Holes photo-2
NdFeB Industrial Permanent Magnetic Bar With Screw Holes photo-3
NdFeB Industrial Permanent Magnetic Bar With Screw Holes photo-4
NdFeB Industrial Permanent Magnetic Bar With Screw Holes photo-5
US$ 20 - 30 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
JLL
Place of Origin:
China
Model Number:
N35-N52
Contact Supplier Request Quote Chat Now
Ningbo JLL International Trade Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name JLL
Place of Origin China
Model Number N35-N52
Shape Other, Bar
Type Permanent
Application Industrial Magnet
Composite NdFeB Magnet

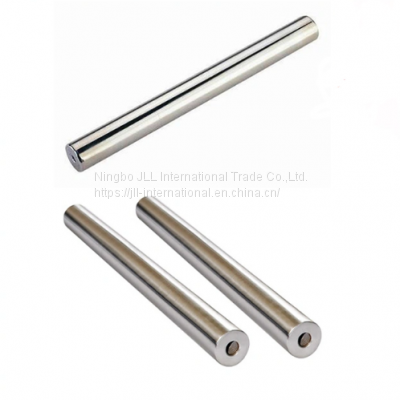

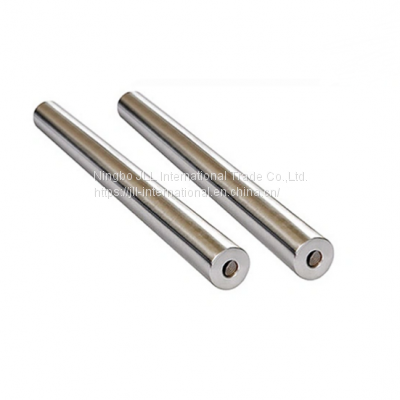

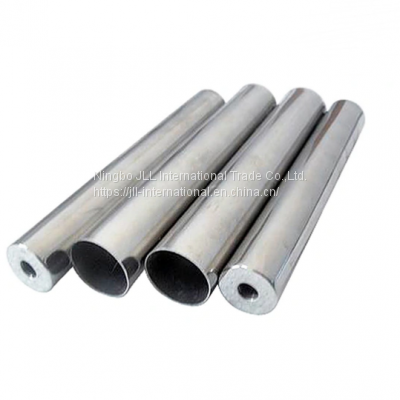

NdFeB Industrial Permanent Magnetic Bar with Screw Holes


Item Magnetic Bar
Gauss 6000-12000 Gauss
Material Neodymium Magnet+SUS304/316L Pipe
Shape Rod, bar, stick, wand ect.
Working Temp.
Casing SUS304/316L
Dimension Dia: 16mm, 20mm, 22mm, 25mm, 28mm, 30mm, 32mm,50mm ect.
Application Industrial filter, food industry, Ceramic industry ect.
Feature Eco-friendly, Green Product, long life.
Performance Permanent, Strong, Rust-proof, Anti-corrosion

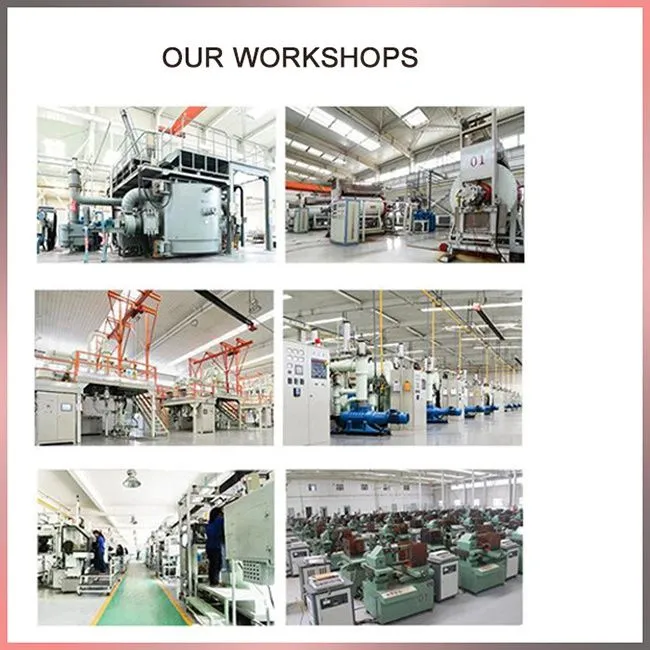

Our Company

Ningbo JLL International Trade Co.,Ltd. Specializing in the production and sale of
magnetic NdFeB, magnetic bar, magnetic products, magnetic frame. Magnets of various
shapes and sizes can be produced according to customer requirements, such as packaging
diskette, the motor magnetic tile, magnetic ring, toy bar magnet, magnetic ball, with the
exception of iron magnetic rods, magnetic hooks, magnetic separator box; Surface treatment:
Gold, silver, plated epoxy, nickel-plated copper-nickel, zinc, chromium, titanium (blue zinc,
black zinc, color zinc), above the surface treatment to meet environmental requirements.


NdFeB Industrial Permanent Magnetic Bar with Screw Holes


Grade Remanence Coercivity Force Intrinsic Coercive Force Max. Energy Product Working Temp.

Br Hcb Hcj (BH)max
mT kGs kA/m kOe kA/m kOe kJ/m3 MGOe
N35 1170-1220 11.7-12.2 ≥ 868 ≥ 10.9 ≥ 955 ≥ 12 263-287 33-36 80 ° C
N38 1220-1250 12.2-12.5 ≥ 899 ≥ 11.3 ≥ 955 ≥ 12 287-310 36-39 80 ° C
N40 1250-1280 12.5-12.8 ≥ 907 ≥ 11.4 ≥ 955 ≥ 12 302-326 38-41 80 ° C
N42 1280-1320 12.8-13.2 ≥ 915 ≥ 11.5 ≥ 955 ≥ 12 318-342 40-43 80 ° C
N45 1320-1380 13.2-13.8 ≥ 923 ≥ 11.6 ≥ 955 ≥ 12 342-366 43-46 80 ° C
N48 1380-1420 13.8-14.2 ≥ 923 ≥ 11.6 ≥ 876 ≥ 12 366-390 46-49 80 ° C
N50 1400-1450 14.0-14.5 ≥ 796 ≥ 10.0 ≥ 876 ≥ 11 382-406 48-51 60 ° C
N52 1430-1480 14.3-14.8 ≥ 796 ≥ 10.0 ≥ 876 ≥ 11 398-422 50-53 60 ° C
35M 1170-1220 11.7-12.2 ≥ 868 ≥ 10.9 ≥ 1114 ≥ 14 263-287 33-36 100 ° C
38M 1220-1250 12.2-12.5 ≥ 899 ≥ 11.3 ≥ 1114 ≥ 14 287-310 36-39 100 ° C
40M 1250-1280 12.5-12.8 ≥ 923 ≥ 11.6 ≥ 1114 ≥ 14 302-326 38-41 100 ° C
42M 1280-1320 12.8-13.2 ≥ 955 ≥ 12.0 ≥ 1114 ≥ 14 318-342 40-43 100 ° C
45M 1320-1380 13.2-13.8 ≥ 995 ≥ 12.5 ≥ 1114 ≥ 14 342-366 43-46 100 ° C
48M 1360-1430 13.6-14.3 ≥ 1027 ≥ 12.9 ≥ 1114 ≥ 14 366-390 46-49 100 ° C
50M 1400-1450 14.0-14.5 ≥ 1033 ≥ 13.0 ≥ 1114 ≥ 14 382-406 48-51 100 ° C
35H 1170-1220 11.7-12.2 ≥ 868 ≥ 10.9 ≥ 1353 ≥ 17 263-287 33-36 120 ° C
38H 1220-1250 12.2-12.5 ≥ 899 ≥ 11.3 ≥ 1353 ≥ 17 287-310 36-39 120 ° C
40H 1250-1280 12.5-12.8 ≥ 923 ≥ 11.6 ≥ 1353 ≥ 17 302-326 38-41 120 ° C
42H 1280-1320 12.8-13.2 ≥ 955 ≥ 12.0 ≥ 1353 ≥ 17 318-342 40-43 120 ° C
45H 1300-1360 13-13.6 ≥ 963 ≥ 12.1 ≥ 1353 ≥ 17 326-358 43-46 120 ° C
48H 1370-1430 13.7-14.3 ≥ 995 ≥ 12.5 ≥ 1353 ≥ 17 366-390 46-49 120 ° C
33SH 1130-1170 11.3-11.7 ≥ 844 ≥ 10.6 ≥ 1592 ≥ 20 247-271 31-34 150 ° C
35SH 1170-1220 11.7-12.2 ≥ 876 ≥ 11.0 ≥ 1592 ≥ 20 263-287 33-36 150 ° C
38SH 1220-1250 12.2-12.5 ≥ 907 ≥ 11.4 ≥ 1592 ≥ 20 287-310 36-39 150 ° C
40SH 1240-1280 12.5-12.8 ≥ 939 ≥ 11.8 ≥ 1592 ≥ 20 302-326 38-41 150 ° C
42SH 1280-1320 12.8-13.2 ≥ 987 ≥ 12.4 ≥ 1592 ≥ 20 318-342 40-43 150 ° C
45SH 1320-1380 13.2-13.8 ≥ 1003 ≥ 12.6 ≥ 1592 ≥ 20 342-366 43-46 150 ° C
30UH 1080-1130 10.8-11.3 ≥ 812 ≥ 10.2 ≥ 1990 ≥ 25 223-247 28-31 180 ° C
33UH 1130-1170 11.3-11.7 ≥ 852 ≥ 10.7 ≥ 1990 ≥ 25 247-271 31-34 180 ° C
35UH 1180-1220 11.8-12.2 ≥ 860 ≥ 10.8 ≥ 1990 ≥ 25 263-287 33-36 180 ° C
38UH 1220-1250 12.2-12.5 ≥ 876 ≥ 11.0 ≥ 1990 ≥ 25 287-310 36-39 180 ° C
40UH 1240-1280 12.5-12.8 ≥ 899 ≥ 11.3 ≥ 1990 ≥ 25 302-326 38-41 180 ° C

Remarks:
(1)."√"means it can be manufactured on the condition of the diameters listed in the table.
"- "means can not be manufactured.
(2). The related Max working temperature from different series.
H series: SH series: UH series: EH series: (3).Round and square are both available
(4). 304 and 316L stainless steel type are available
(5). Magnetic bar length can be custom made .Max length of is 2500mm when diamteter is 25mm.
(6). Various end design are available ,such as Nail head ,thread hole ,double screw bolt ,etc .

Our advantage:

1. More than 15-year magnet manufacturing experience, quality, lead time, price and service have been gauranteed.
2. Professional R&D department, with a professional technologist team.
3. Much Experienced Export Customs Declare Team.
4. Low MOQ and free samples.

Applications:

NdFeB Industrial Permanent Magnetic Bar with Screw Holes

Payment Term:

T/T, L/C,PayPal.

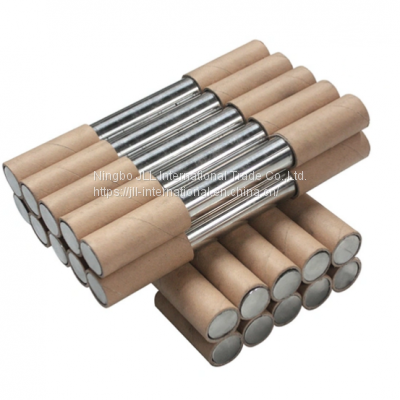

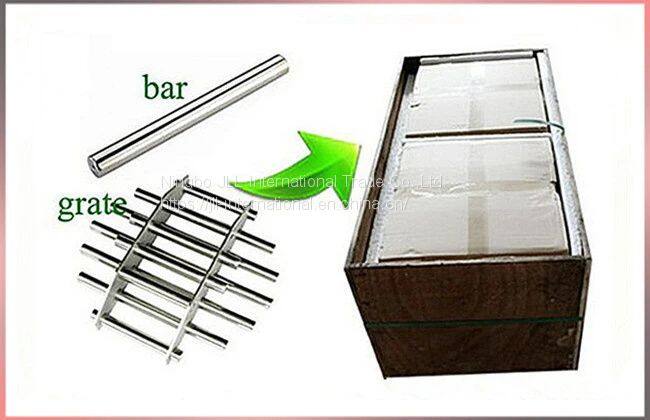

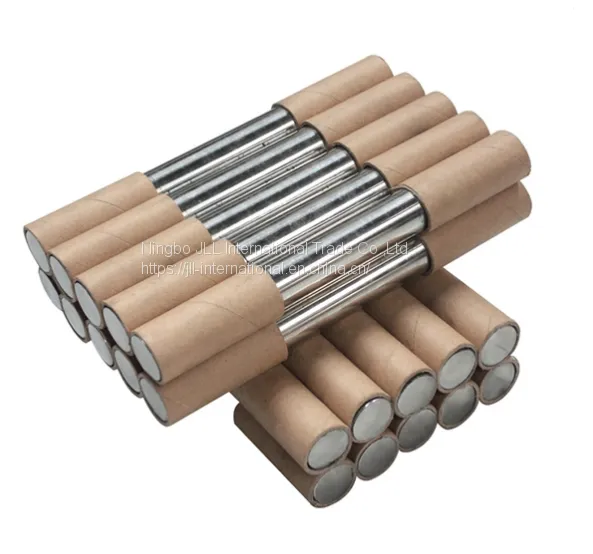

Package & Shipment
1. By Express(DHL, FedEx, TNT, UPS ect): Door to door, Short Delivery time, 3-5 days.
2. By Air: Short Delivery Time, 3-7 days.
3. By Sea: Cheap Shipping Cost, 7-30 days.

NdFeB Industrial Permanent Magnetic Bar with Screw Holes

Package: Magnetic Isolation Package
Carton: 36*27*15CM


How to contact us?

FAQ:
1. How to get quick quotation?
Kindly offer us the specific size, quantity, coating(zinc/nickel), magnetism direction ect
other requiries. Then best price will be offered ASAP.

2.What about the lead time?
(1) Sample: 5-7 days.
(2) Batch quantity: 7-12 days.

3.What's the MOQ?
Normally regular Size: ≥1 Piece.

4. Terms of Paymemt:
(1). T/T in advance(telegraphic transfer-bank order)
(2). Western Union cash - for small order or samples order.
(3). PayPal- for small order, quick receipt

Please feel free to contact me for any questions and requiries.
