Home > Metallurgy, Mineral & Energy > Magnetic Material > NdFeB Magnet > High Performance NdFeB Magnetic Bar for Magnetic Filter/Separator

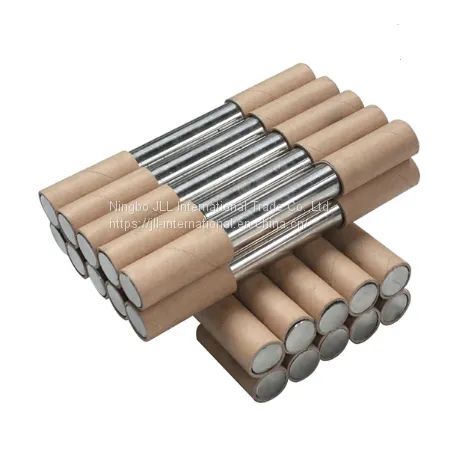

High Performance NdFeB Magnetic Bar for Magnetic Filter/Separator

High Performance NdFeB Magnetic Bar for Magnetic Filter/Separator thumbnail-1
High Performance NdFeB Magnetic Bar for Magnetic Filter/Separator thumbnail-2
High Performance NdFeB Magnetic Bar for Magnetic Filter/Separator thumbnail-3
High Performance NdFeB Magnetic Bar for Magnetic Filter/Separator thumbnail-4
High Performance NdFeB Magnetic Bar for Magnetic Filter/Separator photo-1
High Performance NdFeB Magnetic Bar for Magnetic Filter/Separator photo-2
High Performance NdFeB Magnetic Bar for Magnetic Filter/Separator photo-3
High Performance NdFeB Magnetic Bar for Magnetic Filter/Separator photo-4
US$ 20 - 30 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
JLL
Place of Origin:
China
Model Number:
N35-N52
Contact Supplier Request Quote Chat Now
Ningbo JLL International Trade Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name JLL
Place of Origin China
Model Number N35-N52
Shape Other, Stick
Type Permanent
Application Industrial Magnet
Composite NdFeB Magnet

High Performance NdFeB Magnetic Bar for Magnetic Filter/Separator


Item Magnetic Bar
Gauss 6000-12000 Gauss
Material Neodymium Magnet+SUS304/316L Pipe
Shape Rod, bar, stick, wand ect.
Working Temp. 80ºC~200ºC
Casing SUS304/316L
Dimension Dia: 16mm, 20mm, 22mm, 25mm, 28mm, 30mm, 32mm,50mm ect.
Application Industrial filter, food industry, Ceramic industry ect.
Feature Eco-friendly, Green Product, long life.
Performance Permanent, Strong, Rust-proof, Anti-corrosion

Our Company

Ningbo JLL International Trade Co.,Ltd. Specializing in the production and sale of
magnetic NdFeB, magnetic bar, magnetic products, magnetic frame. Magnets of various
shapes and sizes can be produced according to customer requirements, such as packaging
diskette, the motor magnetic tile, magnetic ring, toy bar magnet, magnetic ball, with the
exception of iron magnetic rods, magnetic hooks, magnetic separator box; Surface treatment:
Gold, silver, plated epoxy, nickel-plated copper-nickel, zinc, chromium, titanium (blue zinc,
black zinc, color zinc), above the surface treatment to meet environmental requirements.


Grade Remanence Coercivity Force Intrinsic Coercive Force Max. Energy Product Working Temp.

Br Hcb Hcj (BH)max
mT kGs kA/m kOe kA/m kOe kJ/m3 MGOe
N35 1170-1220 11.7-12.2 ≥ 868 ≥ 10.9 ≥ 955 ≥ 12 263-287 33-36 80 ° C
N38 1220-1250 12.2-12.5 ≥ 899 ≥ 11.3 ≥ 955 ≥ 12 287-310 36-39 80 ° C
N40 1250-1280 12.5-12.8 ≥ 907 ≥ 11.4 ≥ 955 ≥ 12 302-326 38-41 80 ° C
N42 1280-1320 12.8-13.2 ≥ 915 ≥ 11.5 ≥ 955 ≥ 12 318-342 40-43 80 ° C
N45 1320-1380 13.2-13.8 ≥ 923 ≥ 11.6 ≥ 955 ≥ 12 342-366 43-46 80 ° C
N48 1380-1420 13.8-14.2 ≥ 923 ≥ 11.6 ≥ 876 ≥ 12 366-390 46-49 80 ° C
N50 1400-1450 14.0-14.5 ≥ 796 ≥ 10.0 ≥ 876 ≥ 11 382-406 48-51 60 ° C
N52 1430-1480 14.3-14.8 ≥ 796 ≥ 10.0 ≥ 876 ≥ 11 398-422 50-53 60 ° C
35M 1170-1220 11.7-12.2 ≥ 868 ≥ 10.9 ≥ 1114 ≥ 14 263-287 33-36 100 ° C
38M 1220-1250 12.2-12.5 ≥ 899 ≥ 11.3 ≥ 1114 ≥ 14 287-310 36-39 100 ° C
40M 1250-1280 12.5-12.8 ≥ 923 ≥ 11.6 ≥ 1114 ≥ 14 302-326 38-41 100 ° C
42M 1280-1320 12.8-13.2 ≥ 955 ≥ 12.0 ≥ 1114 ≥ 14 318-342 40-43 100 ° C
45M 1320-1380 13.2-13.8 ≥ 995 ≥ 12.5 ≥ 1114 ≥ 14 342-366 43-46 100 ° C
48M 1360-1430 13.6-14.3 ≥ 1027 ≥ 12.9 ≥ 1114 ≥ 14 366-390 46-49 100 ° C
50M 1400-1450 14.0-14.5 ≥ 1033 ≥ 13.0 ≥ 1114 ≥ 14 382-406 48-51 100 ° C
35H 1170-1220 11.7-12.2 ≥ 868 ≥ 10.9 ≥ 1353 ≥ 17 263-287 33-36 120 ° C
38H 1220-1250 12.2-12.5 ≥ 899 ≥ 11.3 ≥ 1353 ≥ 17 287-310 36-39 120 ° C
40H 1250-1280 12.5-12.8 ≥ 923 ≥ 11.6 ≥ 1353 ≥ 17 302-326 38-41 120 ° C
42H 1280-1320 12.8-13.2 ≥ 955 ≥ 12.0 ≥ 1353 ≥ 17 318-342 40-43 120 ° C
45H 1300-1360 13-13.6 ≥ 963 ≥ 12.1 ≥ 1353 ≥ 17 326-358 43-46 120 ° C
48H 1370-1430 13.7-14.3 ≥ 995 ≥ 12.5 ≥ 1353 ≥ 17 366-390 46-49 120 ° C
33SH 1130-1170 11.3-11.7 ≥ 844 ≥ 10.6 ≥ 1592 ≥ 20 247-271 31-34 150 ° C
35SH 1170-1220 11.7-12.2 ≥ 876 ≥ 11.0 ≥ 1592 ≥ 20 263-287 33-36 150 ° C
38SH 1220-1250 12.2-12.5 ≥ 907 ≥ 11.4 ≥ 1592 ≥ 20 287-310 36-39 150 ° C
40SH 1240-1280 12.5-12.8 ≥ 939 ≥ 11.8 ≥ 1592 ≥ 20 302-326 38-41 150 ° C
42SH 1280-1320 12.8-13.2 ≥ 987 ≥ 12.4 ≥ 1592 ≥ 20 318-342 40-43 150 ° C
45SH 1320-1380 13.2-13.8 ≥ 1003 ≥ 12.6 ≥ 1592 ≥ 20 342-366 43-46 150 ° C
30UH 1080-1130 10.8-11.3 ≥ 812 ≥ 10.2 ≥ 1990 ≥ 25 223-247 28-31 180 ° C
33UH 1130-1170 11.3-11.7 ≥ 852 ≥ 10.7 ≥ 1990 ≥ 25 247-271 31-34 180 ° C
35UH 1180-1220 11.8-12.2 ≥ 860 ≥ 10.8 ≥ 1990 ≥ 25 263-287 33-36 180 ° C
38UH 1220-1250 12.2-12.5 ≥ 876 ≥ 11.0 ≥ 1990 ≥ 25 287-310 36-39 180 ° C
40UH 1240-1280 12.5-12.8 ≥ 899 ≥ 11.3 ≥ 1990 ≥ 25 302-326 38-41 180 ° C

Magnetic grate optional features:
1. The shell material: SS304, SS316,SS316L;
2. The magnetic strength grade: 6000Gs, 8000Gs,10000Gs, 11000GS, 12000Gs;
3. Working temperature grade <: degree celsius>
4. Various designs available: easy clean type, one layer, multilayer;
5. Sizes and Shape: any sizes and any shapes, such as square, rectangle,
round, oval, triangle, rhombus or irregular polygon;
6. Also takes customers' designs.

Specification:
Our standard bars is 25mm. (1 inch) in diameter and any length per customers'
request up to 2500mm...
Besides, we also take special orders, such as square shape Magnetic bars.
Normal Size: Dia25x100mm, Dia25x150mm, Dia25x200mm, Dia25x250mm,
Dia25x300mm, Dia25x350mm, Dia25x400mm, Dia25x450mm, Dia25x500mm,
Dia25x10000mm, Dia25x15000mm

Maximum Operation Temperature:
6 serieses are available for customer to choose from
N series up to 80 degree C
M series up to 100 degree C
H series up to 120 degree C
SH series up to 150 degree C
UH series up to 180 degree C
EH series up to 200 degree C

Threaded Hole:
1, Tapped threaded holes at each end for easy installation.
2, Tapped one threaded hole at one end, and the other end is plain welded.
3, Both of ends are plain welded.

Payment Term:
T/T, L/C,  PayPal.

Package & Shipment:
1. By Express(DHL, FedEx, TNT, UPS ect): Door to door, Short Delivery time, 3-5 days.
2. By Air: Short Delivery Time, 3-7 days.
3. By Sea: Cheap Shipping Cost, 7-30 days.

High Performance NdFeB Magnetic Bar for Magnetic Filter/Separator
Package: Magnetic Isolation Package
Carton: 36*27*15CM





FAQ:
1. How to get quick quotation?
Kindly offer us the specific size, quantity, coating(zinc/nickel), magnetism direction ect
other requiries. Then best price will be offered ASAP.

2.What about the lead time?
(1) Sample: 5-7 days.
(2) Batch quantity: 7-12 days.

3.What's the MOQ?
Normally regular Size: ≥1 Piece.

4. Terms of Paymemt:
(1). T/T in advance(telegraphic transfer-bank order)
(2). Western Union cash - for small order or samples order.
(3). PayPal- for small order, quick receipt

Please feel free to contact me for any questions and requiries!
