Heat Tube Filling and Sealing Machine
- guagnzhou
- T/T
- 10 days
You May Like
Product Details
| Brand Name | 家韧 | Place of Origin | China | |
| Model Number | GZJR-F02 | Certification | FCC | |
| After-sales Service Provided | Engineers available to service machinery overseas | Weight | 500kg | |
| Dimension(L*W*H) | 1335mm*960mm*1750mm | Voltage | 220V | |
| Power | 4.8KW | Application | Other, Chemical, Medical | |
| Condition | New | Automatic Grade | Semi-Automatic | |
| Driven Type | Other, Electrical combination | Packaging Material | Wood | |
| Packaging Type | Other, tube |
Product Description
Heat tube filling and sealing machine
The hose filling and sealing machine uses a 3.3KW hot air gun to instantly heat and dissolve the inside of the hose. The super-cold water protects the outer wall of the hose from being burnt. Then the hose is glued through the splint to achieve the effect of sealing. The biggest advantage of internal heating and cold water sealing is that the production speed is faster and the hose sealing is beautiful.
Product features of Heat tube filling and sealing machine :
1. Fast production speed, up to 30-48 pcs/min
2. The speed of changing the product is fast, and it can be adjusted in 10 minutes
3. High filling accuracy and anti-drawing design
4. Beautiful tail sealing-internal heating and cold water method, which can learn from the problems of hose scalding, sealing tail perforation, and unsightly sealing
5. A variety of tail cutting methods, right-angle and arc-angle
Related parameters of Heat tube filling and sealing machine
parameter | Value |
Body | stainless steel |
Power supply | 50(60)HZ/220V |
Air pressure | 0.4-0.6Mpa |
Main motor power | 1.5KW |
Heater power | 3.3KW |
Filling range | 10-70ml,20-140ml,30-300ml |
Hose length | 80-220mm |
Hose diameter | 16-50mm |
Filling speed | 20-50 pcs/min |
Filling accuracy | ±1% |
Equipment size | 1335mm*960mm*1750mm |
Equipment operation flow chart:
Manual Intubation-Marking-Filling-Internal Heating-Sealing (with coding)-Tail Cutting-Products

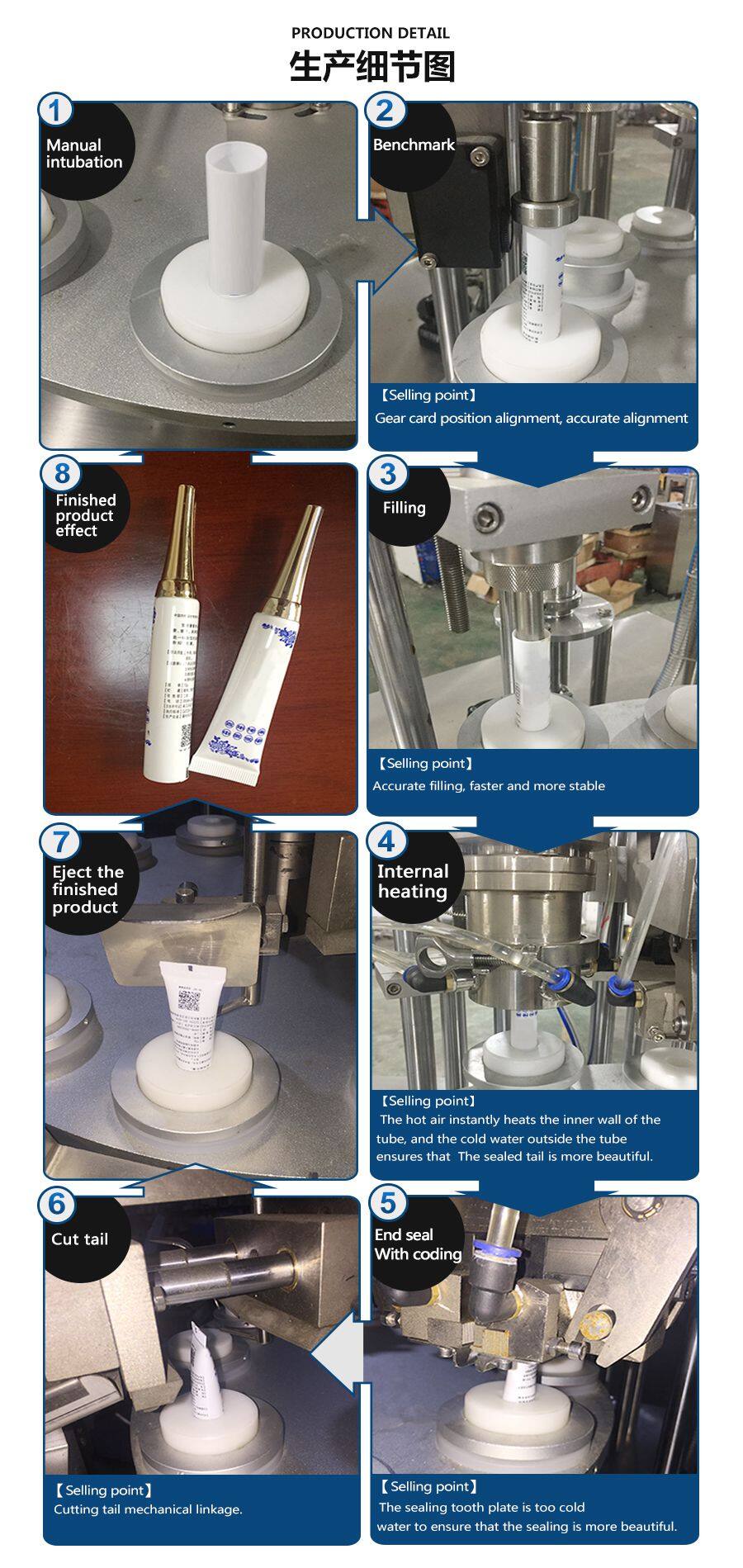

Detailed drawing of Heat tube filling and sealing machine :
Finished hose effect diagram:
Transport package drawing:
