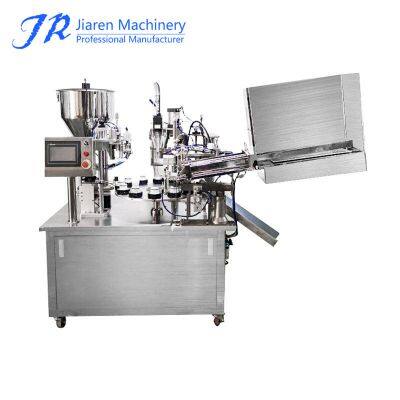

Tube filling and sealing equipment
Automatically load the tube to the turntable mold base, automatically press the tube (the tube on the mold is detected by the electric eye), automatically mark the mark (if the mark is not matched, the subsequent processes will not work), automatic filling, automatic heating (the inner wall of the tube is heated ,the outer wall is in contact with stainless steel, and the stainless steel has cooling water inside), automatic tail clamping (the splint fixing plate is cooled by cooling water to ensure that the tail is not drawn), automatic tail cutting (cuts off the excess part of the pipe tail), and the finished product is ejected (automatically driven by the cam up and down movement)
Application of tube filling and sealing equipment
The filling and sealing machine adopts closed and semi-closed filling pastes and liquids. The sealing has no leakage, and the filling weight and volume are consistent. The filling, sealing and printing can be completed at one time. It is suitable for medicine, daily chemical, food, Product packaging in chemical and other fields. Such as: filling and sealing of materials such as Piyanping, ointment, hair dye, toothpaste, shoe polish, adhesive, AB glue, epoxy glue, neoprene and other materials. It is an ideal, practical and economical filling equipment for the pharmaceutical, daily chemical, and fine chemical industries.
Product features of tube filling and sealing equipment
1) Touch screen operation, humanized design, simple and intuitive operation.
2) Cylinder filling control ensures the accuracy of filling.
3) Photoelectric sensor and pneumatic door linkage control.
4) Pneumatic execution control valve, high efficiency and safety. The runner can be independently adjusted and cleaned.
5) Adopting anti-drip and anti-drawing filling nozzle structure design.
6) The material of the whole machine is stainless steel and anodized aluminum alloy. The part connected with the material is made of SUS304 stainless steel.
tube filling and sealing equipment related parameters
parameter |
Value |
Body |
stainless steel |
Power supply |
50（60）HZ、220V |
Air pressure |
0.4-0.6Mpa |
Main motor power |
1.5KW |
Heater power |
3.3KW |
Filling range |
10-70ml，20-140ml，30-300ml |
Hose length |
80-220mm |
Hose diameter |
16-50mm |
Filling speed |
40-55 pcs/min |
Filling accuracy |
±1% |
Equipment size |
1830mm*1160mm*1850mm |
tube filling and sealing equipment operation flow chart:
Automatically load the tube to the mold - Marking - Filling -Internal Heating -Sealing (with coding) -Tail Cutting - Products

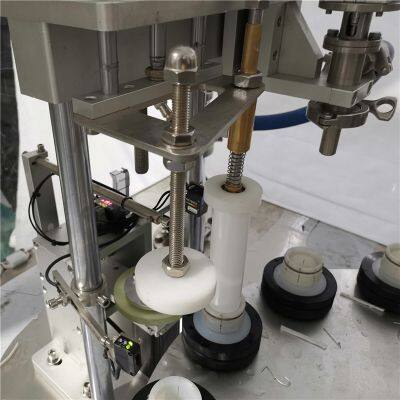

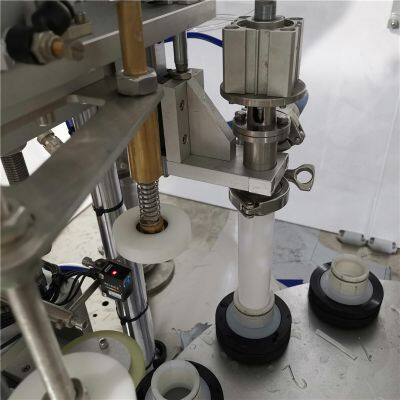

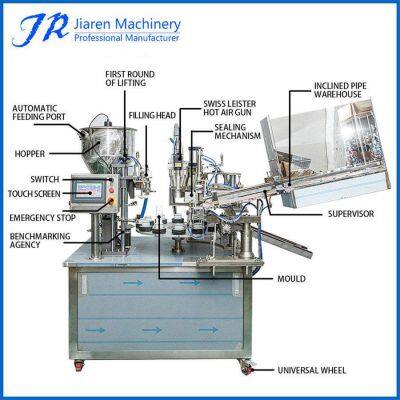

Detailed drawing of tube filling and sealing equipment:
Finished hose effect diagram:
Transport package drawing:
OUR SERVICE:
1. Professional sales team, communicate your needs in time
2. During the production of the equipment, we will regularly shoot videos to inform the corresponding progress
3. Corresponding wearing parts, English operation manual and operation video are randomly distributed
4. Professional after-sales maintenance engineers can solve your after-sales problems at any time
5. If there is a demand, we can also provide door-to-door service, but the corresponding fee shall be charged.
FAQ：
Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machine is made by ourself ,we have a professional production and processing team and after-sales team
Q: Why choose your company?
Answer: We can provide customized services according to customer requirements. We also have a professional R&D team and a quick response sales team. Strictly control every step of the quality assurance and quality control system process.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment ?
A: Payment
